Vehicle Info NeededEARL'SPART NUMBER: 361-230616

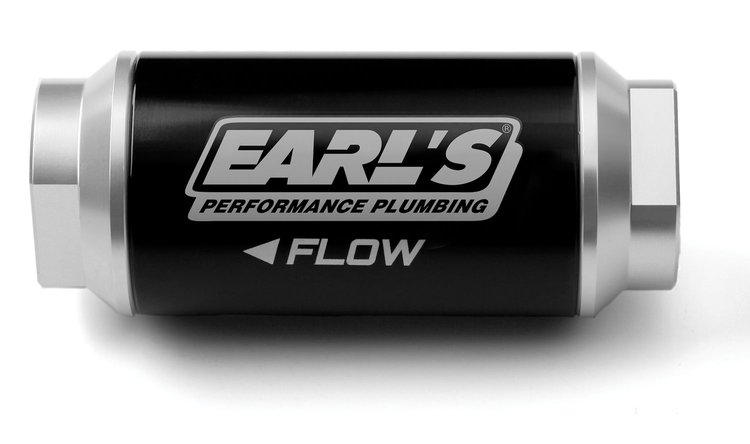

40 Micron Billet In-Line Fuel Filter
$12695
1 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeFuel Filters
- -6AN O-ring Inlet and Outlet
- 100 gph
- 1.5" Diameter x 3.5" Body Length
- Stainless Steel Woven Mesh Element
- Recommended for use as a Post Filter in Carbureted Systems
Part TypeFuel Filter
BrandEARL'S
Package Height1.7
Package Width4.2
Package Length6.7
Weight0.4 PG
Part CategoryPerformance Parts
Filter Element IncludedYes
Smallest Particle Filtered40 microns
Outlet Size-6 AN O-ring
Inlet Size-6 AN O-ring
Outlet QuantityOne
Filter Element MaterialStainless steel mesh
QuantitySold individually
Overall Length3.5 in (88.9 mm)
MaterialAluminum
Inlet AttachmentFemale Threads
Fuel Filter StyleInLine
Filter Housing MaterialAluminum
Mounting Bracket IncludedNo
Outlet AttachmentFemale Threads
Inlet/Outlet TypeSingle Inlet/Single Outlet
Filter Housing FinishBlack/Clear anodized
Fittings IncludedNo
Clamps IncludedNo
Inlet QuantityOne
Fitting Type-6AN
Part FitmentUniversal
Outside Diameter1.5 in (38.1 mm)
FinishBlack
Vendor Part Number230616ERL
Package Qty1
Package TypeEA
