Remote Mount Electric Water Pump Plumbing Kit [GM LS]
InfoVehicle Info Needed
EARL'SPART NUMBER: 361-LS0040ERL

Remote Mount Electric Water Pump Plumbing Kit [GM LS]

$67595
ShippingShips on 11/02/2026
Lowest PriceLowest Price Guarantee

GM LS
Remote Mount Electric Water Pump Plumbing Kit
  • Designed for GM LS
  • Adjustable Coolant Tubes Use (1) -16 AN Male & (2) -12 AN Connections
  • Black Anodized

    Features

    • Designed to simplify remote mount electric water pump installation and AN plumbing by eliminating Tee, Y, and hose end fittings
    • Coolant tubes are adjustable from 6.800 to 10.500 in. from centerline to centerline of the -12 AN ports
    • Overall Length: 9.800 to 13.500 in.
    • Block adapters have a 1/8 in. NPT port for adapting steam tube
    • Coolant tubes and block adapters are constructed from 6061 billet aluminum with a black anodized finish

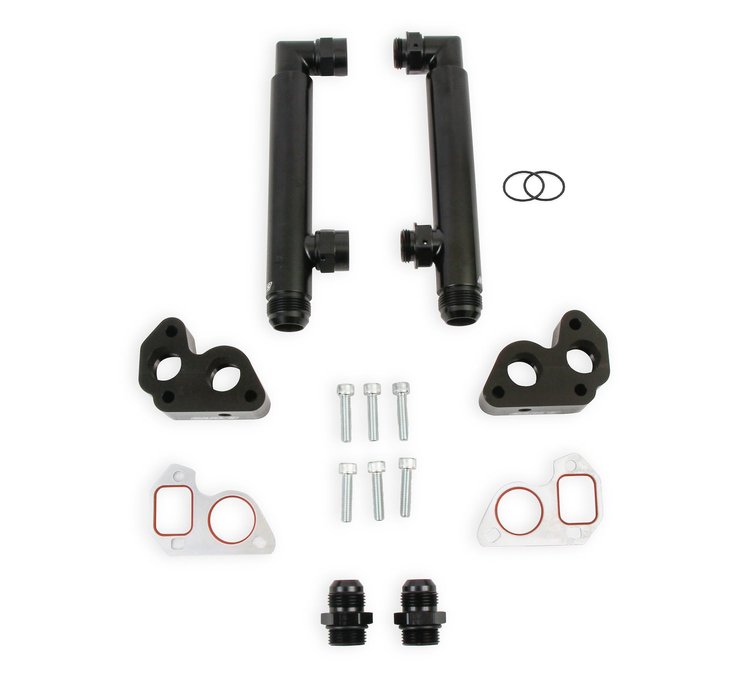

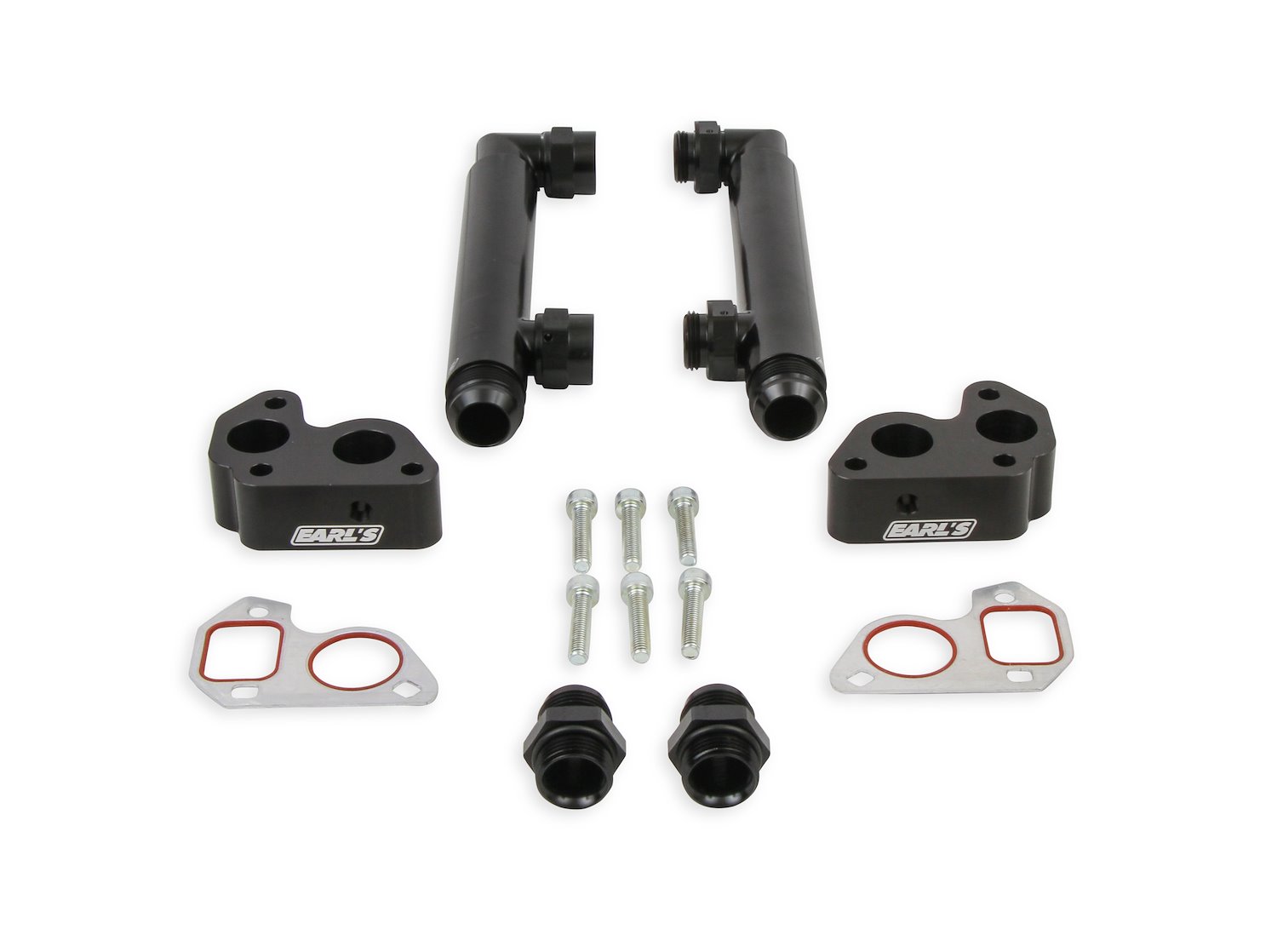

    • Includes (2) Adjustable Cross-Over Tubes, -12 AN Block Adapter Plates w/ Gaskets, (2) Fittings & Hardware

      • Easily Plumb Remote Electric Water Pumps

      Earl's Adjustable Coolant Cross-Over is designed to avoid the headache of plumbing additional Tee, Y-block, and hose end fittings. These water pump cross-over tubes are manufactured using premium billet aluminum with O-ring seals.

    Part TypeWater Pump Adapter
    Product LineEarl's Adjustable Coolant Cross-Over
    BrandEARL'S
    Package Height6.0
    Package Width6.0
    Package Length16.0
    Weight2.2 PG
    Part CategoryPerformance Parts
    Water Pump Adapter Block Material6061 Aluminum
    QuantitySold as a kit
    Fitting Attachment 1Male AN
    Part FitmentSemi Universal
    Water Pump Adapter Block FinishBlack anodized
    Fitting Size 1-16 AN
    Vendor Part NumberLS0040ERL
    Package Qty1
    Package TypeEA
