Eastwood 20521 Features:

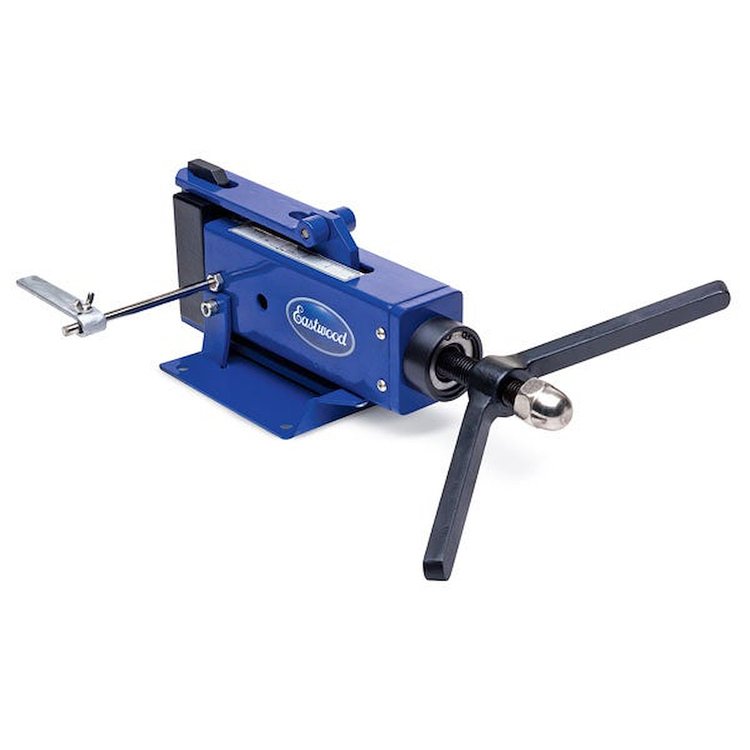

Eastwood Benchtop Metal Bender The Eastwood 4-Inch Metal Bender is a compact but strong steel bender that is capable of completing precise bends up to 3/8-inch thick mild steel. Its an affordable metal forming tool that fits on any workbench with easy hand-crank operation. Save space and time when bending suspension brackets or seat mounts for your project. Others use our medium-duty metal bender for patch panels or ornament artwork. To make custom parts, simply mount the compact bender on a work surface with four bolts and start bending your desired material. Theres no need for a full-size hydraulic press that takes up a large amount of space in your shop when you can achieve the same results with a metal brake thats a fraction of the size. The Eastwood 4 Metal Bender is a high-quality industrial-style tool capable of generating a powerful 2.5 tons of pressing force. The Eastwood 4 Inch Metal Bender

Features:

• Powerful 2-1/2 tons of pressing force Create up to 90 degree bends Generates 2.5 tons of pressing force Bends mild steel and aluminum up to 3/8 in. thick and 4 in. wide Simply mount the bend on a work surface and start bending your desired material. No need for a full size hydraulic press that takes up a large amount of space in your shop. Save space and time when bending suspension brackets or seat mounts for your project. Use your metal bender board to create 90-degree or lesser repeatable bends in mild steel and aluminum up to 4 wide. On 1/8-inch thick steel, you can increase the bend to 125 degrees. The maximum metal thickness varies depending on how wide the steel plate is; consult the chart below before getting started. Shop at Eastwood for professional-quality metal forming tools that cost less than comparable equipment from leading brands. We provide free technical support by phone, email or the Eastwood Garage.
  • Maximum Jaw Travel: 2-1/2”
  • Minimum Bend Radius: 1/4”
  • NOTE: For mild steel only.
  • High carbon steel and stainless steel allowable thickness will be less while aluminum thickness will be higher.
  • Maximum Bend Angle: 90°
  • Average Maximum Expected Material Bending Capability:
  • Material thicknesses shown are for mild steel only.
  • High carbon steel and stainless steel thickness will be less while aluminum thickness will be higher.
  • 3/4” wide, max. 3/8” thick
  • 2” wide, max. 1/4” thick
  • 4” wide, max. 3/16” thick
