Eastwood 20665 Features:

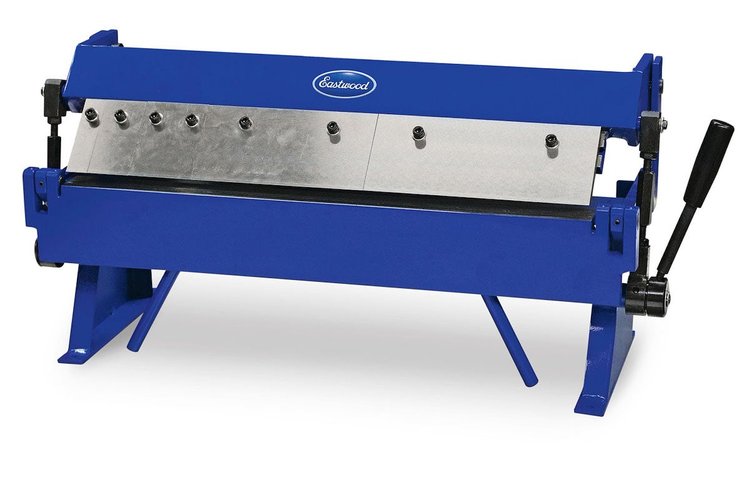

The Eastwood 24 Inch Box and Pan Sheet Metal Brake is the perfect size for a small shop or home use. The Eastwood 24 Inch Box and Pan Sheet Metal Brake

Features:

• Bends sheet metal up to 24 in. Use on up to 20 gauge steel or 16 gauge aluminum Makes bends up to 135 degrees Removable fingers to create pans or boxes Perfect size for small shop The Eastwood 24 inch Box and Pan Brake is a precision engineered metal working tool designed to produce accurate, variable length bends in angles up to 135° in mild, 20 gauge sheet steel and 18 gauge aluminum in widths up 24. Create complex shapes such as floor reinforcement channels and ribs, sections of corrugated pickup bed floors; truck bedside panels, inner fender structures and much more, all with one convenient bench-mounted tool.
  • Metal Width: Bends up to 24"
  • Metal Gauge: Up to 20 gauge steel or 16 gauge aluminum
  • Bend Angles: Up to 135 degrees
  • Removable Fingers:
  • (1) 1 x 1 inch
  • (1) 1 x 2 inch
  • (1) 1 x 3 inch
  • (1) 1 x 8 inch
  • (1) 1 x 10 inch
  • Mounting Area Dimensions: 26” x 10.75”
  • Overall Dimensions: 28.5” wide x 10.75” deep x 14.25” tall
  • Weight: 94.6 lbs
