Eastwood 21487 Features:

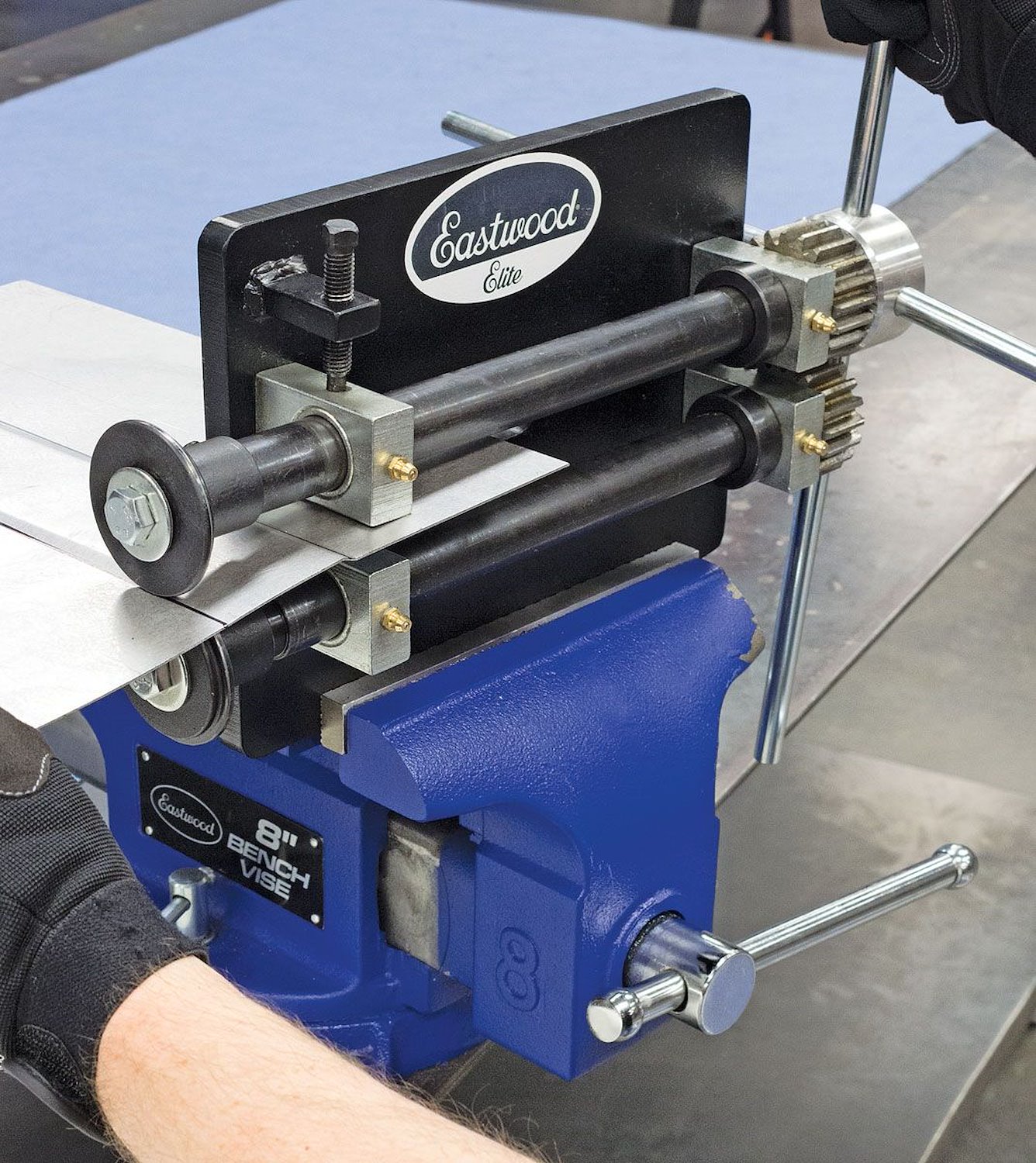

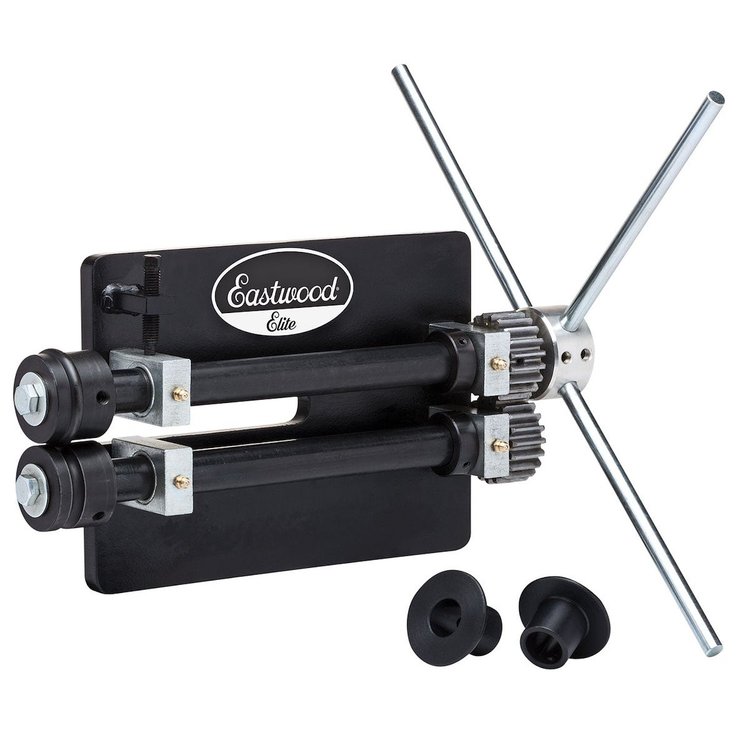

Heavy-Duty Rollers for Metal Fabrication This Elite bench vise bead roller from Eastwood is an affordable way to bend and crease metal panels in a solo shop. Our 8-inch Crank Bead Roller forms strengthening ribs and channels in steel, stainless and aluminum sheets. Its also a great method for creating flanges and curves or shaping edges. Since the tool is secured by your vise (sold separately), youll have one hand free to turn the four-spoke crank and the other to guide the metal. Add the Bead Roller Drive System to transform it into a motorized roller. Each compact manual bead roller comes with a 3/8-inch bead die set and offset die set, which are the most common for automotive projects. Other forming dies and accessories are available separately. It reaches to the center of any panel up to 16 inches for making floor pans and patch panels or reinforcing existing parts. The Eastwood Garage is full of helpful videos and articles about how to use your bead roller. It has a one-year warrant and no-hassle returns so you can Do the Job Right. Eastwood Elite 8 in. Heavy Duty Bead Roller

Features:

• 8 in. throat depth Handles up to a 16 in. wide panel Form 18 gauge steel, 20 gauge stainless, 16 gauge aluminum Industry standard 22mm shafts Gear-driven design delivers maximum forming power Includes 3/8 in. Bead Die Set and Offset Die Set 1 Year Warranty One Man Operation With the 4-spoke crank handle and the smaller size of this heavy-duty bead roller, it only takes one person to easily operate and form panels. The unit attaches to a bench vise which holds it fast as you work. And it is still big enough to make small floor pans and other commonly fabricated parts without any outside help needed. The roller can handle 20 gauge stainless steel, 18 gauge mild steel and 16 gauge aluminum, which covers what is used in most vintage and modern vehicle panels. Includes most popular die sets This bead roller includes the popular 3/8-inch Bead Die Set and Offset Die Set that you will need in most of your fabricating projects. These are the two most common sets that are used for auto restoration and bodywork. With the industry-standard 22mm shafts you will be able to use most other die sets available like the optional Eastwood Bead Roller Metal Fabrication Forming Dies. Switching dies is simple and you can be confident they will make strong, reliable beads.
  • Maximum material working thickness:
  • Steel: 18 Gauge
  • Aluminum: 16 Gauge
  • Stainless: 20 Gauge
  • Maximum panel width (working from center): 16”
  • Weight: 28.7 lbs.
  • Heavy-Duty Rollers for Metal Fabrication:
  • Eastwood Elite 8-Inch Heavy-Duty Bead Roller produces strengthening ribs in panels, shapes edges, and forms intricate designs independently.
  • Capable of creating channels and flanges with included offset flange dies.
  • Gear-driven design offers maximum forming power and leverage with minimal handle force for accuracy.
  • 8-inch throat depth allows access to the center of a 16-inch panel; capable of handling larger panels for edge curves.
  • Eastwood Elite 8" Heavy Duty Bead Roller Features:
  • 8" throat depth
  • Handles up to a 16" wide panel
  • Industry-standard 22mm shafts
  • Gear-driven design for maximum forming power
  • Includes 3/8" Bead Die Set and Offset Die Set
  • One-Man Operation:
  • Operable by one person using a 4-spoke crank handle; attaches to a bench vise for stability.
  • Suitable for making small floor pans and other commonly fabricated parts independently.
  • Handles 20 gauge stainless steel, 18 gauge mild steel, and 16 gauge aluminum, applicable to most vintage and modern vehicle panels.
  • Includes most popular die sets:
  • Comes with popular 3/8-inch Bead Die Set and Offset Die Set for fabricating projects.
  • Compatible with industry-standard 22mm shafts, allowing use of other die sets like Eastwood Bead Roller Metal Fabrication Forming Dies.
  • Simple die switching with reliable, strong beads.
