Eastwood 32498 Features:

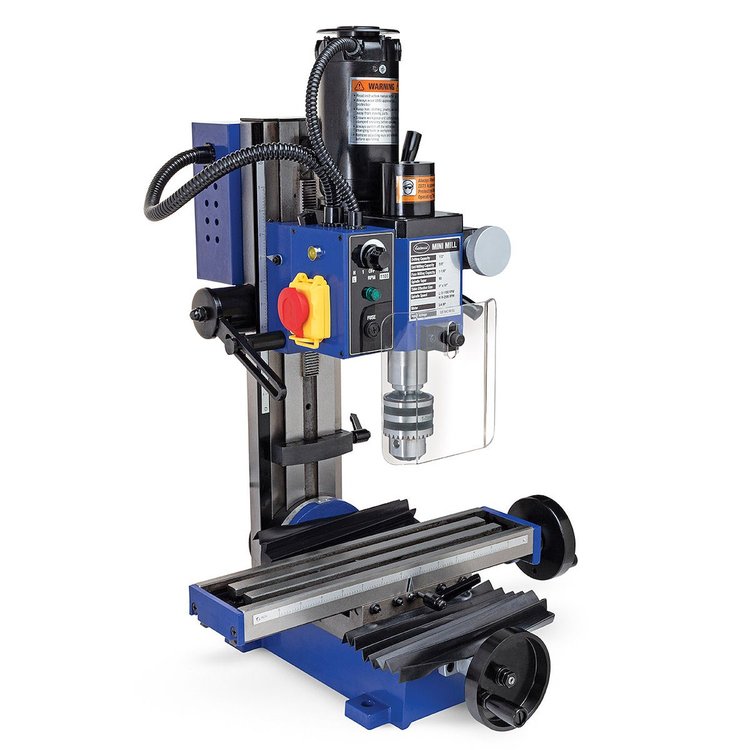

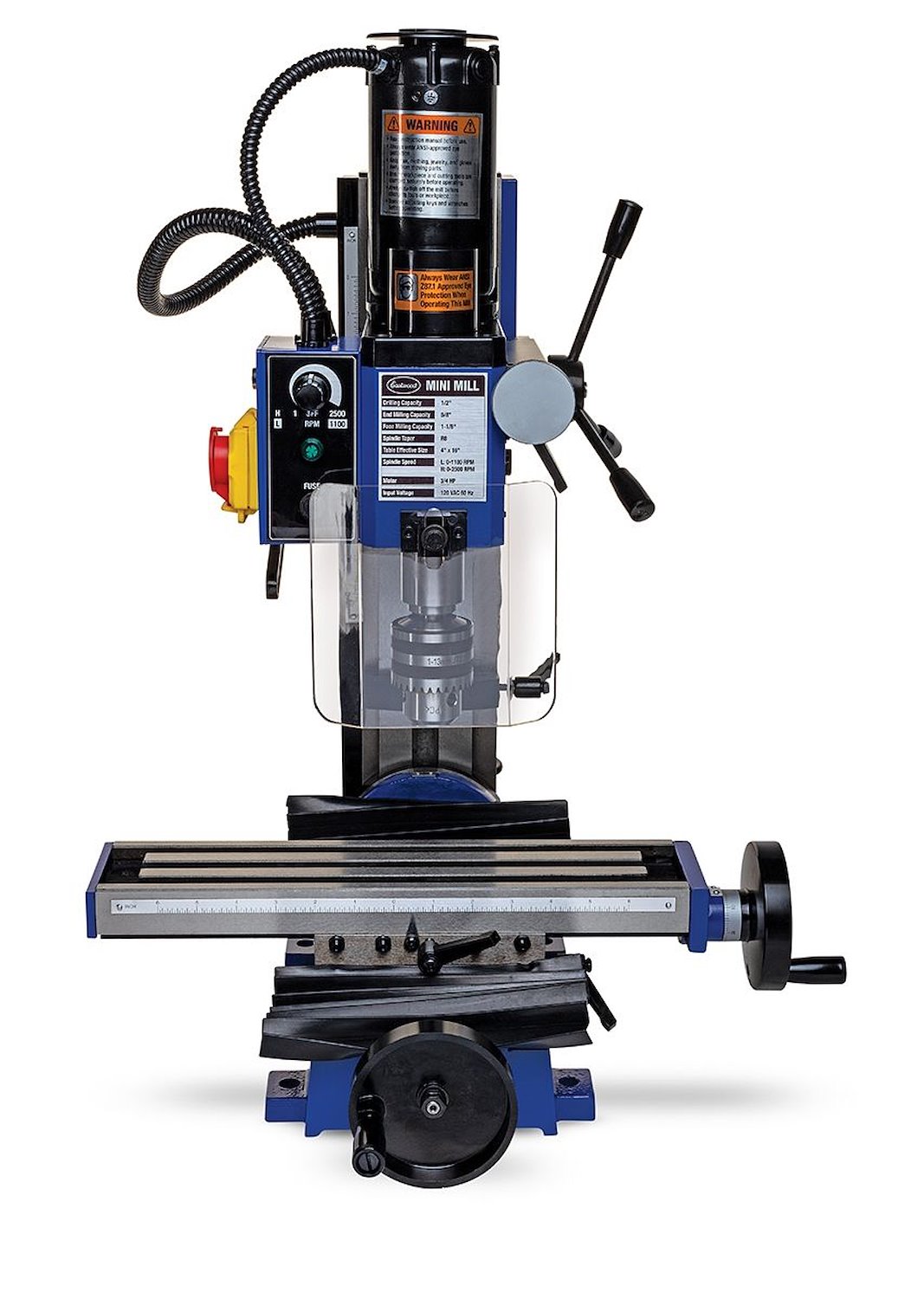

With The Eastwood 4 in. X 16 in. Mini Mill You will be able to accomplish projects that simply are not possible without a milling machine. Now you can accurately Slot, Drill, Chamfer, Bevel, Face and Plunge Cut with this one machine. The tilting column allows for accurate angle work to be done and the Large R8 Taper accommodates common tooling. We've even included an 3/8 in. Collet and end mill so you can begin machining right out of the box!

Features:

• Home workshop-friendly size Accurately, Slot, Drill, Chamfer, Bevel, Face and plunge cut Tilting column allows for accurate angle work Large R8 Taper accommodates common tooling 0-2500 RPM Motor Control with a 2 Speed gearbox The Eastwood 4 X 16 Mini Mill is a highly capable machine able to perform as a Drill Press with up to 1/2 [13mm] drill shank capacity and as a fully functional manual Milling Machine with up to 5/8 end mill capacity (3/8 included). The 2 axis Table, along with a 45° left or right tilting column design, allows drilling or milling virtually any surface. A 0-2500 RPM Motor Control with a 2 Speed gearbox provides the versatility to accommodate most materials. The standard R8 Taper arbor will accept a wide variety of Collets, Drills and other accessories.
  • Spindle Travel: 5 inches
  • Swing: 12-3/4 inches
  • Longitudinal Table Travel: 7-5/16 inches
  • Cross Table Travel: 4 inches
  • Head Travel: 7-1/2 inches
  • Head Tilt: Left and Right 45 degrees
  • Maximum Distance Spindle to Column: 6-3/8 inches
  • Maximum Distance Spindle to Table: 11-1/2 inches
  • Drilling Capacity for Steel: 5/8 inch
  • Range of Vertical Spindle Speeds: 0 – 1100, 0 – 2500 RPM
  • Quill Dial: 1.580 inch
  • Table Length: 15-3/4 inches
  • Table Width: 3-5/8 inches
  • Number Of T Slots: 3
  • T Slots Width: 0.465 inch
  • T Slots Height: 5/8 inch
  • T Slots Centers: 1-1/8 inches
  • Stud Size: 5/8 inch
  • Spindle Taper: R8
  • End Milling Capacity: 1/2 inch
  • Face Milling Capacity: 1-1/8 inches
  • Draw Bar Diameter: 12 mm
  • Draw Bar TPI: 7/16 inch x 20
  • Draw Bar Length: 4 inches
  • Spindle Bearings: Permanently Sealed Ball Bearings
