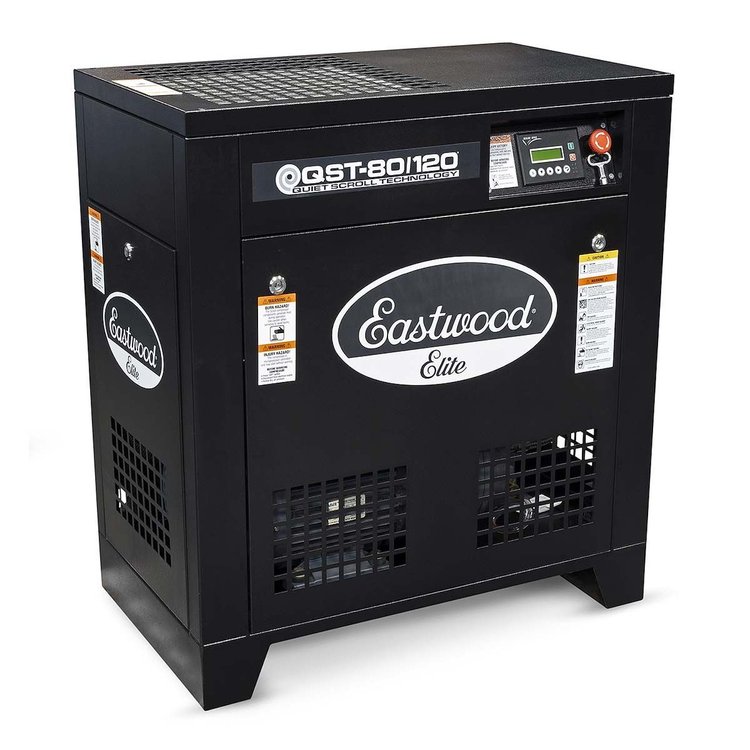

Eastwood 32500 Features:

Eastwood ELITE QST 80/120 Scroll Compressor Own your own business?? Meet your new silent partner. Innovative - Direct Drive Cast Iron Scroll Pump Integrated Air Cooler - Multi-stage oil filtration system Low Noise Level - Quiet Scroll Technology and only emits 62DB +/- 3Bd Powerful - 11 HP Motor delivers 31.8 SCFM @ 90 PSI Air Output Dependability - 100,000 hour pump life, with 100% Duty cycle 3-year warranty This compressor must be used with a minimum of a 60 gallon air tank. We suggest pairing it with our 32501 Eastwood 80 Gallon Receiver Tank to make a powerful combination to keep your business humming. in.The shop is quiet and it fills so fast. in. - Mike Phillips - Phillips Hot Rod & Custom Delivers More Power for less the cost of other air compressors Our Elite 80/120 Scroll Compressor is ideal for the professional automotive repair and body shops . With its dependable, long-lasting construction and affordable price compared to other big brands, our R&D guys have crafted the ideal compressed air source. Read more about the advantages of scroll compressors below or call our experts. We back them with a three-year warranty and 60-day money-back guarantee so you can Do the Job Right. Quiet Technology As low as 62DB +/- 3Bd* at 1 meter - No louder than a typical conversation! Comparable in noise to your home A/C unit Quieter than your air tools *Using standard sound level testing conditions. Results may vary based on compressor location and environment. Professional-level automotive shops will get the compressed air they need from a unit made to Do the Job Right. The QST-80/120 is our most powerful yet quietest shop compressor yet. The innovative scroll technology performs like a 120-gallon compressor at a noise level of approximately 62 decibels, which is equivalent to a normal conversation or common household appliances such as air conditioners and dishwashers. Youll no longer need to shout or use earplugs every time you fire up the compressor ” just connect your tools and get to work. With nearly 32 CFM of air output at 90 PSI, the Eastwood QST Industrial Air Compressor can run several tools at once without a drop of sweat. It has an advanced air cooling and oil filtration system to maximize quality. This is one of the most dependable shop compressors ever, too. You never have to give it a break mid-project, and the pump life averages 100,000 hours. Note an external air tank is required ” we recommend our 80-Gallon Auxiliary Compressor Tank. Visit the Eastwood Garage to learn more about the advantages of quiet scroll air comp

• Eastwood Elite QST® 80/120 Scroll Compressor
• Output: 31.8 SCFM
• 100% duty cycle
• Developed with Quiet Scroll Technology
• Noise level: 62DB +/
• 3Bd (results may vary based on location and environment)
• Power Requirements:
• Voltage: 208-240V
• Frequency: 60Hz
• Amperage: 29.8-amp
• Motor Horsepower: 11 HP
• Motor RPM: 3516
• Sound Reading:
• At 10 ft. (1m): 62 +/
• 3 db
• Air Output:
• 31.8 SCFM @ 90 PSI (900 l/min. @ 6.2 bar)
• Tank Requirements:
• Requires External Air Tank: Yes
• Pressure Specifications:
• Cut-in Pressure: 115 PSI (8 bar)
• Cut-out Pressure: 145 PSI (10 bar)
• Maximum Pressure: 145 PSI (10 bar)
• Pressure Relief Valve Setting: 160 PSI (11 bar)
• Oil Capacity:
• 74 oz. (2.2 liter)
• Dimensions:
• Length: 33" (840mm)
• Width: 19-3/4" (500mm)
• Height: 36-5/8" (930mm)
• Weight:
• 452 lbs. (205kg)
• Additional Information:
• Learn more about how scroll compressors work and their efficiency on the Air Compressors page.
