Eastwood 33920 Features:

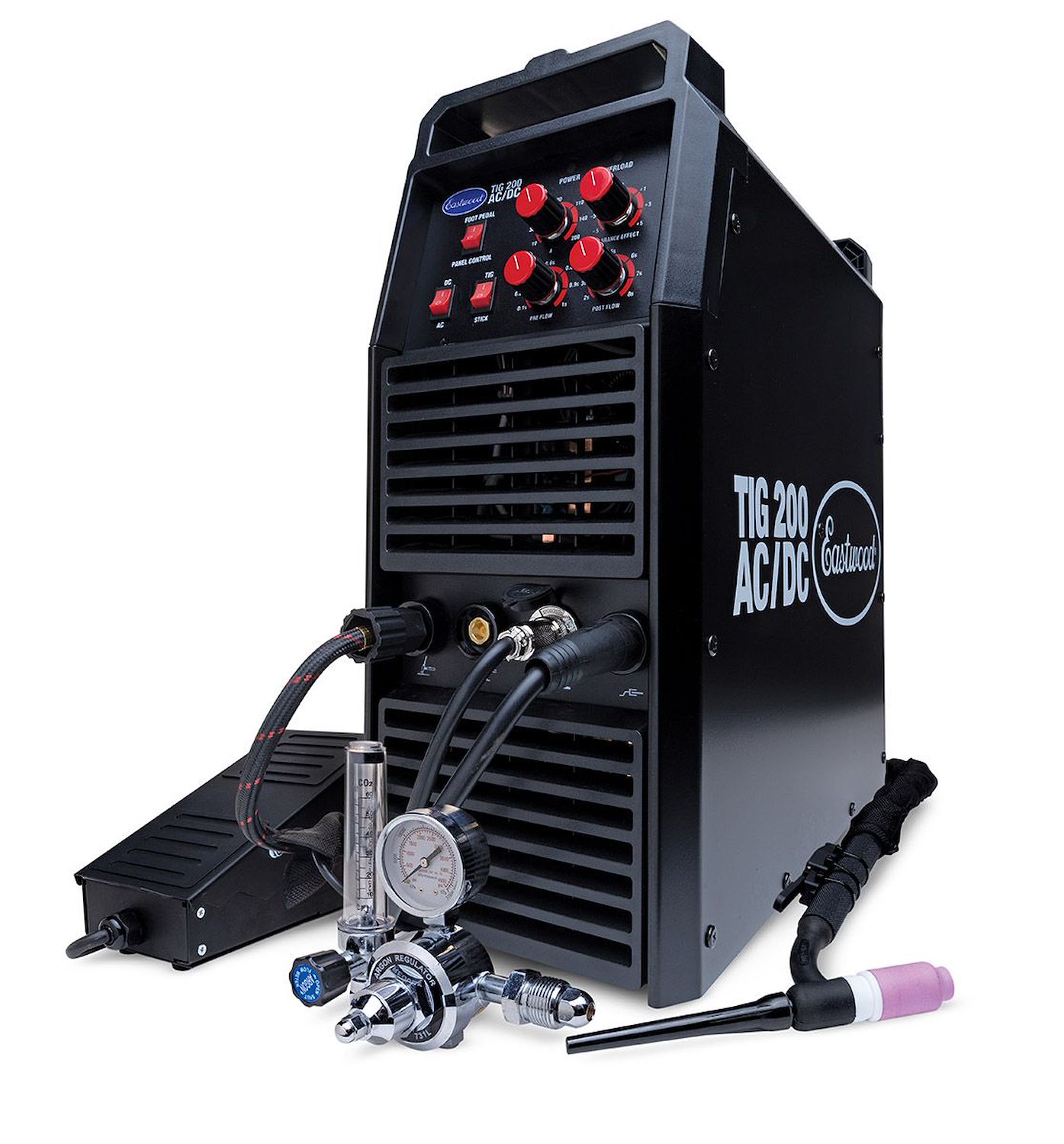

When you're serious about your TIG welds on steel, stainless steel, or aluminum, count on the Eastwood TIG 200 AC/DC to get you through your toughest projects. It's packed with quality features for maximum functionality and uses the latest technologies for performance you can count on. It starts with dual power cords that plug into either a 120V or 240V outlet, letting you use this 200-Amp welder almost anywhere. Its high-frequency start delivers precise arc control to prevent tungsten contamination and it features square-wave inverter to accurate weld aluminum in addition to both mild and stainless steel up to 1/4-in. thick. A flex-head WP-17 torch is included for maximum versatility along with a ceramic gas lens kit, a comfortable rocker-style foot pedal, and a flowmeter. An easy-to-read control panel gives you full command of the settings you need without confusing features you wont use. Can also stick weld with addition of electrode holder (Eastwood Item # 20517). With a 60% duty cycle, the TIG 200 AC/DC is a workhorse that keeps you welding until the job is finished. And its all backed up by Eastwoods 3-year warranty and lifetime tech support. Eastwood TIG 200 AC/DC

Features:

• Welds mild steel, stainless steel, and aluminum up to ¼-in thickVersatile dual-power TIG welder runs on either 120V or 240VSquare-wave inverter for accurate aluminum weldingHigh-frequency start ensures instant arc strike with no tungsten contaminationRemote foot pedal infinitely controls amperage for precisionIncluded flex-head WP-17 torch accepts commonly available consumablesFlow meter gauge for precise gas flow control and quick, repeatable adjustmentCan also stick weld in AC or DC +/- mode (requires additional electrode holder)60% duty cycle at 190 amps (100% at 143 amps)Backed by Eastwood's no-hassle return policy and 3-year warranty
  • Input Voltage: Single-Phase 120vAC or 240vAC @ 50-60Hz
  • Power Cord Receptacle Plug: NEMA 6-50P
  • Input Current TIG:
  • 240v: 23.8 amps
  • 120v: 20.0 amps
  • Input Current Stick:
  • 240v: 36.2 amps
  • 120v: 19.2 amps
  • Output Current Adjustment TIG:
  • 240v: 10-190 amps
  • 120v: 10-145 amps
  • Output Current Adjustment Stick:
  • 240v: 10-185 amps
  • 120v: 10-140 amps
  • Input Voltage TIG:
  • 240v: 10.4v – 17.6v
  • 120v: 10.4v – 15.8v
  • Input Voltage Stick:
  • 240v: 20.4v – 27.4v
  • 120v: 20.4v – 25.6v
  • Starting Method: High Frequency TIG Welding
  • AC Duty Cycle (%):
  • 240v: 60% at 190 amps and 100% at 143 amps
  • 120v: 60% at 100 amps and 100% at 77 amps
  • STICK Welding Duty Cycle (%):
  • 240v: 60% at 185 amps and 100% at 143 amps
  • 120v: 60% at 60 amps and 100% at 46 amps
  • Post Gas Flow: 2-8 sec.
  • Pre Gas Flow: 0.1-1.0 sec.
  • Remote Foot Pedal And Control: Yes
  • Torch Control: Finger on/off control/Variable foot pedal
  • Cooling Method: Fan
  • Overall Dimensions: 17.8-in. x 8.4-in. x 20.20-in.
  • Weight: 38 lbs.
  • Duty Cycle: The Rated Duty Cycle refers to the amount of welding that can be done within an amount of time.
  • Eastwood TIG 200 Duty Cycle: 60% at 190 Amps.
  • Welding Time Block: 10 Minutes
  • At 190 Amps with a 60% Duty Cycle: Weld for 6 Minutes, cool for 4 Minutes.
  • Increase Duty Cycle: Turn down the Amperage Output control.
  • Going above 190 Amps yields a lower duty cycle.
