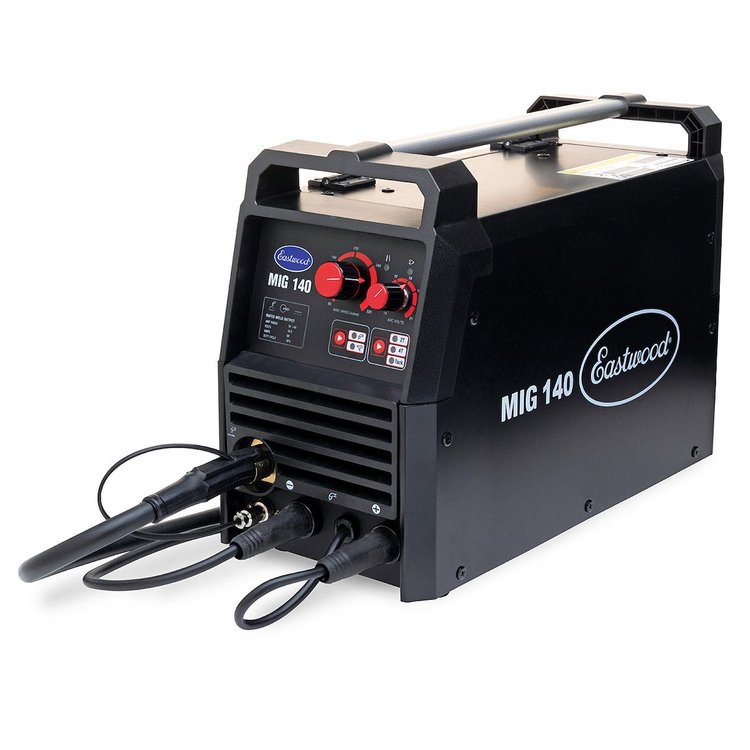

Eastwood 33970 Features:

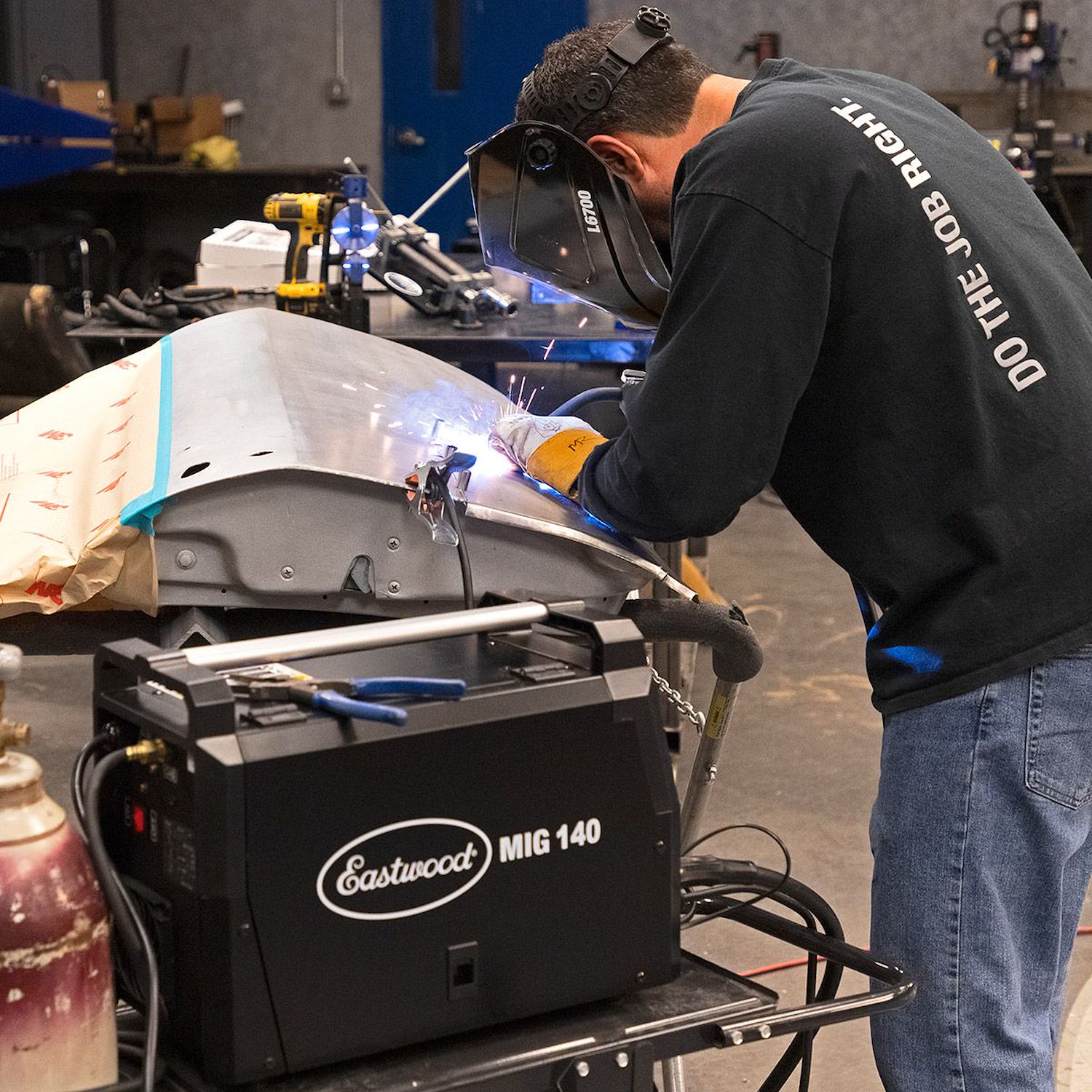

Packed with the latest IGBT inverter technology and quality features, the Eastwood MIG 140 delivers precision welds on sheet metal and other light steel and stainless steel projects up to 3/16-in. thick. This versatile 140-Amp welder runs on conventional 120V household power (or by generator) and weighs less than 25-lbs for go-anywhere portability. Experienced welders as well as beginners will appreciate the MIG 140s Smart Wire Feed feature that ramps up wire speed at the beginning of the weld to prevent excess material. Its metal drive motor ensures smooth operation. A tack-weld setting allows for perfectly timed short pulses, perfect for plug welds and spot welds. It also includes 2T and 4T controls for greater precision and comfort, especially for long welds. The MIG 140 includes a Tweco-style torch that uses commonly available consumables. It doubles as a flux-core welder for gas-free welding and can also weld aluminum with the addition of an optional spool gun (Eastwood Item # 20172). With all these great features, the MIG 140 matches the overall performance of more expensive welders. And its all backed up by Eastwoods 3-year warranty and lifetime tech support. Eastwood MIG 140

Features:

• Feature-packed yet easy-to-use welder for light metalLatest IGBT inverter technology makes it lightweight and preciseSmart Wire Feed feature prevents excessive wire at the start of the weld Tack setting delivers precisely timed tack welds to prevent overheating 2T & 4T settings offer greater precision and comfortTweco-style torch uses commonly available consumables for convenienceOptional spool gun allows for welding aluminumOperates on standard 120V household or generator power30% duty cycle at 90 amps (60% at 65 amps)Backed by Eastwood's no-hassle return policy and 3-year warranty
  • Rated Electrical Input: 120 VAC; 24 AMP
  • Required Breaker Size: 20 amp
  • Power Voltage: 1 Phase, 120VAC, 50/60 Hz
  • Power Cord Receptacle Plug: NEMA 5-15P
  • Max Voltage at No Load: 56 V DC
  • Rated Duty Cycle:
  • 120V: 30% @ 90 Amps
  • 120V: 60% @ 65 Amps
  • 120V: 100% @ 50 Amps
  • Torch Consumables: Tweco style nozzle and contact tips
  • Wire Feed Rate (IPM/Inches Per Minute): 120V: 80
  • 314 IPM
  • Wire Sizes:
  • 0.023-in. (0.6mm) – 0.035-in. (0.9mm) MIG wire
  • 0.030-in. (0.8mm) – 0.035-in. (0.9mm) flux core wire
  • Welding Wire Spool: 4-in. and 8-in. spool, up to 11 lbs
  • Maximum Welding Thickness
  • Steel: 3/16-in.
  • Output Current Range: 120V: 30
  • 140 Amps
  • Weight: 24.15 lbs (11 kg)
  • Overall Dimensions: 18-in. X 8.5-in. X 13.25-in.
