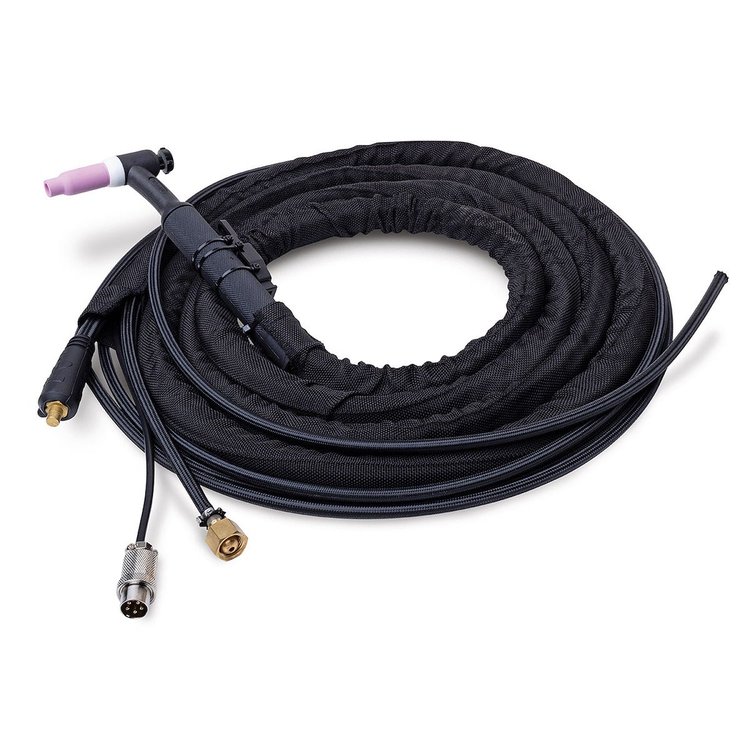

Eastwood 55253 Features:

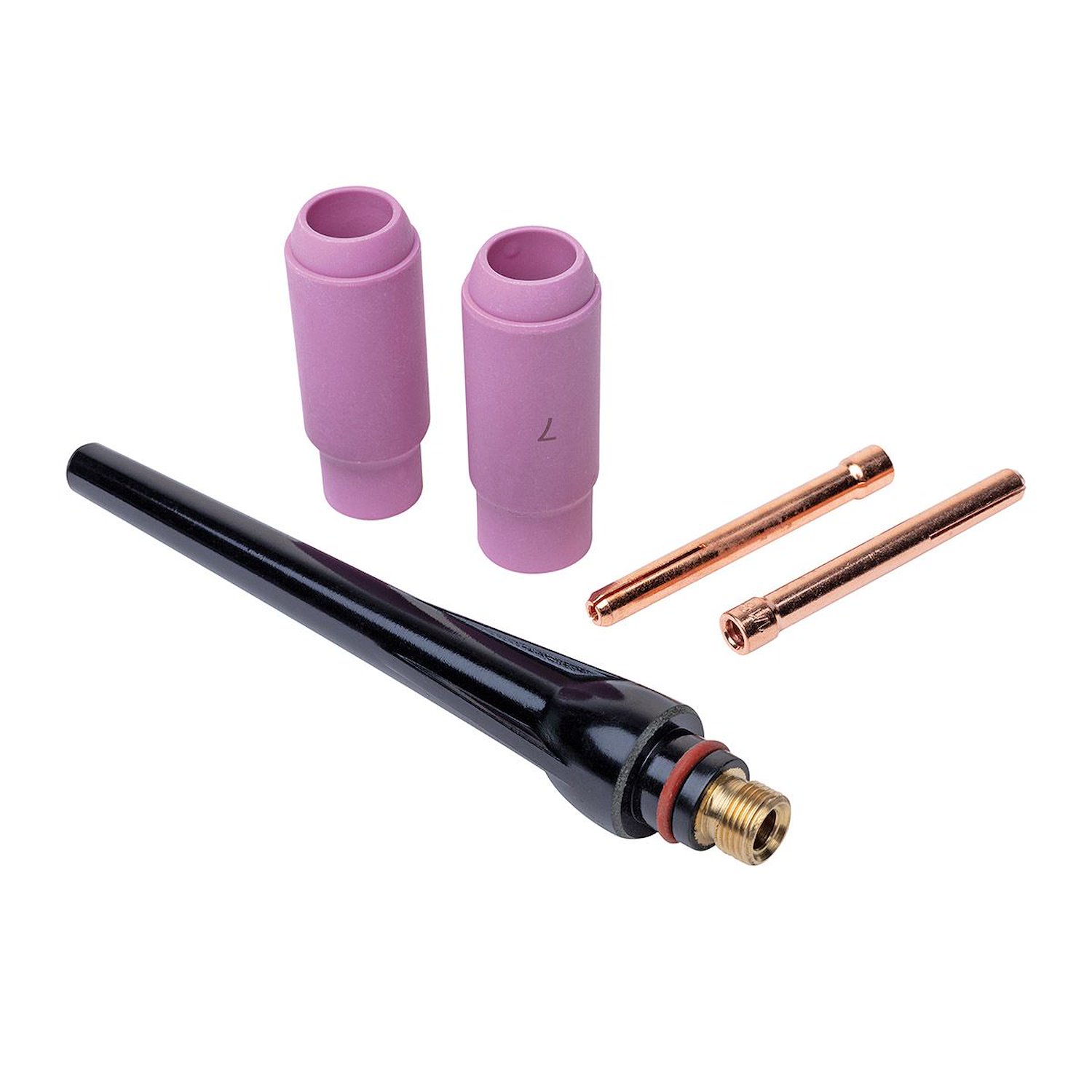

Improve Performance and Combine this WP18F Torch with the Elite TIG Water Cooler (55252) Long 12' Cable and Torch Flex Head Torch to get into the perfect position in tight spaces Includes #5 Gas Lens, 3/32 in. Collet, Collet Body and Black Cap (Installed) Includes #6 and #7 Gas Lens and a 1/16 in. and 5/64 in. Collet Use with the Eastwood Elite TIG Welding Torch Water Cooler System for best performance (55252) Compatible with the Following Welders Eastwood TIG 200 AC/DC, Model 20565 Eastwood TIG 200 AC/DC, Model 33920 Eastwood TIG 200 DC, Model 20566 Eastwood TIG 200 Digital, Model 20589 Other brands that utilize a 10-25 Dinse Connection and M16X 1.5 TIG Torch Connection NOT COMPATIBLE with the Eastwood TIG 200 AC/DC manufactured before 2016 that did not have the dinse connector next to the TIG torch connection. Please contact Customer Service if you are unsure.

• Torch Model: WP-18F with Flex Head
• Power Lead Connection: Dinse 10-25
• Shielding Gas Connection: M16 x 1.5 TIG Torch Fitting
• Gas Line/Torch Switch Length: 12.5’ (3.80m)
• Cable/Return Coolant Hose Combination Length: 12.5’ (3.80m)
• External Return Coolant Hose Length: 8.2’ (2.50m)
• Inlet Coolant Hose Length: 17’ (5.20m)
• Coolant Hose Construction: Grey Silicone, Ø5mm Inside Diameter, Braided Sleeving
• Maximum Welding Amperage: 350A
