Eastwood 58221 Features:

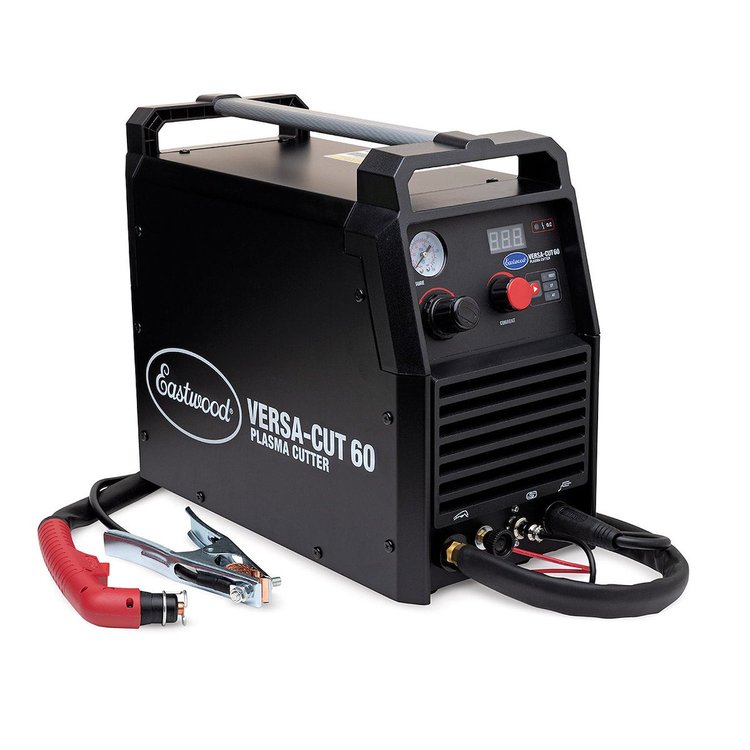

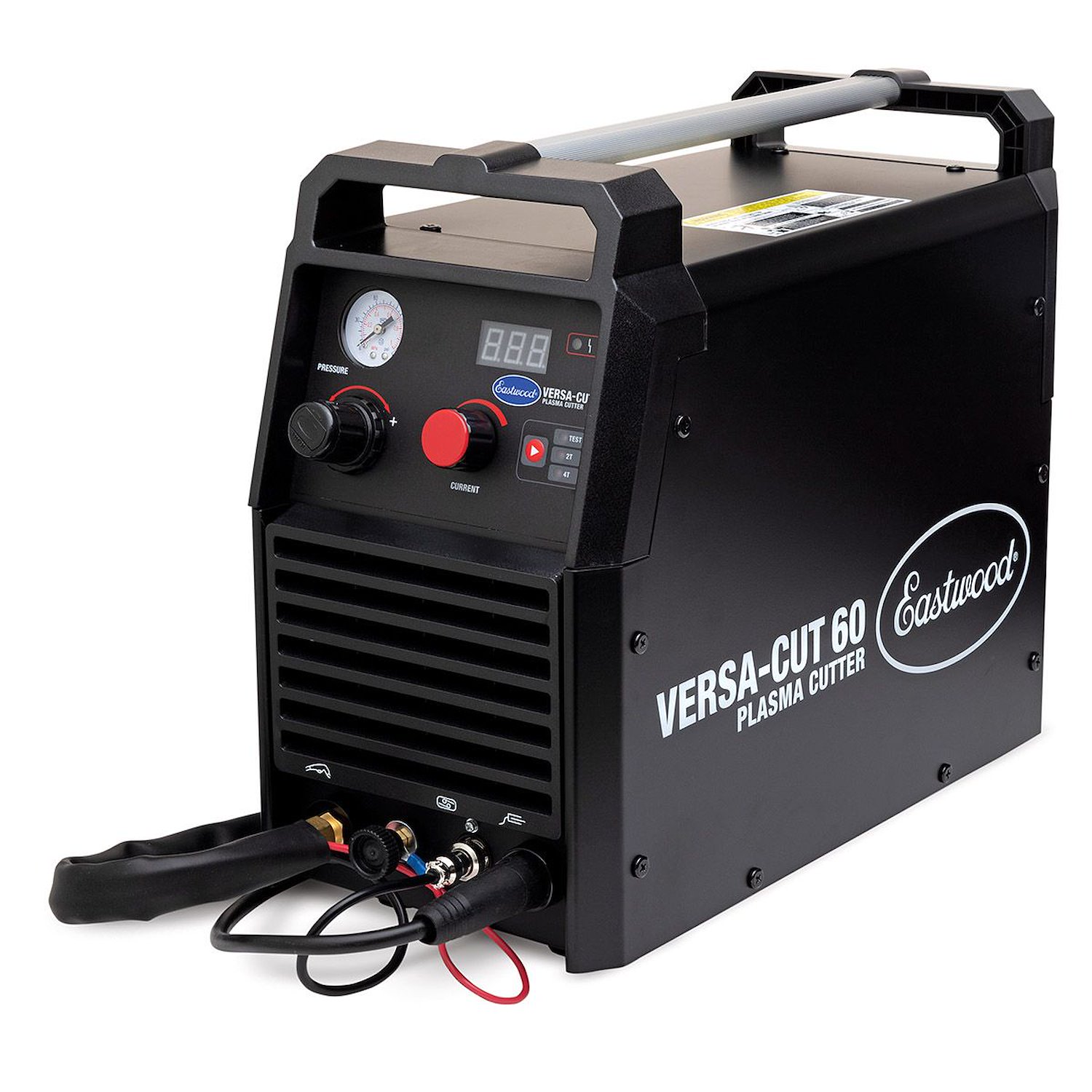

Enjoy professional cutting power on a wide range of metal fabrication projects with the Eastwood Versa-Cut 60 plasma cutter. This portable plasma cutter has an adjustable output up to 60 Amps to cleanly slice through steel from as thin as 24-gauge to as thick as 7/8-in. thick. You can use it on stainless steel and aluminum, too. The Versa-Cut 60 weighs just 31-lbs, requires only 5-7 CFM of compressed air, and can plug into a 120V or 240V power input, making it an exceptionally versatile and portable unit that you can take anywhere its needed. The included Trafimet CB70 torch has a long 20-ft. cable for maximum maneuverability as you work. It also uses common-style consumables that are available from most local welding supply shops. A 60% duty cycle gives you plenty of up-time to complete long cuts. The Versa-Cut 60 uses modern IGBT inverter technology and features 2T/4T modes for smoother long cuts, a breaker switch, and a digital amperage readout for precision. Its pilot arc feature delvers an instant arc when cutting difficult materials like rusted steel or expanded metal. And its all backed up by Eastwoods 3-year warranty, hassle-free 90-day return policy, and lifetime tech support. **Due to its high-frequency start feature, we do not recommend using this machine on a CNC plasma table.** The Eastwood Versa-Cut 60

Features:

• Operates on either 120V or 240V power60-amp output easily slices through metal up to 7/8 in. thick Requires 7 cfm or less of compressed air Pilot arc feature allows for instant arc striking when cutting rusty material or expanded metal2T/4T torch mode reduces fatigue on long cuts Digital amperage readout for increased precisionTrafimet CB70 cutting torch with 20-ft cable uses commonly available consumablesConvenient 10-ft ground cable with clamp Lightweight and portable at less than 31 lbsBacked by Eastwood's no-hassle return policy and 3-year warranty
  • Input: 240 VAC and 120 VAC, 50/60 Hz, 1 Ph
  • Rated Input Current 120V AC: 39.4 Amps
  • Rated Input Current 240V AC: 44.5 Amps
  • Output Current Adjustment 120V AC: 20
  • 30 Amps
  • Output Current Adjustment 240V AC: 20
  • 60 Amps
  • Output Voltage on 120V AC: 88V
  • 92V
  • Output Voltage on 240V AC: 88V
  • 104V
  • Power Cord Receptacle Plug: NEMA 6-50P
  • Power Cord Length: 6-ft.
  • Output: 60 Amps
  • Duty Cycle on 120V AC: 60% @ 30 Amps and 100% @ 23 Amps
  • Duty Cycle on 240V AC: 60% @ 60 Amps and 100% @ 46 Amps
  • Torch: Trafimet CB70
  • Torch Tip: 0.1mm
  • Max Cut: 7/8-in. on 240 VAC; 3/16-in. on 120 VAC
  • Air Compressor Requirements: 5-7 cfm @ 20
  • 60 psi
  • Torch Cable Length: 20-ft.
  • Ground Cable Length and Gauge: 10-ft. long, 5 gauge wire
  • Cooling Method: Fan
  • Air Connection Thread: 1/4-in. NPT
  • Unit Dimensions: 17.01-in. Long X 14.69-in. Tall X 8.46-in. Wide
  • Unit Weight: 31 lbs
