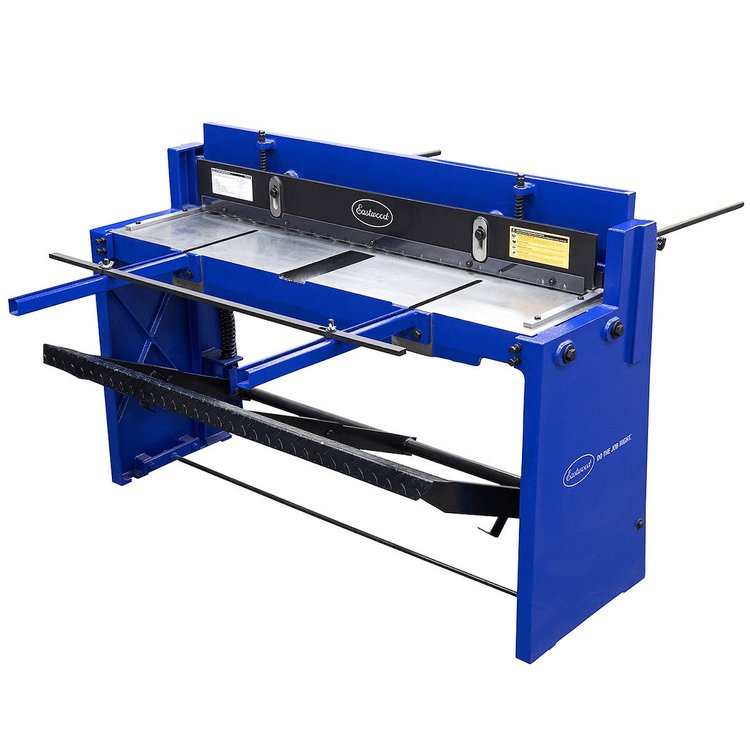

67517 52 in. Stomp Shear 16-Gauge Mild Steel Capacity
Items You Need
Eastwood 67517 Features:
The Eastwood 52 in. Stomp Shear is an industrial-grade piece of equipment ready for years of use in any shop environment. The generous cut width makes shearing common 4 wide sheets a breeze. This machine has an extremely rigid, heavy cast iron construction that is built to last. Also included is a Back Gauge for making precisely measured, repeatable cuts, and a Front Gauge that can assist in supporting material feeding and setting feed position. The Blades are made from T10A tool steel and can be flipped to give a fresh edge, extending time between sharpening. Stop shearing by hand and jump onto a new level of efficiency! Large 52 in. cut width makes shearing common 4' wide sheets a breeze Back Gauge for making precisely measured and repeatable cuts Front Gauge that can assist in supporting material feeding and setting feed position Heavy cast iron construction with durable powder coated finish T10A tool steel cutting blades
- Maximum Cut Width: 52" (1321mm)
- Rated Maximum Material Thickness at Maximum Cut Width:
- Mild steel: 0.059" (1.5mm)
- Stainless steel: 0.0375" (1.0mm)
- Aluminum: 0.078" (2mm)
- Table Depth: 14.25" (360mm)
- Front Gauge Depth: 22.69" (560mm)
- Back Gauge Depth: 32.50" (825mm)
- Overall Assembled Dimensions (W x D x H)

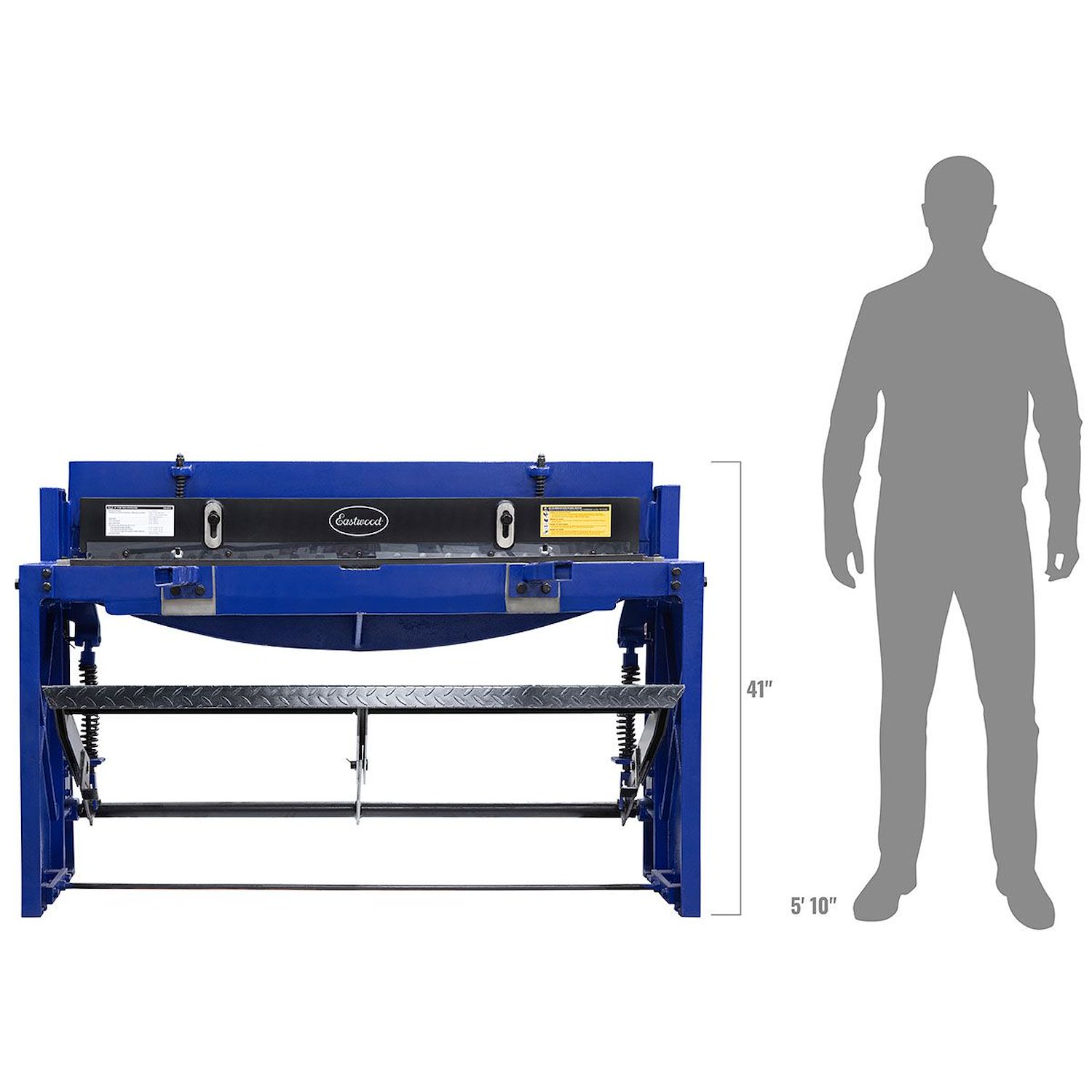

- Front and Back Gauges Installed: 61.75" x 75.00" x 41.38"
- Front and Back Gauges Not Installed: 61.75" x 36.00" x 41.38"
- Front and Back Gauges Not Installed, Treadle Folded Up: 61.75" x 28.00" x 41.38"
- Assembled Weight: 1001 lbs. (454kg)
