Eastwood 68075 Features:

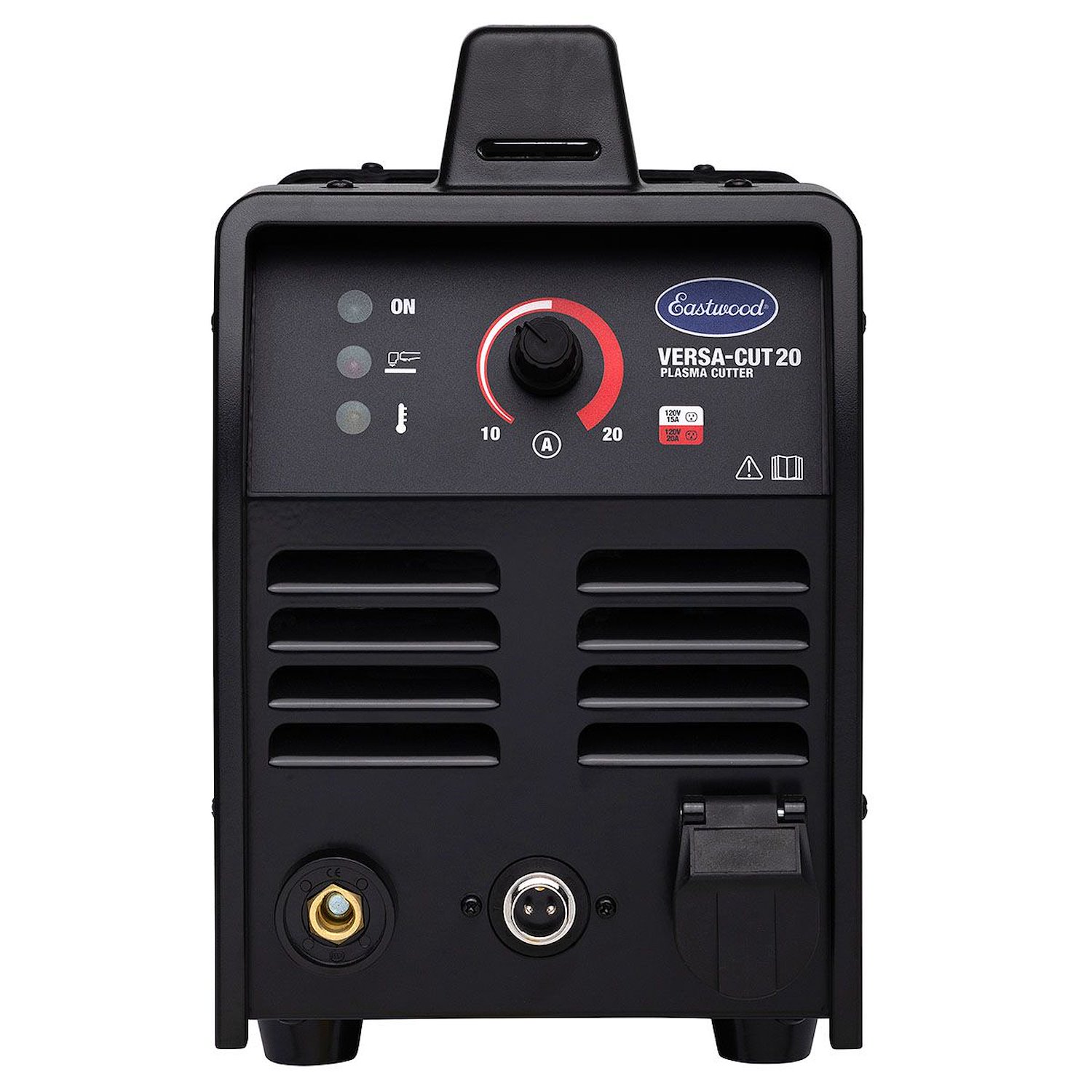

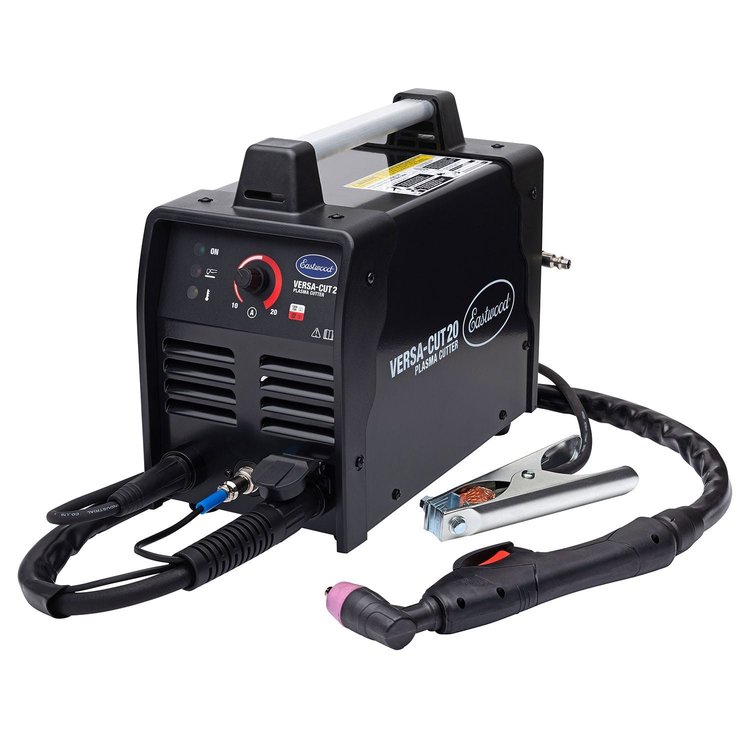

The Eastwood Versa-Cut 20 Plasma Cutter is an affordable solution for making clean, fast cuts through steel, stainless or aluminum as thin as 24-gauge, or as thick as 3/16 in.. Minimal air requirements, only 5-7 CFM @ as low as 60 PSI Cut Quickly, Cleanly with Precision through steel, stainless or aluminum Cut Through metal as thin as 24-gauge, or as thick as 3/16 in. Operates anywhere on standard 120V current Compact case is easy to pick up and carry. Weighs less than 20lbs The Versa-Cut 20 is a lightweight, compact unit that features adjustable cutting current. Plug directly into a 20A 120VAC outlet for maximum power output, or use with 15A household circuits using the included Plug Adapter. Low air consumption means most shop air compressors will keep up.

• Receptacle Type:
• NEMA 5-15R
• NEMA 5-20R
• Input Voltage:
• 120 VAC, 50/60Hz, 1 Ph
• No Load Voltage:
• 400V
• Rated Input Current:
• NEMA 5-15R
• 19A
• NEMA 5-20R
• 24A
• Output Current Adjustment:
• NEMA 5-15R
• 10A (84V)
• 16A (86.4V)
• NEMA 5-20R
• 10A (84V)
• 20A (88V)
• Rated Duty Cycle:
• NEMA 5-15R
• 60% @ 16A / 100% @ 12.5A
• NEMA 5-20R
• 35% @ 20A / 60% @ 16A / 100% @ 12.5A
• Starting Method:
• High Frequency
• Air Requirements:
• 5
• 7 CFM @ 60 psi
• Maximum Material Thickness:
• NEMA 5-15R
• 1/16"
• NEMA 5-20R
• 3/16"
• Nozzle Orifice Diameter:
• Ø0.028” (0.7mm)
• Overall Dimensions:
• 16.14" x 7.17" x 10.83" (410mm x 182mm x 275mm)
• Weight:
• 12.57 lbs. (5.7kg)
• Certification:
• CSA
