Eastwood 68199 Features:

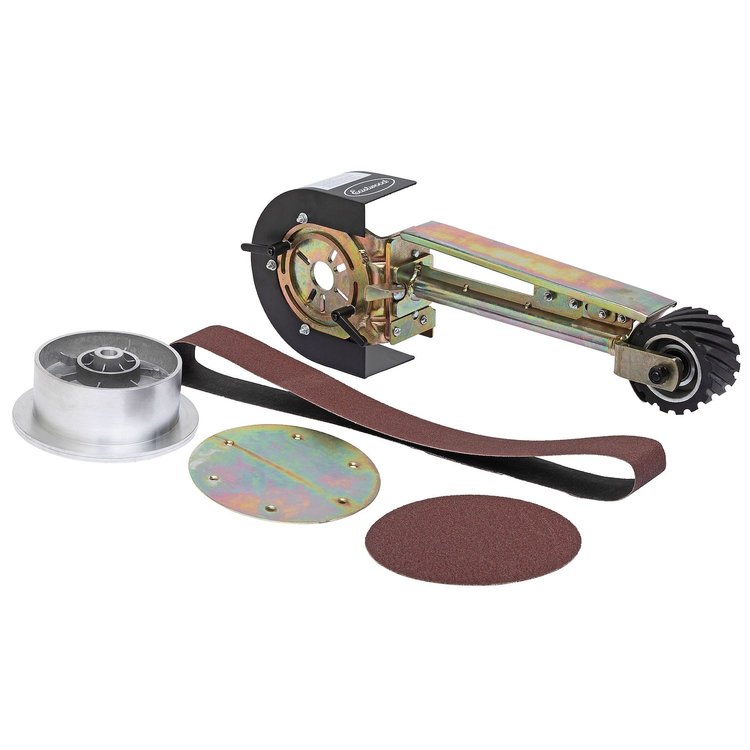

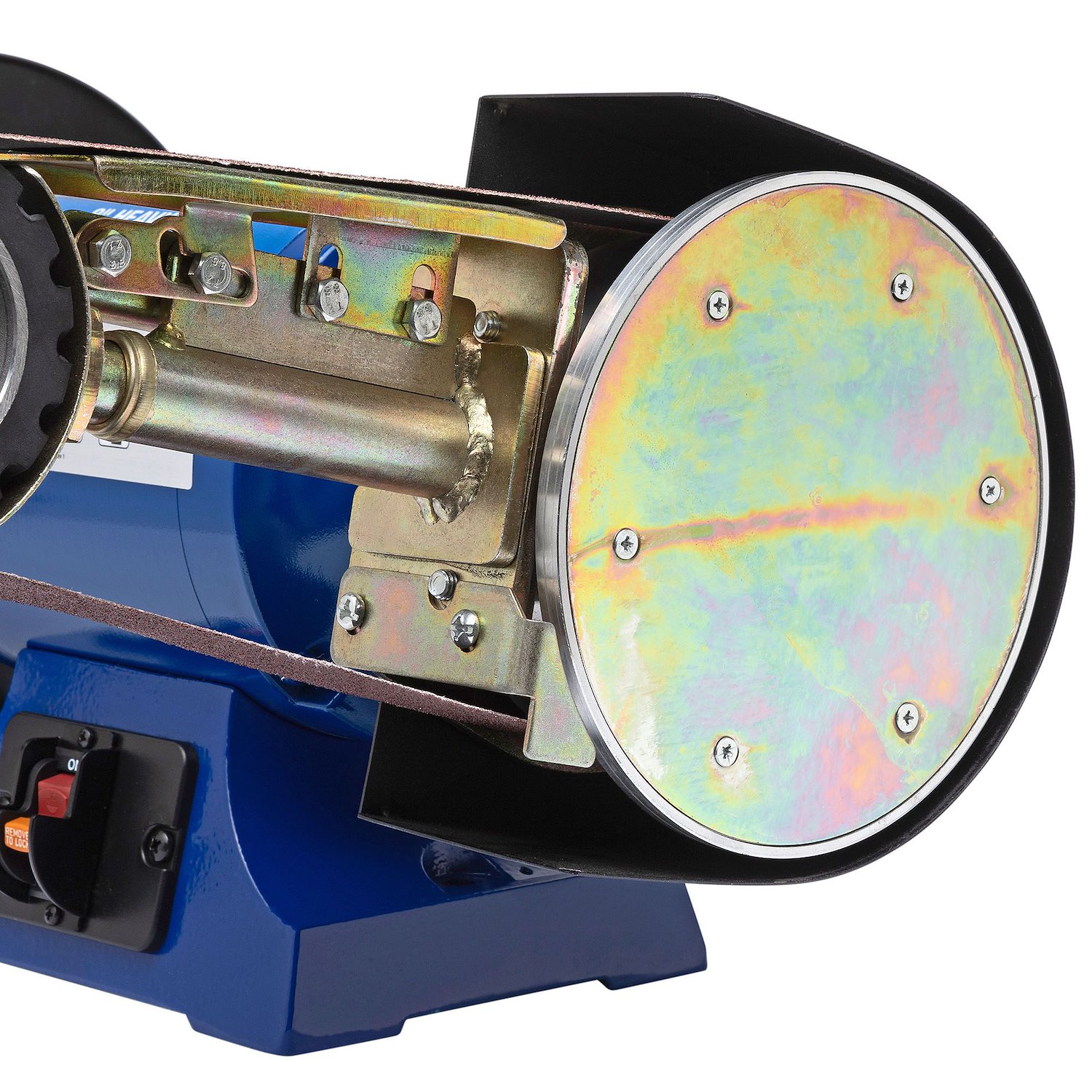

The Eastwood Versa-Grind Belt Grinder Attachment is designed to bolt to your existing bench grinder and transform it into an extremely versatile, enhanced grinding solution. Fits on Bench Grinders with a 5/8-in. Diameter Shaft Turns Your Standard Grinder Into a Belt and Disc Sander Tool-Less Swivel Adjustment Enables Quick Arm Position Adjustments Tool-less Belt Tracking Adjustment, Quick-Change Belt Replacement and Belt Tensioning Mechanism Recommended For Grinders with a 1 HP Motor and Maximum Speed of 3600 RPM This attachment features a large abrasive Belt with a platen-supported side for flat grinds, and a slack side for grinding blades or round objects. A rubber tread Contact Wheel at the front of the Belt allows grinding inside-radius features. A 7 inch abrasive disc, at the side of the attachment, comes with provisions for an adjustable table. Eastwoods unique tool-less swivel adjustment enables arm position adjustments in a matter of seconds. Tool-less belt tracking adjustment, and a quick-change belt replacement and belt tensioning mechanism, allow fast setup and configuration changes for unparalleled versatility.

• Item Number: 68199
• Abrasive Belt Size: 2-in. x 48-in.
• Abrasive Belt Grit: Aluminum oxide, 80 grit
• Abrasive Disc Size: 7-in., Pressure-sensitive Adhesive (PSA)
• Abrasive Disc Grit: Aluminum oxide, 80 grit
• Contact Wheel Size: 3.54-in. (90mm) x 1.97-in. (50mm) Wide
• Maximum Rated Speed: 3600 RPM
• Arm Swivel: 160° Range, Tool-less position locking
• Fits Bench Grinder Shaft Size: 5/8-in.
• Recommended Grinder Size: Minimum 1HP
