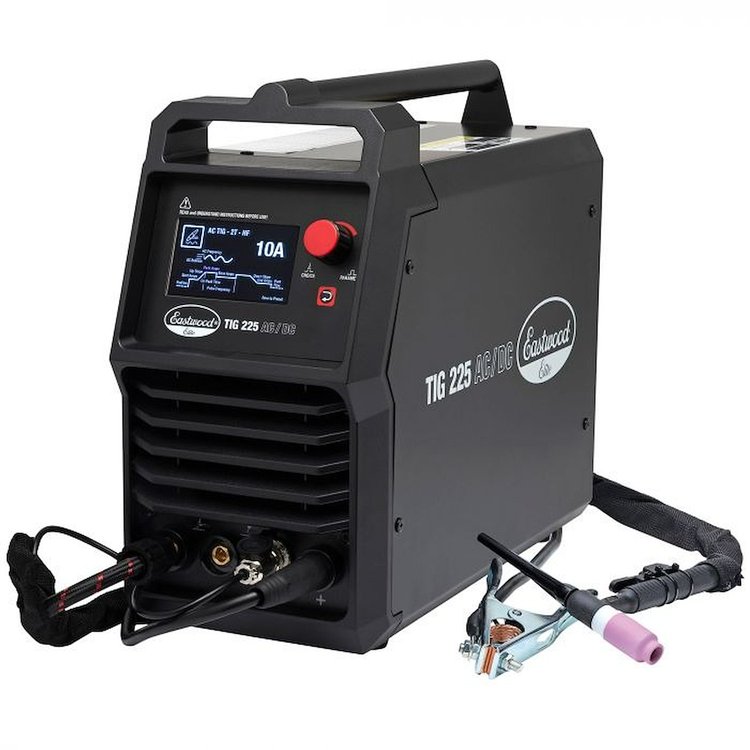

The Eastwood Elite TIG 225 AC/DC Welder is a professional-grade TIG and stick welding machine engineered for serious fabricators, restoration pros, and ambitious DIY welders. This versatile unit allows you to weld aluminum, mild steel, and stainless steel with precision and confidence. The Eastwood-exclusive color LCD interface delivers an intuitive, easy-to-navigate experience, eliminating confusing symbols while giving you fast access to advanced controls. Fully configurable pulse modes, adjustable AC balance, and AC frequency controls let you fine-tune arc characteristics for superior weld appearance and penetration. Five user-programmable presets allow you to save and instantly recall favorite settings for repeat jobs, increasing efficiency in busy shops. Powered by advanced inverter technology, the unit remains lightweight and portable while delivering a peak 225-amp output capable of welding up to 3/16-inch steel, stainless, and aluminum The included flex-head WP-17 type TIG torch with gas lens style consumables improves shielding gas coverage and access to tight spaces.

Eastwood 73882 Elite 225 Amp AC/DC Digital TIG Welder Features:

• AC/DC TIG plus stick welding capability
• 225A peak output welds up to 3/16” steel, stainless and aluminum

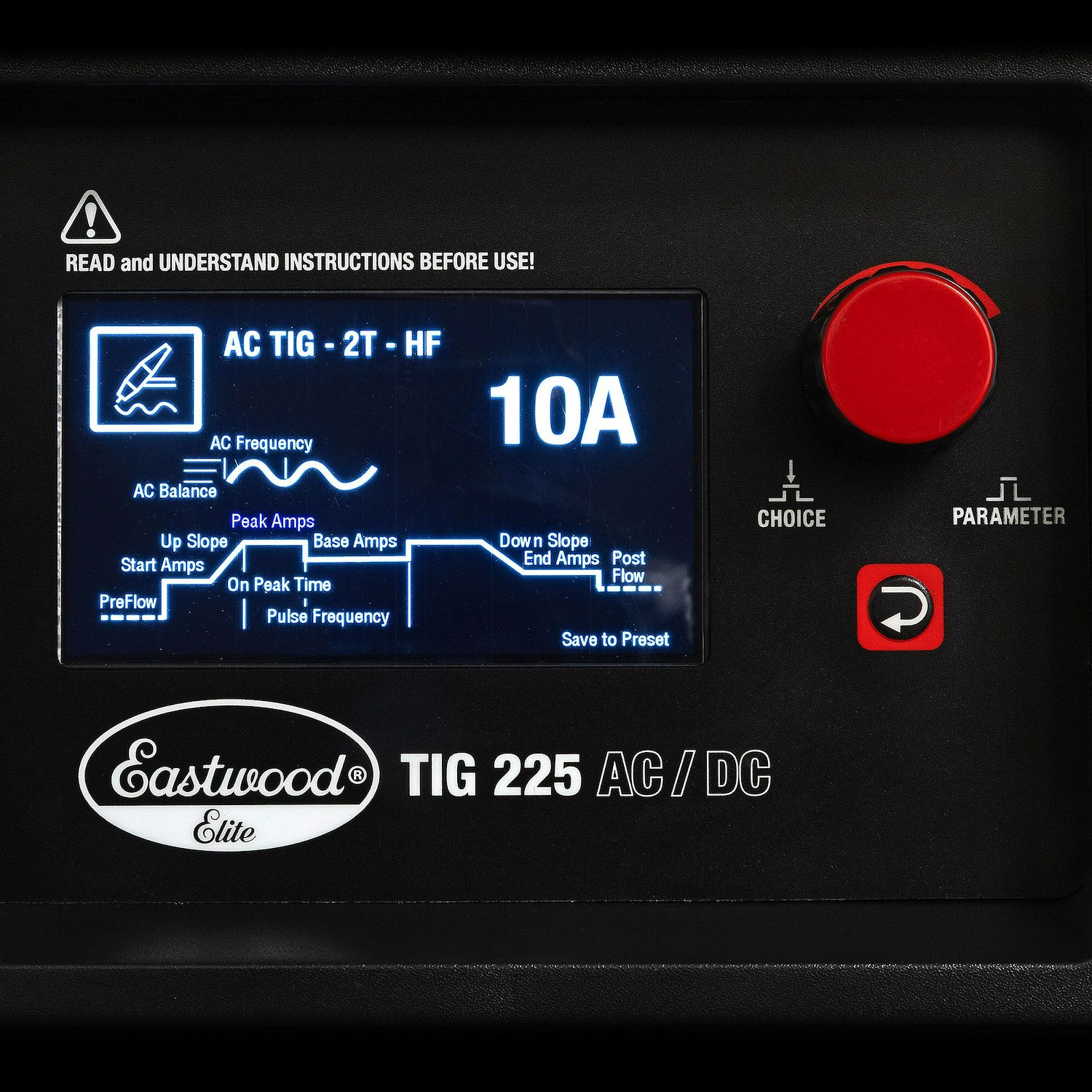

• Eastwood-exclusive color LCD interface
• 5 programmable preset memory slots
• Adjustable AC balance and AC frequency control
• Fully configurable pulse welding modes
• High-frequency start for clean arc initiation
• Flex-head WP-17 torch with gas lens consumables
• Advanced inverter technology for lightweight portability
• Dual-voltage 120V/240V operation

Eastwood 73882 Elite 225 Amp AC/DC Digital TIG Welder Includes:

• (1) TIG 225 AC/DC Welder
• (1) Flex Head TIG Welding Torch and Cable Assembly, 12 ft. (3.65m) with 3/32" Gas Lens Collet Body and Collet, #8 Gas Cup and Long Back Cap pre-installed
• (1) Ground Cable/Clamp Assembly, 9.5 ft. (2.9m)
• (1) Argon Regulator/Flowmeter
• (1) Shielding Gas Hose, 4.6' (1.4m)
• (1) Adapter Cord, 8" (0.2m)
• (1) Foot Pedal with Cable Assembly, 16 ft. (4.85m)
• (1) 1/16" Collet
• (1) Spare #8 Gas Cup
• (1) 1/16" Gas Lens Collet Body
• (1) Tungsten 3/32" x 6", Red
• (1) Tungsten 3/32" x 6", Green

Eastwood 73882 Elite 225 Amp AC/DC Digital TIG Welder Specifications:

• Input Voltage: 240 VAC, 50/60Hz, 1 Ph - 120 VAC, 50/60Hz, 1 Ph
• No Load Voltage: 69V
• Rated Input Current: TIG (I1max / I1eff): (240V)30.5A / 13.6A - (120V) 25.3A / 11.3A
• Rated Input Current: Stick (I1max / I1eff): (240V) 40.0A / 17.9A - (120V) 42.5A / 19A
• Output Current Adjustment: TIG (DC): (240V)5A (10.2V) - 225A (19V) - (120V) 5A (10.2V) - 120A (14.8V)
• Output Current Adjustment: TIG (AC): (240V) 10A (10.4V) - 225A (19V) - 120V) 10A (10.4V) - 120A (14.8V)
• Output Current Adjustment: Stick: (240V) 20A (20.8V) - 200A (28.0V) - (120V) 20A (20.8V) - 120A (24.8V)
• TIG Rated Duty Cycle (240V): 20% @ 225A (19V), 60% @ 130A (15.2V), 100% @ 101A (14.0V)
• TIG Rated Duty Cycle (120V): 20% @ 120A (14.8V), 60% @ 70A (12.8V), 100% @ 54A (12.2V))
• Stick Rated Duty Cycle (240V): 20% @ 200A (28.0V), 60% @ 115A (24.6V), 100% @ 89A (23.6V
• Stick Rated Duty Cycle (120V): 20% @ 120A (24.8V), 60% @ 70A (22.8V), 100% @ 54A (22.2V)
• TIG Starting Method: High Frequency
• Power Factor: 0.73
• Efficiency: 80%
• Pre-Flow Time: 0.1 - 1.0s
• Post-Flow Time: 0 - 15s
• Overall Dimensions: 18.27" x 8.39" x 15.94" (464 x 213 x 405mm)
• Weight: 34.17 lbs. (15.5kg)
