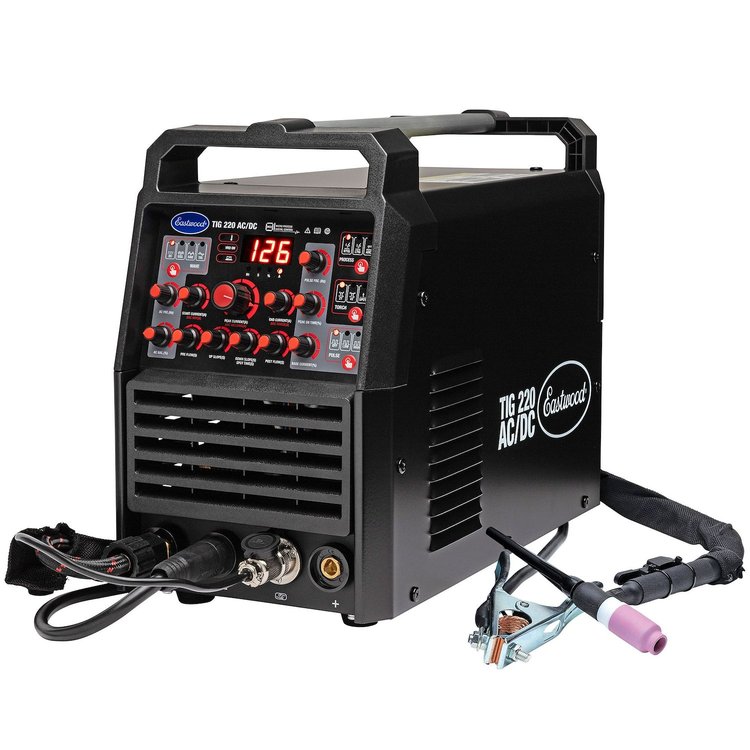

The Eastwood TIG 220 AC/DC Welder delivers professional TIG welding performance for steel, stainless, and aluminum in a compact, inverter-driven machine. Designed as the next evolution of the proven TIG 200, the TIG 220 adds more output power, expanded adjustability, and refined arc control for serious fabrication work. With AC and DC TIG capability, this welder handles everything from thin sheet metal to aluminum fabrication. DC TIG mode provides smooth, low-amperage control for steel and stainless, while AC TIG mode gives you the ability to fine-tune aluminum welds with adjustable balance and frequency. High-frequency arc starting ensures clean ignition without tungsten contact. The TIG 220 features adjustable pulse TIG welding, allowing better heat control, improved bead appearance, and reduced distortion on thin materials. Pulse TIG is especially useful for automotive restoration, exhaust fabrication, and precision components where heat management is critical. Dual voltage capability lets you run the TIG 220 on 120V or 240V input power, making it easy to weld in a home garage or a fully equipped shop. Plug into standard household power for lighter work or step up to 240V for maximum output and performance. In addition to TIG welding, the TIG 220 also includes stick welding capability, giving you added flexibility for thicker materials or outdoor repairs. Digital controls and a clear display make setup fast and repeatable, while foot pedal compatibility provides precise amperage control during welding. Built with efficient inverter technology and a durable metal case, the TIG 220 is engineered for consistent performance and long service life. It’s an ideal solution for restorers, fabricators, and advanced DIY welders who want professional results without professional-shop cost.

Eastwood 74010 TIG 220 AC/DC Welder Features:

• AC/DC TIG welding for steel, stainless, and aluminum
• Dual voltage operation (120V / 240V)
• Up to 220 amps of welding output welds material up to 1/4 in.
• High-frequency start for clean, consistent arc ignition
• Adjustable AC balance and frequency for aluminum control
• Pulse TIG welding for reduced heat input and improved bead appearance
• Stick welding capability for added versatility

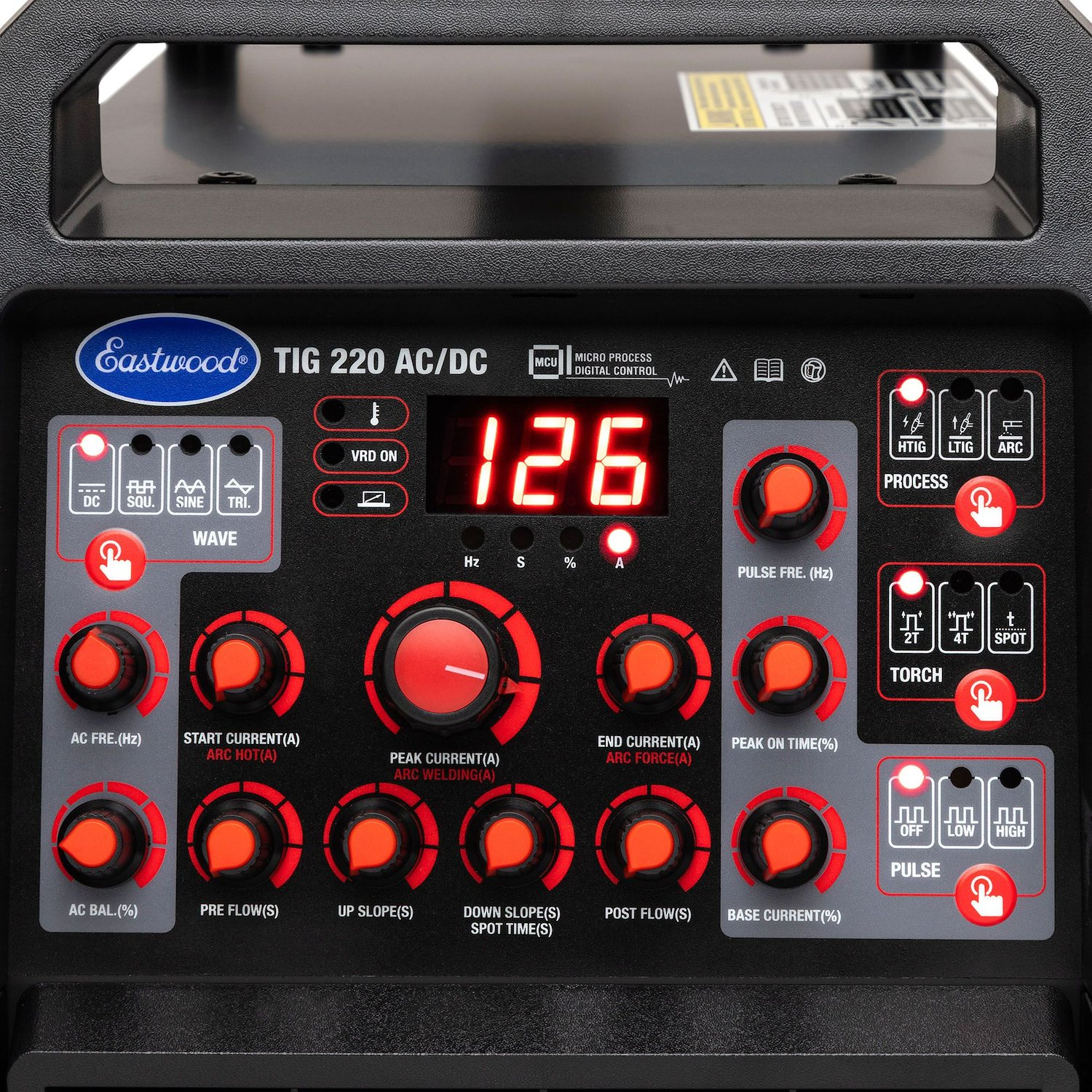

• Compact inverter design with digital controls

Eastwood 74010 TIG 220 AC/DC Welder Includes:

• (1) Eastwood TIG 220 AC/DC Welder
• (1) Flex Head TIG Welding Torch and Cable Assembly, 12 ft. (3.65m) with 3/32" Gas Lens Collet Body and Collet, #8 Gas Cup and Long Back Cap pre-installed
• (1) Ground Cable/Clamp Assembly, 9.5 ft. (2.9m)
• (1) Adapter Cord, 8" (0.2m)
• (1) Argon Regulator/Flowmeter
• (1) Shielding Gas Hose, 4.6' (1.4m)
• (1) Foot Pedal with Cable Assembly, 16 ft. (4.85m)
• (1) 1/16" Collet
• (1) Spare #8 Gas Cup
• (1) 1/16" Gas Lens Collet Body
• (1) Tungsten 3/32" x 6", Red
• (1) Tungsten 3/32" x 6", Green

Eastwood 74010 TIG 220 AC/DC Welder Specifications:

• Input Voltage 240 VAC, 50/60Hz, 1 Ph - 120 VAC, 50/60Hz, 1 Ph
• No Load Voltage 68V
• Rated Input Current: DC TIG (I1max / I1eff) (240 VAC) 33.2A / 16.6A - (120 VAC) 35.1A / 17.6A
• Rated Input Current: AC TIG (I1max / I1eff) (240 VAC) 33.2A / 21.0A - (120VAC) 35.1A / 22.2A
• Rated Input Current: STICK (I1max / I1eff) (240 VAC) 34.9A / 17.5A - (120 VAC) 42.5A / 21.3A
• Output Current Adjustment: TIG (240 VAC) 10A (10.4V) - 220A (18.8V) 10A - (120 VAC) (10.4V) - 140A (15.6V)
• Output Current Adjustment: Stick (240 VAC) 20A (20.8V) - 180A (27.2V) 20A - (120 VAC) (20.8V) - 120A (24.8V)
• Rated Duty Cycle (240 VAC): DC TIG 25% @ 220A (18.8V), 60% @ 142A (15.7V), 100% @ 110A (14.4V)
• Rated Duty Cycle (120V): DC TIG 25% @ 140A (15.6V), 60% @ 90A (13.6V), 100% @ 70A (12.8V)
• Rated Duty Cycle (240 VAC): AC TIG 40% @ 220A (18.8V), 60% @ 179A (17.2V), 100% @ 139A (15.6V)
• Rated Duty Cycle (120V): AC TIG 40% @ 140A (15.6V), 60% @ 115A (14.6V), 100% @ 89A (13.6V)
• Rated Duty Cycle (240 VAC): STICK 25% @ 180A (27.2V), 60% @ 116A (24.6V), 100% @ 90A (23.6V)
• Rated Duty Cycle (120V): STICK 25% @ 120A (24.8V), 60% @ 77A (23.1V), 100% @ 60A (22.4V)
• Starting Method: TIG High Frequency
• Power Factor 0.73
• Efficiency TIG: 71% - Stick: 80%
• Pre-Flow Time 0.1 s - 3.0 s
• Post-Flow Time 1 s - 15 s
• Overall Dimensions 16.81" x 8.74" x 13.31" (427 x 222 x 338mm)
• Weight 22.93 lbs. (10.4kg)
