Eastwood 98077 Features:

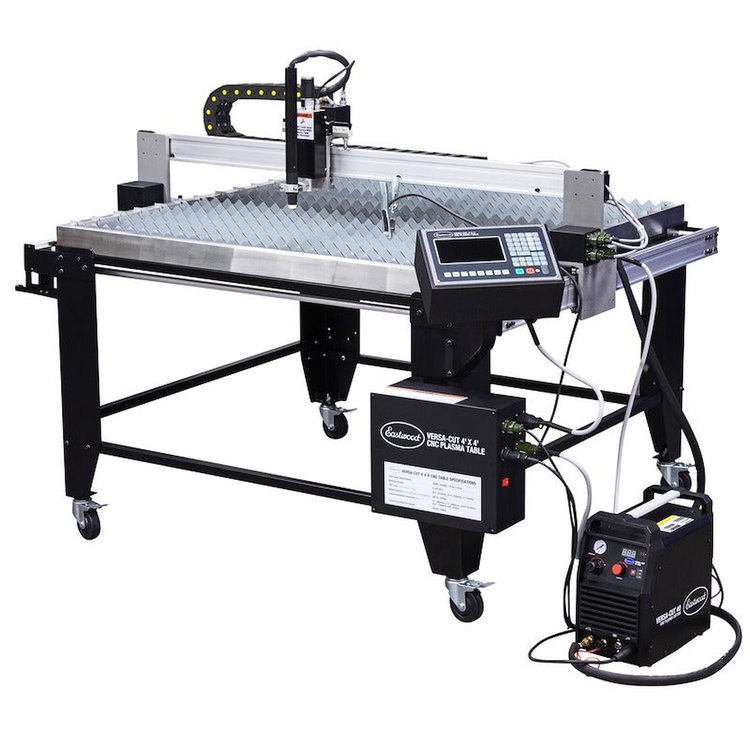

The Eastwood Versa-Cut 4' X 4' CNC Plasma Table and Versa-Cut 40 Plasma Cutter deliver professional CNC plasma cutting features at a hobbyist price. The 49-in. x 43-in. cut area can handle material right from the mill. Rack-and-pinion design allows ±0.2mm accuracy from the X- and Y-axis motors and combines with automatic torch height control for clean, accurate cuts. The CNC controller with torch height control, integrated limit switches, and waterbed are all included with the Eastwood Versa-Cut 4' X 4' CNC Plasma Table - features often unavailable or only offered at extra cost from similar machines. Combo includes the Eastwood Versa-Cut 40 CNC Plasma Cutter With Machine Torch designed specifically for this table, allowing clean, precise cuts in steel, stainless steel, and aluminum material up to 1/4-in. thick. The Eastwood Versa-Cut 4'x4' CNC Plasma Table with Versa-Cut 40 CNC Plasma Cutter and Machine Torch

Features:

• Ready to use right out of the box Oversized waterbed accepts standard4-ft. x 4-ft. pre-cut sheet materials Intuitive color LCDscreen interface and USB drive for ease of use Dedicated CNC controller eliminates the need for a separate laptop User-friendly controller is easy for beginners, but packed with pro features Robuststepper motors for long life and accurate cut movements Large waterbed holds up to 33 gallons of cutting fluid Ready to assemble, all hardware included Includes locking casters for convenient movement and storage Strong steel frame assures a rock-solid foundation Rigid design for precise gantry movements and cutting accuracy CNC cutting table operates on 120V AC Torch travel is 49.2-in. X-Axis; 43.3-in. Y-Axis Includes Versa-Cut 40 Plasma Cutter with application-specific machine torch Plasma cutter operates on 120V or 240V AC 60% duty cycle @ 40 amps on 240V (60% @ 30 amps on 120V) Long 20-ft torch cable Eastwood 3-year warranty

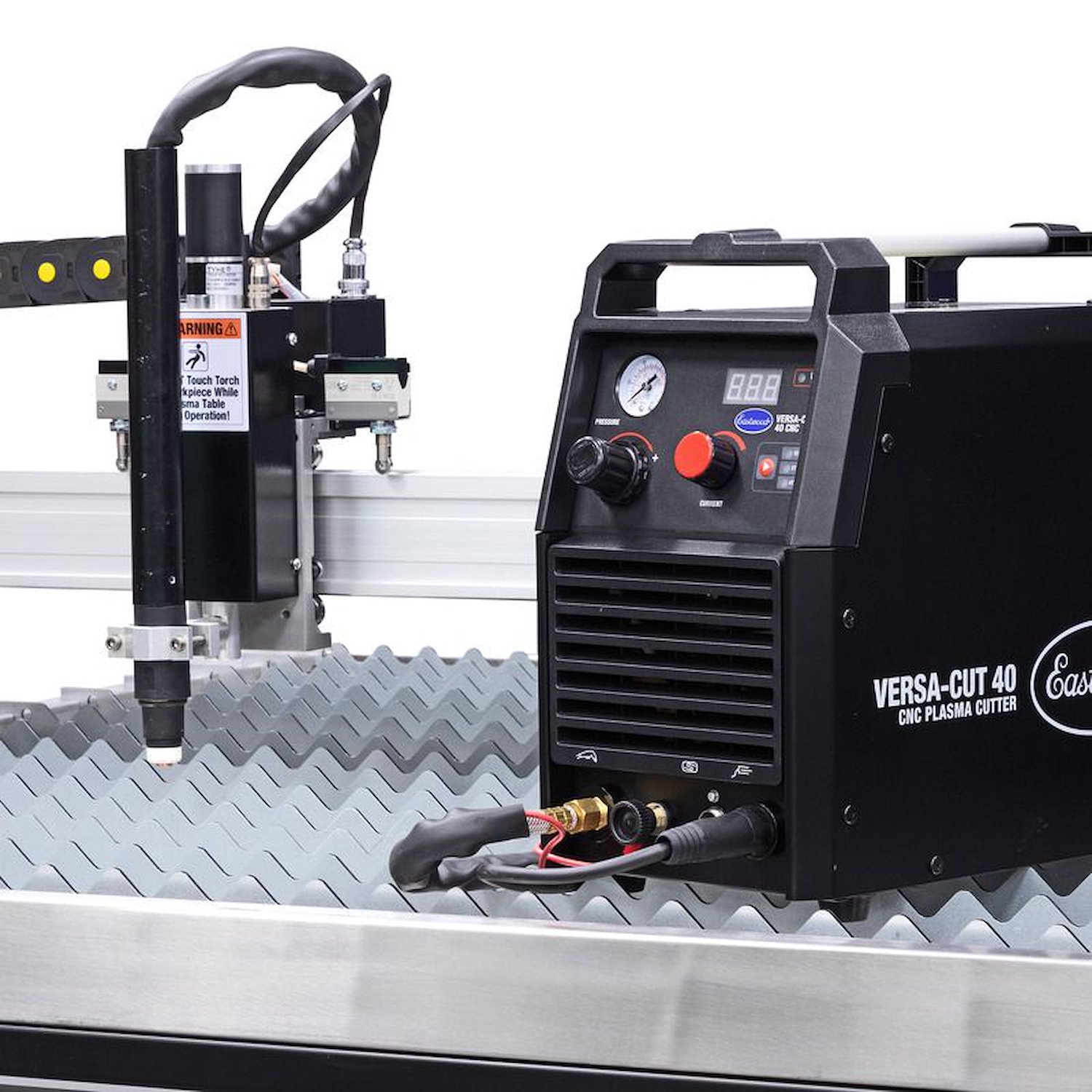

  • Versa-Cut 40 Power Voltage:
  • 120V±10% VAC, 50/60 Hz, 1 Phase
  • 240V±10% VAC, 50/60 Hz, 1 Phase
  • Max Output No Load Voltage: 339V DC
  • Rated Input Current:
  • 120V: 19.7 Amps
  • 240V: 27.4 Amps
  • Output Voltage:
  • 120V: 86V to 92V
  • 240V: 86V to 96V
  • Output Current Range:
  • 120V: 15 to 30 Amps
  • 240V: 15 to 40 Amps
  • Duty Cycle (%):
  • 120V: 60% @ 16 Amps, 100% @ 15 Amps
  • 240V: 60% @ 40 Amps, 100% @ 31 Amps
  • Air Requirements: 5
  • 7 CFM @ 60 psi
  • Max Material Thickness: 3/8-in
  • Weight: 24.47 lbs. (11.1kg)
  • Dimensions: 14.06-in x 8.46-in x 14.69-in (357mm x 215mm x 373mm)
  • Plasma Table:
  • CNC plasma cutting material exceeding 1/4-in requires slow travel speeds and increased pierce time that will wear consumables rapidly. See manual for further guidance.
  • Power Requirements: 120±10% VAC, 50/60 Hz, 5A
  • Plate Capacity: 48-in x 48-in x 0.25-in thick
  • Weight Capacity (Includes workpiece and full Waterbed): 450 lbs. (204kg)
  • CNC Torch Travel:
  • X-Axis: 49.2-in (1250mm)
  • Y-Axis: 43.3-in (1100mm)
  • Z-Axis: 2.1-in (54mm)
  • Assembled Waterbed Dimensions:
  • X-Axis: 52.5-in (1335mm)
  • Y-Axis: 52.8-in (1340mm)
  • Z-Axis: 2.75-in (70mm)
  • Overall Assembled Dimensions (W x D x H):
  • 77-in (1955mm) x 71-in (1800mm) x 50.0-in (1270mm)
  • 55.1-in (1400mm) w/casters
  • Overall Assembled Weight: 330 lbs. (150kg)
  • Movement Accuracy: ±0.2mm
  • Cutting Accuracy: ±0.5mm
