Eastwood 98111 Features:

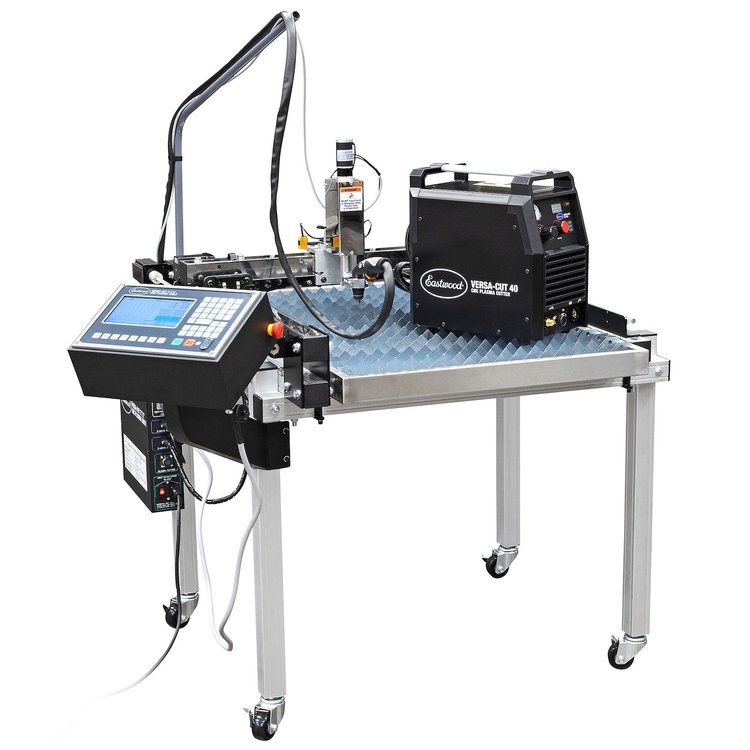

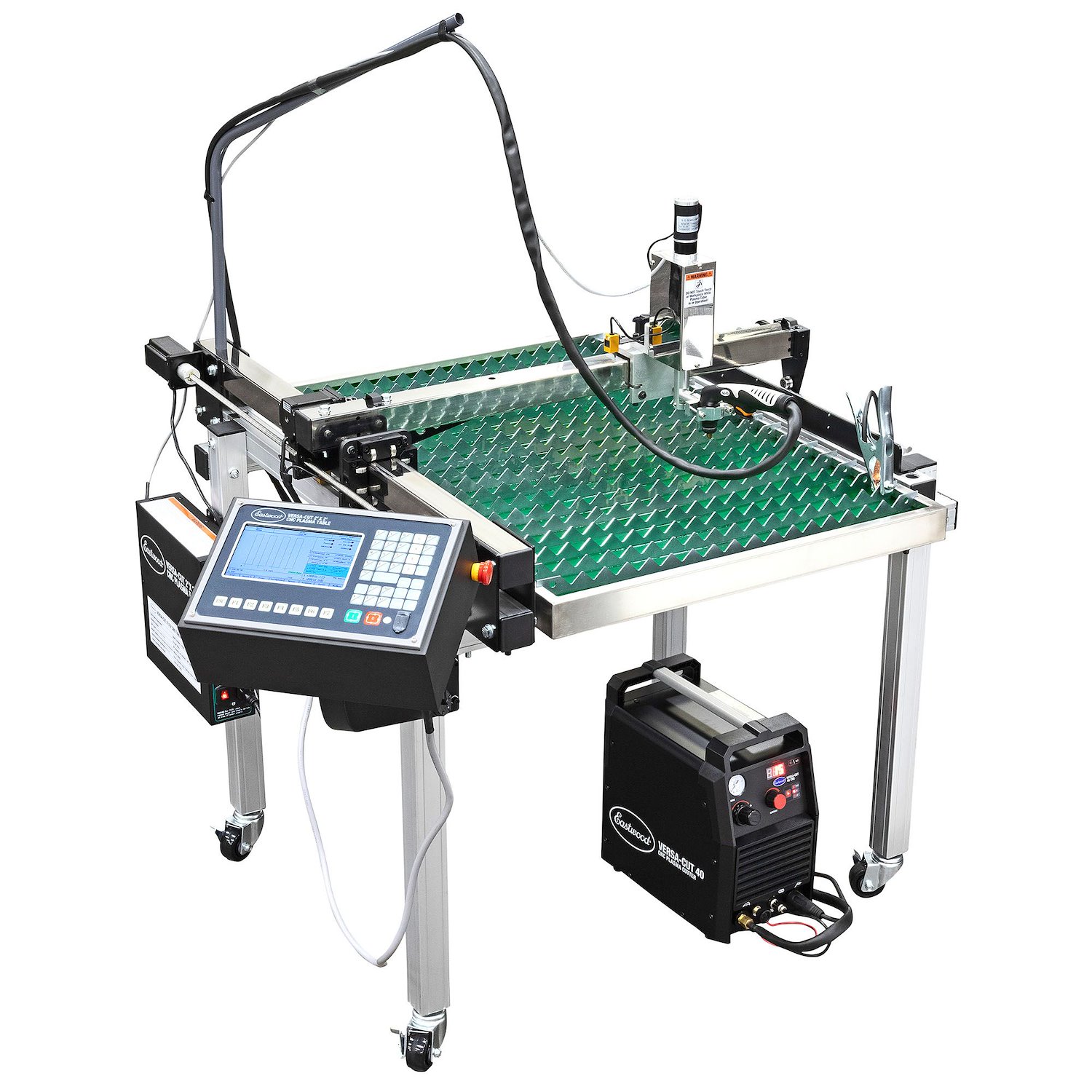

The Eastwood Versa-Cut 2-ft.x 2-ft. CNC Plasma Table packs features of a professional CNC Plasma Table in a footprint suited for your home garage. The 24-in. x 24-in. cut area is great for custom brackets, sign art, and making generic shapes rapidly. Its lead screw driven design allows ±0.2mm accuracy of movement from the X & Y-axis stepper motors and combines with Automatic Torch Height Control for clean, accurate cuts. The CNC Cut Controller operates fully independent of a PC and enables you to dimension and cut fifty pre-loaded shapes. Additionally, any CAD file post-processed in Autodesk Fusion 360 can be loaded via USB Drive and modified as needed by the CNC Cut Controller. Limit Switches prevent machine limit collision, and the included Waterbed prevents heat soak, warping, and reduces spark & fume hazards. The CNC Cut Controller with Torch Height Control, Limit Switches, and Waterbed, features frequently unavailable, or only offered at an additional cost by competing units focused on home shop use, are all included with the Eastwood Versa-Cut 2-ft.x 2-ft. CNC Plasma Table. This combo kit includes the Eastwood Versa-Cut 40 CNC Plasma Cutter With Hand Torch designed specifically for this table, allowing clean, precise cuts in steel, stainless steel, and aluminum material up to 1/4-in. thick. The Eastwood 2-ft. x 2-ft. CNC Plasma Cutting Table and Versa-Cut 40

Features:

• Includes Versa-Cut 40 Plasma Cutter with application-specific hand torch Plasma cutter operates on 120V or 240V AC 60% duty cycle @ 40 amps on 240V (60% @ 30 amps on 120V) Long 20-ft torch cable Small Footprint CNC Plasma Table is the Perfect Size for Your Home Garage Intuitive color LCD screen interface and USB drive for ease of use Dedicated CNC controller eliminates the need for a separate laptop User-friendly controller is easy for beginners, but packed with pro features Robust stepper motors for long life and accurate cut movements Waterbed holds up to 10.4 gallons of cutting fluid Ready to assemble, all hardware included Includes locking casters for convenient movement and storage Strong High Strength Extruded Aluminum frame assures a rock-solid foundation Rigid design for precise gantry movements and cutting accuracy CNC cutting table operates on 120V AC Torch travel is 24-in. X-Axis; 24-in. Y-Axis Backed by Eastwood's 1-year warranty on the CNC Table and 3-year warranty on the Cut 40 Plasma Cutter
  • Versa-Cut 40 Power Voltage:
  • 120V±10% VAC, 50/60 Hz, 1 Phase
  • 240V±10% VAC, 50/60 Hz, 1 Phase
  • Max Output No Load Voltage: 339V DC
  • Rated Input Current:
  • 120V: 19.7 Amps
  • 240V: 27.4 Amps
  • Output Voltage:
  • 120V: 86V to 92V
  • 240V: 86V to 96V
  • Output Current Range:
  • 120V: 15 to 30 Amps
  • 240V: 15 to 40 Amps
  • Duty Cycle (%):
  • 120V: 60% @ 16 Amps, 100% @ 15 Amps
  • 240V: 60% @ 40 Amps, 100% @ 31 Amps
  • Air Requirements: 5
  • 7 CFM @ 60 psi
  • Max Material Thickness: 3/8-in
  • Weight: 24.47 lbs. (11.1kg)
  • Dimensions: 14.06-in x 8.46-in x 14.69-in (357mm x 215mm x 373mm)
  • Plasma Table Only:
  • Plasma cutters with blowback (low frequency) start are permitted
  • High frequency start machines may damage the table electronics
  • CNC cutting may reduce plasma cutter lifespan if not intended for this
  • Use may invalidate plasma cutter’s warranty
  • Reach out to plasma cutter’s manufacturer for guidance
  • Eastwood is not responsible for warranty revocation or damage
  • Plasma Table Power Requirements: 120±10% VAC, 50/60 Hz, 5A
  • Plate Capacity: 24-in. x 36-in. x 0.25-in. thick
  • Weight Capacity (Includes workpiece and full Waterbed): 200 lbs. (90kg)
  • Waterbed Fluid Capacity: 10.4 gal (39.4L)
  • CNC Torch Travel:
  • X-Axis: 24.0-in. (610mm)
  • Y-Axis: 24.0-in. (610mm)
  • Z-Axis: 1.96-in. (50mm)
  • Assembled Waterbed Dimensions:
  • X-Axis: 27.75-in. (705mm)
  • Y-Axis: 40.06-in. (1018mm)
  • Z-Axis: 2.17-in. (55mm)
  • Overall Assembled Dimensions (W x D x H): 52.5-in. (1333mm) x 55.0-in. (1397mm) x 60.5-in. (1536mm)
  • Overall Assembled Unit Weight: 158.7 lbs. (72kg)
  • Movement Accuracy: ±0.2mm
  • Cutting Accuracy: ±0.5mm
