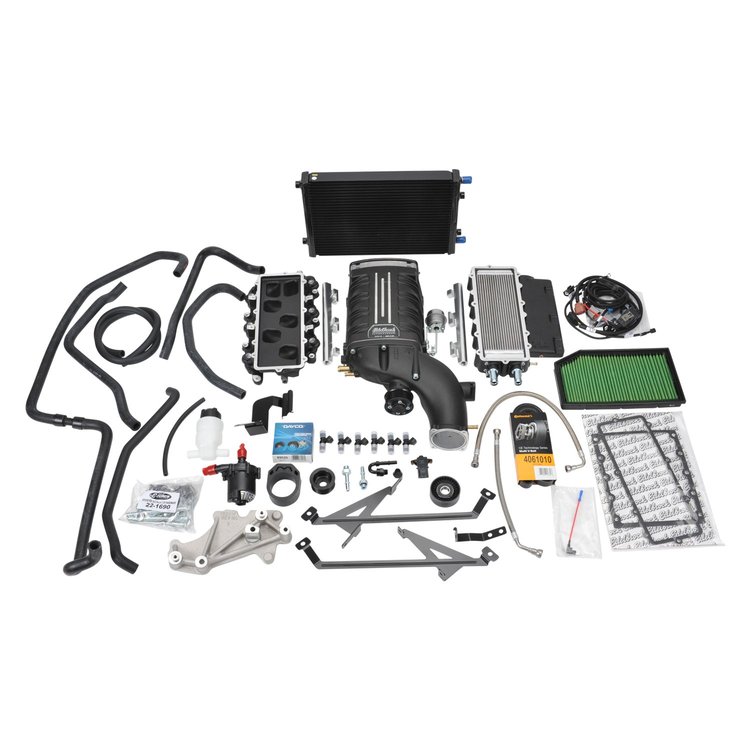

Edelbrock 152840: Stage-1 Street Supercharger System:

• The hand-held tuner is not included with this kit
  • Order Edelbrock 15284 for the supercharger kit with tuner
• Supercharger with included tuner delivers a 46 percent increase in rear-wheel horsepower (HP) and 26.9 percent more rear-wheel torque (TQ)
  • Calculated with 272RW 8-speed automatic transmission, 32.7 in. diameter LT285/70R17 off-road tires, and 4.10 axle ratio
• TVS R1320 rotor assembly in the Edelbrock supercharger housing is mounted to the lower intake manifold with a high-capacity dual-pass intercooler
• An integrated bypass valve eliminates parasitic power loss while under light throttle
• Internal step-up
• 42 lb. Injectors
• 8 psi of boost pressure
• 6-Rib pulley
• Fits under the original hood

Edelbrock 152840: Stage-1 Street Supercharger System Installation Notes:

• Download required from: www.hptuners.com/myaccount/
  • Create an account and install the latest update to the included Remote Tuning Device (RTD)
• Email your Name, Address, and phone number to: [email protected] and a prepaid return label will be sent for the ECM to be shipped to Edelbrock for calibration (8- 10 business days)
• 1/8 NPT port for installation of a boost gauge or pressure transducer such as JEGS 555-41463 LED Digital Boost Gauge (sold separately) or equivalent
• Not compatible with eTorque Hybrid models

Emissions:

• EO Number: D-215-118
• Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program
