E-Force Stage 1 Supercharger Kit for 2005-2009 Ford Mustang 4.6L 3V

Vehicle Info Needed

EDELBROCKPART NUMBER: 350-1580

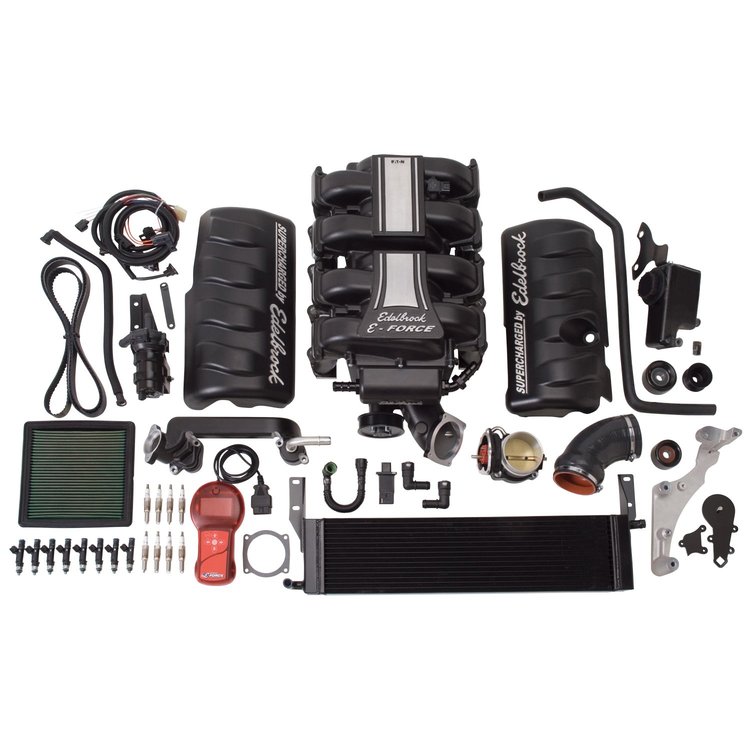

E-Force Stage 1 Supercharger Kit for 2005-2009 Ford Mustang 4.6L 3V

Name: E-Force Stage 1 Supercharger Kit for 2005-2009 Ford Mustang 4.6L 3V
Brand: EDELBROCK
SKU: 350-1580
Price: 7995.95 USD
Availability: InStock

^$7,995⁹⁵

Truck Freight

Ships on Sep 11, 2026

Lowest Price Guarantee

Stage 1 Street Legal Kit

Handheld Calibration Module Tuner Included

E-Force Stage 1 Supercharger Kit

2005-2009 Ford Mustang 4.6L 3V

466HP/439TQ

Includes Tuner

50-State Legal

CARB E.O. Number: D-215-89

Installation Notes:

2005-06 installations require the use of Cooling Upgrade Kit p/n 350-15804 (sold separately).

2009 installations will also require Hardware Kit p/n 350-15805 (sold separately).

Important Note: Supercharger systems with tuners are eligible for supplemental warranty.

Emissions:

This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number

Part TypeSupercharger Kit

BrandEDELBROCK

Package Height18.0

Package Width33.0

Package Length42.0

Weight163.0 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Fuel Pump IncludedNo

Engine Block StyleStock/OEM standard deck

Carb Eo NumberD-215-85 (pdf)

Damper IncludedNo

Linkage IncludedNo

Intercooler IncludedYes

Computer Chip/Programmer IncludedYes

Pulley StyleSerpentine Pulley

Regulator IncludedNo

QuantitySold as a kit

Ptfe Lined RotorsNo

Supercharger Pulley IncludedYes

Fuel Rails IncludedNo

Crankshaft Pulley Grooves6-groove, serpentine

Supercharger ModelEaton Gen VI

Fuel Injectors IncludedYes

Belt Tensioner IncludedNo

Part FitmentSemi Universal

Supercharger FinishBlack powdercoated

Vendor Part Number1580

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file

Please click here to download the graphs PDF File
