EDELBROCKPART NUMBER: 350-2117

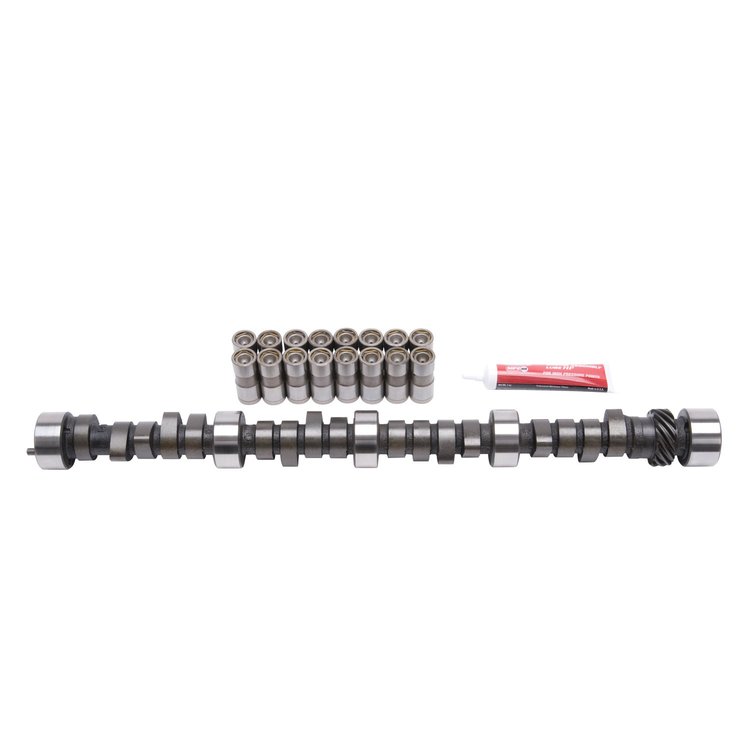

Performer-Plus Camshaft Kit for Small Block Chevy
$38295
3 left in stockChevy
- Performer-Plus Camshaft Kit
- 1957-1986 Small Block Chevy 265-400ci
- Lift: .464''/.470''
- Duration @ .050: 218°/224°
- Advertised Duration: 278°/288°
- Idle-5500 RPM Range
INSTALLATION NOTES:Duration Advertised 278° Intake/288° Exhaust Duration @ .050' 218° Intake/224° Exhaust Lift @ Valve .464' Intake/.470' Exhaust Lift @ Cam .309' Intake/.314' Exhaust Lobe Separation Angle 115° Intake Centerline 110° Intake Timing @ .050" Open -1° ATDC
Close 39° ABDCExhaust Timing @ .050" Open 50° BBDC
Close -6° BTDCVacuum @ 1000RPM Idle 15" - Do not use late model timing sets. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7800 or similar set.
- Use only stock or Edelbrock Springs 350-5802 or 350-5902 (for rotators).
- Use only with stock 1.5 rocker arm ratio
- Produced 338hp and 389 ft-lbs of torque when matched with a Perfromer EPS 350-2701, and E-Street cylinder heads 350-5089 on a 350ci with 9.0:1.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandEDELBROCK
Package Height3.0
Package Width5.5
Package Length25.3
Weight13.35 PG
Part CategoryPerformance Parts
UsageStreet/Performance
Intake Valve Lift0.464 in (11.786 mm)
Int. Duration Advertised (Deg)N/A
Exh. Duration @ .050 In. (Deg)224
Rpm Range1000-5600
Lifter TypeHydraulic Flat Tappet
Exh. Duration Advertised (Deg)N/A
Part FitmentSemi Universal
Engine Make/SizeChevy Small Block (262-400)
Int. Duration @ .050 In. (Deg)218
Exhaust Valve Lift0.47 in (11.938 mm)
Vendor Part Number2117
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
