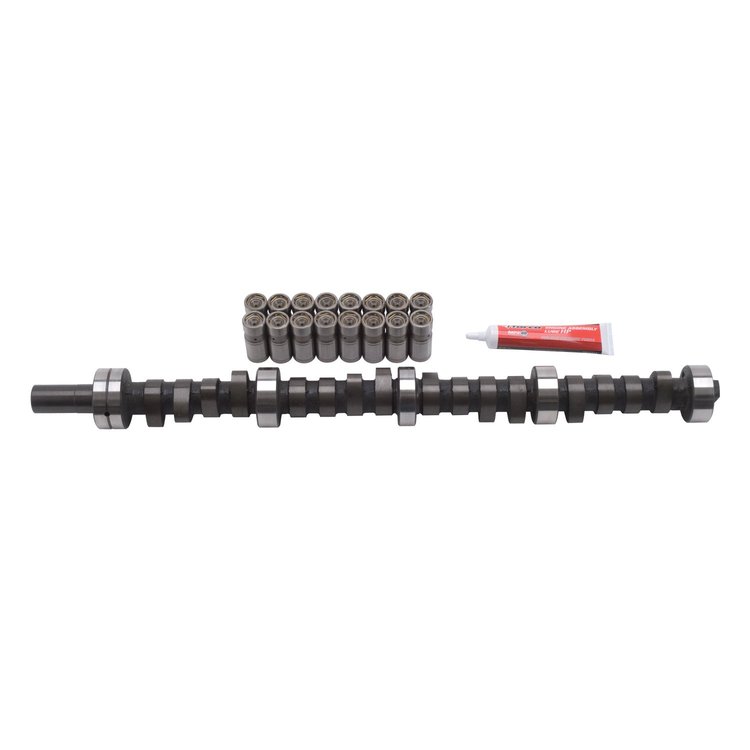

Performer-Plus Camshaft Kit for AMC 290-401

Vehicle Info Needed

EDELBROCKPART NUMBER: 350-2132

Performer-Plus Camshaft Kit for AMC 290-401

Name: Performer-Plus Camshaft Kit for AMC 290-401
Brand: EDELBROCK
SKU: 350-2132
Price: 390.95 USD
Availability: InStock

^$390⁹⁵

2 left in stock

Ships Tomorrow

Lowest Price Guarantee

AMC

AMC 290-401ci
Lift: .448"/.472"
Duration @ .050: 204°/214°
Advertised Duration: 278°/288°

Idle-5500 RPM Range

Duration Advertised	278° Intake/288° Exhaust
Duration @ .050'	204° Intake/214° Exhaust
Lift @ Valve	.448' Intake/.472' Exhaust
Lift @ Cam	.280' Intake/.295' Exhaust
Lobe Separation Angle	110°
Intake Centerline	105°
Intake Timing @ .050"	Open 3° ATDC Close 27° ABDC
Exhaust Timing @ .050"	Open 42° BBDC Close 8° BTDC
Vacuum @ 1000RPM Idle	15"

INSTALLATION NOTES:

Do not use late model timing sets. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7818 or similar set.
Use only with stock ratio rocker arms
Use with valve springs 350-5832 or 350-5932(rotators)
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit

BrandEDELBROCK

Package Height3.75

Package Width8.0

Package Length26.5

Weight15.71 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)214

Cam StyleHydraulic flat tappet

Exh. Duration Advertised (Deg)288

Locks IncludedNo

Engine Make/SizeAMC 290-401

Retainers IncludedNo

Intake Valve Lift With Factory Rocker Arm Ratio (I0.448

Int. Duration @ .050 In. (Deg)204

Assembly Lubricant IncludedYes

Basic Operating Rpm RangeIdle-5,500

Pushrods IncludedNo

Gaskets IncludedNo

Rocker Arms IncludedNo

Intake Valve Lift0.448 in (11.379 mm)

Computer-Controlled CompatibleNo

Int. Duration Advertised (Deg)278

Lobe Separation (Deg)110

Rpm Range0-6750

Lifter StyleHydraulic flat tappet

Advertised Duration278 int./288 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.472

Valve Springs IncludedNo

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.448 int./0.472 exh.

QuantitySold as a kit

Valve Stem Seals IncludedNo

Exhaust Valve Lift0.472 in (11.989 mm)

Advertised Intake Duration278

Intake Duration At 050 Inch Lift204

Exhaust Duration At 050 Inch Lift214

Timing Chain And Gears IncludedNo

Advertised Exhaust Duration288

Lifter TypeHydraulic Flat Tappet

Part FitmentSemi Universal

Duration At 050 Inch Lift204 int./214 exh.

Valve Springs RequiredYes

Lifters IncludedYes

Vendor Part Number2132

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
