Product Discontinued
EDELBROCKPART NUMBER: 350-21614U

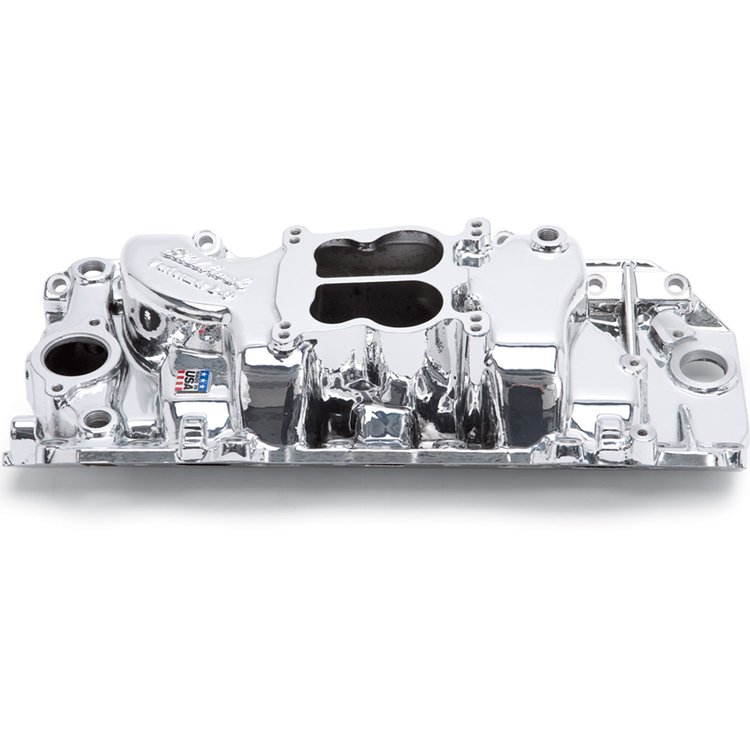

*USED - Performer 2-O Intake Manifold Big Block Chevy 396-502 (Oval Port)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Big Block Chevy 396-502ci
- *USED - Performer 2-O Intake Manifold
- Big Block Chevy 396-502 (Oval Port)
- 4-bbl Spread Bore Carb Flange (non-EGR)
- Idle-5500 RPM Range
- Endurashine Finish
- Designed for street big block Chevy 396-502 using general duty oval port cylinder heads
- Also fits 1965-90 oval port heads (does not fit tall block V8)
- Port Exit Dimensions: 1.70" x 1.68"
- Manifold Height: (A) 4.30", (B) 5.40" Click here to determine carburetor pad height
- Recommended Intake Gasket: JEGS p/n 555-210102
- For 396, 402, 427, and 454 with OE 4-bbl carb on 1965-73 non-CA passenger cars and 1966-83 trucks, Suburbans, and heavy vehicles except stock-equipped EGR
(NOTE: #350-3761 is for 1972-89 454 with OE 4-bbl carb) - Does not clear Corvette hood without modification
- Includes choke adapter #350-8961
Carb Recommendations/Notes
- OE 4-bbl Carburetor
- Uses automatic divorced choke rod #350-9179 with Q-Jet Carb
- Edelbrock 600 cfm Performer Carburetor #350-1405
- Edelbrock 650 cfm Thunder Series AVS Carburetor #350-1905
The following all work well for towing over 10,000 lbs:- Edelbrock 750 cfm Performer Carburetor #350-1407
- Edelbrock 800 cfm Performer Carburetor #350-1412
- Edelbrock 800 cfm Thunder Series AVS Carburetor #350-1812
Applies to the five carbs above:- Manual choke only
- Use stud, nut, and washer kit: JEGS 1-1/2' stud kit p/n 555-15840 or JEGS 2' stud kit p/n 555-15841
- Factory cruise control accepted
- Uses square flange carb adapter plate #350-2732
- Edelbrock 600 cfm Performer Carburetor #350-1406
- Edelbrock 650 cfm Thunder Series AVS Carburetor #350-1906
The following all work well for towing over 10,000 lbs:- Edelbrock 750 cfm Performer Carburetor #350-1411
- Edelbrock 800 cfm Performer Carburetor #350-1413
- Edelbrock 800 cfm Thunder Series AVS Carburetor #350-1813
Applies to the five carbs above:- Factory cruise control accepted
- Uses square flange carb adapter plate #350-2732
- Uses automatic divorced choke rod #350-9179 with Q-Jet Carb
BrandEDELBROCK
Package Height6.0
Package Width11.0
Package Length23.0
Weight18.5 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
