Made in USA

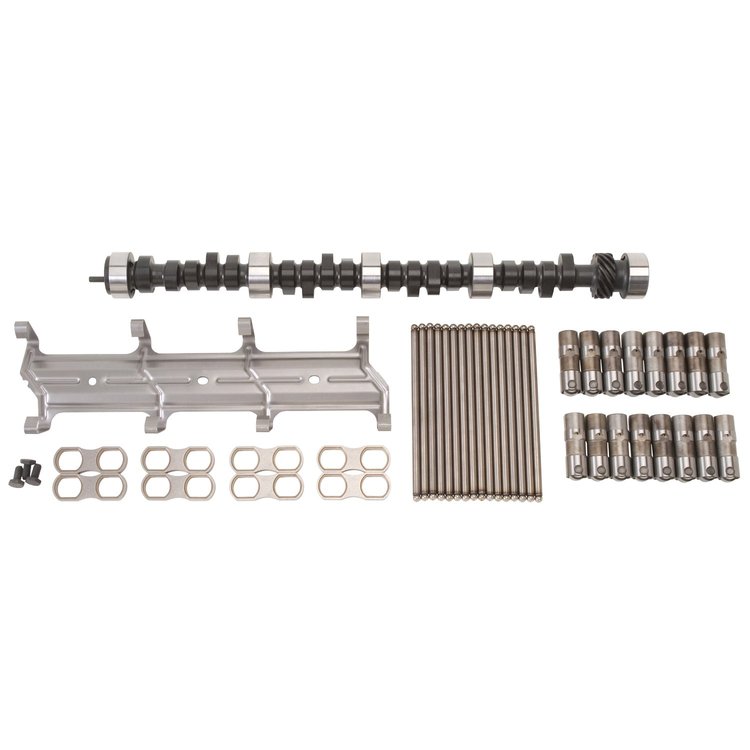

Rollin' Thunder Hydraulic Roller Camshaft Kit for 1987-Later Small Block Chevy 265-350
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-22096

Rollin' Thunder Hydraulic Roller Camshaft Kit for 1987-Later Small Block Chevy 265-350

$1,17595
ShippingShips on 10/20/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
    Rollin' Thunder Hydraulic Roller Camshaft Kit
  • 1987-Later Small Block Chevy 265-350ci
  • Lift: .462''/.479''
  • Advertised Duration: 280°/290°
  • Kit Includes Camshaft, Lifters, Hold-Down Spider, and Pushrods
  • Idle-5500 RPM Range

    Kit Includes: Rollin' Thunder Hydraulic Camshaft, hydraulic roller lifters, lifter guides, hold-down spider (only on 1987-later applications) and pushrods.

    Cam Notes: This camshaft works great when matched with Pro-Flo XT EFI system p/n 350-3528, andPerformer RPM E-Tec cylinder heads p/n 350-60979; this combo produces 408 HP / 450 ft.-lbs.of torque. (Test on a 383 c.i.d.) Uses stock hydraulic roller lifters and pushrods.

    Open 1° BTDC
    Close 33° ABDC
    Exhaust Timing @ .050" Open 48° BBDC
    Close 6° ATDC

    Important Application Information:
    Rollin Thunder Hydraulic Roller cams are for street high-performance and racingapplications only - not for heavy vehicles. Use with Edelbrock Performer RPM heads(or other aftermarket heads), adjustable valvetrain components, screw-in studs, high performance adjustable rocker arms and at least 9.5:1 compression ratio. Headers,high-energy ignitions, lower-than-stock rear gearing and a high-performance torqueconverter (in auto. transmission equipped vehicles) are necessary.

    INSTALLATION NOTES: Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7801.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft Kit
BrandEDELBROCK
Package Height3.43
Package Width7.75
Package Length25.75
Weight17.15 PG
Part CategoryPerformance Parts
Cam StyleHydraulic roller tappet
Locks IncludedNo
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.462
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,500-5,500
Pushrods IncludedYes
Gaskets IncludedNo
Rocker Arms IncludedNo
Computer-Controlled CompatibleNo
Lobe Separation (Deg)112
Lifter StyleHydraulic roller
Advertised Duration280 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.479
Valve Springs IncludedNo
Valve Lift With Factory Rocker Arm Ratio0.462 int./0.479 exh.
Camshaft Gear Attachment3-bolt
QuantitySold as a kit
Valve Stem Seals IncludedNo
Advertised Intake Duration280
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift222
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration290
Part FitmentSemi Universal
Duration At 050 Inch Lift212 int./222 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number22096
Package Qty1
Package TypeEA
