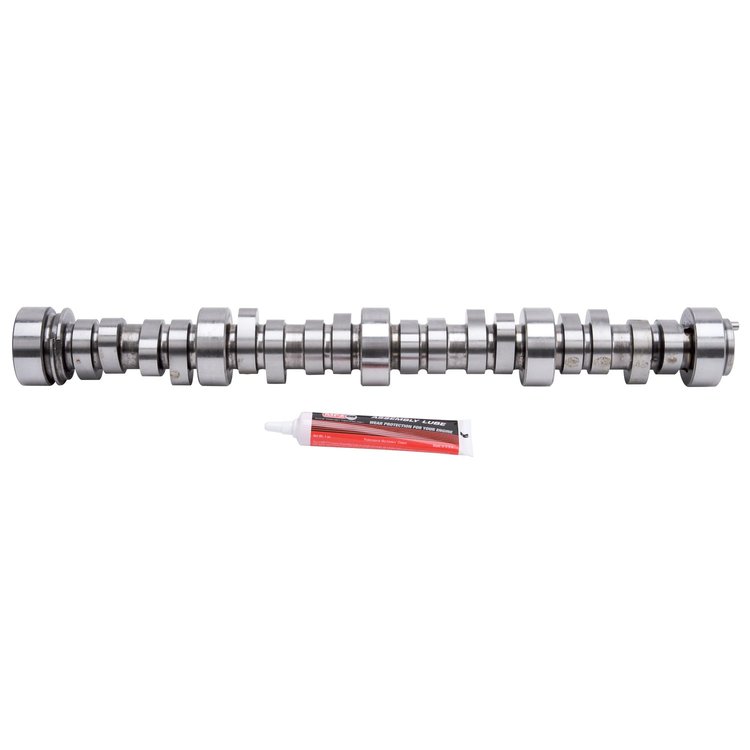

Rollin' Thunder Hydraulic Roller Camshaft for 1997-2004 Chevy LS1/LS6 Gen III
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-2216

Rollin' Thunder Hydraulic Roller Camshaft for 1997-2004 Chevy LS1/LS6 Gen III

$76795
ShippingShips on Oct 27, 2026
Lowest PriceLowest Price Guarantee
Currently Unavailable

This product is currently not available. Please call customer service for assistance at 1-800-345-4545.

Chevy LS1/LS6
    Rollin' Thunder Hydraulic Roller Camshaft
  • 1997-2004 Chevy LS1/LS6 Gen III
  • Lift: .540''/.540''
  • Duration @ .050: 230°/237°
  • Advertised Duration: 314°/322°
  • 1500-6500 RPM Range

    Cam Notes: This camshaft works great when matched w/ Performer RPM manifold p/n 350-71187,Thunder Series AVS carb p/n 350-1813 and E-CNC 215 cylinder heads p/n 350-79949; this comboproduces 460 HP / 424 ft.-lbs. of torque.
    Use with high stall torque converter only.

    Open 9° BTDC
    Close 41° ABDC
    Exhaust Timing @ .050" Open 52° BBDC
    Close 5° ATDC

    Important Application Information:
    Rollin Thunder Hydraulic Roller cams are for street high-performance and racingapplications only - not for heavy vehicles. Use with Edelbrock Performer RPM heads(or other aftermarket heads), adjustable valvetrain components, screw-in studs, high performance adjustable rocker arms and at least 9.5:1 compression ratio. Headers,high-energy ignitions, lower-than-stock rear gearing and a high-performance torqueconverter (in auto. transmission equipped vehicles) are necessary.

    INSTALLATION NOTES: These camshafts are designed to be used in engine swap applications using a CARBURETOR ONLY. They are not intended to be used in factory EFI-equipped LS1 vehicles.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandEDELBROCK
Package Height2.8
Package Width3.0
Package Length24.3
Weight10.2 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)237
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)322
Engine Make/SizeChevy Small Block LS1
Intake Valve Lift With Factory Rocker Arm Ratio (I0.54
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range1,500-6,500
Intake Valve Lift0.54 in (13.716 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)314
Lobe Separation (Deg)110
Rpm Range1500-6500
Advertised Duration314 int./322 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.54
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.540 int./0.540 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.54 in (13.716 mm)
Advertised Intake Duration314
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift237
Advertised Exhaust Duration322
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift230 int./237 exh.
Valve Springs RequiredYes
Vendor Part Number2216
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
