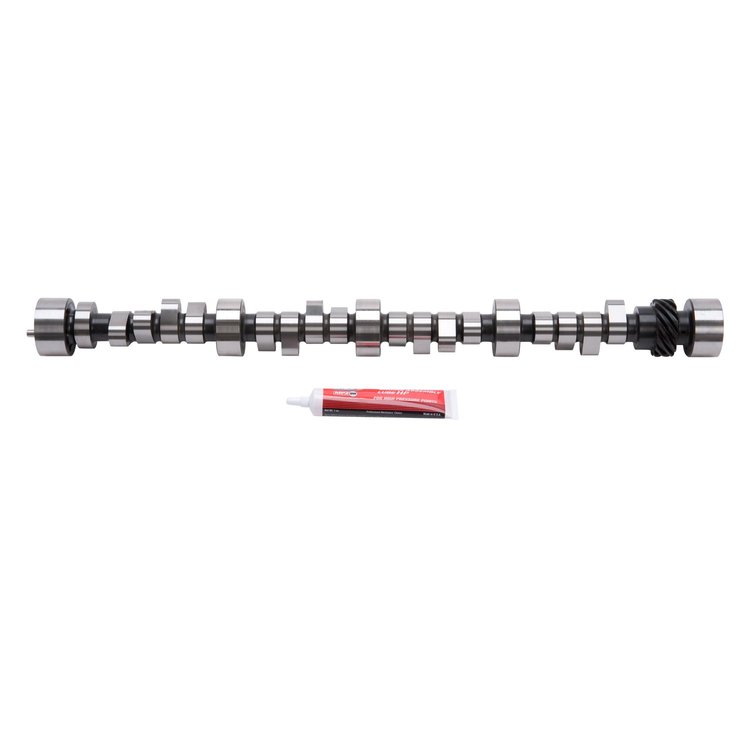

Rollin' Thunder Hydraulic Roller Camshaft for 1957-1986 Small Block Chevy 283-400

Name: Rollin' Thunder Hydraulic Roller Camshaft for 1957-1986 Small Block Chevy 283-400
Brand: EDELBROCK
SKU: 350-2231
Price: 717.95 USD
Availability: InStock

^$717⁹⁵

Ships Tomorrow

Lowest Price Guarantee

Small Block Chevy

1957-1986 Small Block Chevy 283-400ci
Lift: .594''/.594''
Duration @ .050: 242°/240°
Advertised Duration: 305°/314°

1500-6500 RPM Range

Cam Notes: Performance rating based on small block Chevy 383. This camshaft works great when matched with Performer RPM Air-Gap intakemanifold p/n 350-7516, Thunder Series AVScarb p/n 350-1813, and Performer RPM E-Tec cylinderheads p/n 350-60989; this combo produces 460 HP / 460 ft.-lbs. of torque.
Use with high stall torque converter only.
Use only stock ratio rocker arms.

Operating Range	1500-6500 RPM
Duration Advertised	305° Intake/314° Exhaust
Duration @ .050'	242° Intake/240° Exhaust
Lift @ Valve	.594' Intake/.594' Exhaust
Lift @ Cam	.396' Intake/.396' Exhaust
Lobe Separation Angle	112°
Intake Centerline	107°
Intake Timing @ .050"	Open 14° BTDC Close 48° ABDC
Exhaust Timing @ .050"	Open 57° BBDC Close 3° ATDC

Important Application Information:
Rollin Thunder Hydraulic Roller cams are for street high-performance and racingapplications only - not for heavy vehicles. Use with Edelbrock Performer RPM heads(or other aftermarket heads), adjustable valvetrain components, screw-in studs, high performance adjustable rocker arms and at least 9.5:1 compression ratio. Headers,high-energy ignitions, lower-than-stock rear gearing and a high-performance torqueconverter (in auto. transmission equipped vehicles) are necessary.

INSTALLATION NOTES: Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7800.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft

BrandEDELBROCK

Package Height3.6

Package Width3.7

Package Length24.9

Weight9.24 PG

Part CategoryPerformance Parts

UsageStreet/Performance

Intake Valve Lift0.594 in (15.088 mm)

Int. Duration Advertised (Deg)N/A

Exh. Duration @ .050 In. (Deg)240
