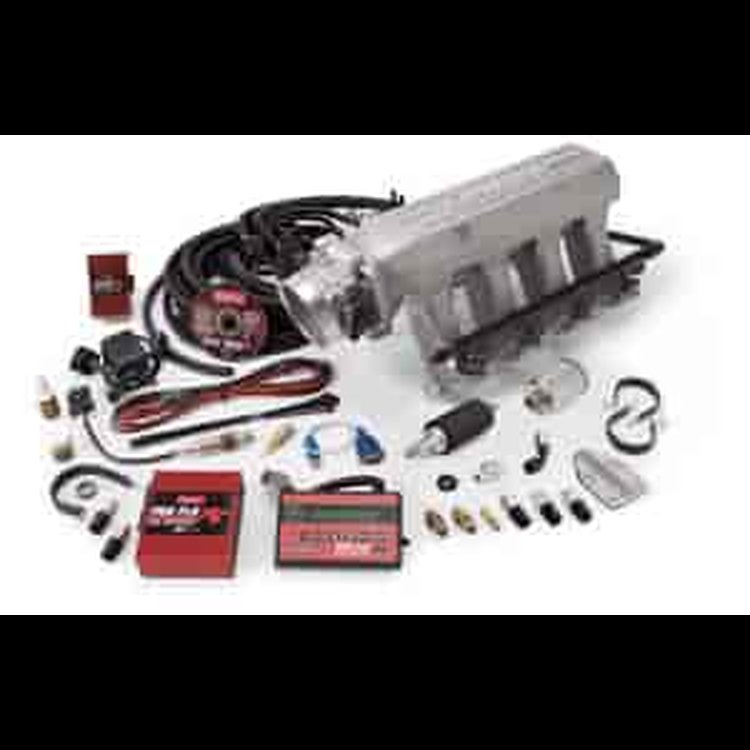

Pro-Flo XT Fuel Injection System LS Series Chevy

Product Discontinued

EDELBROCKPART NUMBER: 350-3529

Pro-Flo XT Fuel Injection System LS Series Chevy

Name: Pro-Flo XT Fuel Injection System LS Series Chevy
Brand: EDELBROCK
SKU: 350-3529
Price: 4499.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Complete Systems: Chevy LS-Series

LS Series Chevy
Up to 540 HP (35 lb/hr injectors)
Satin

Edelbrock has combined engineering and technology to bring consumers a more powerful, modern EFI system with user-friendly simplicity to LS1 owners. The Pro-Flo XT electronic fuel injection system includes a new, more powerful ECU (computer) featuring fully sequential injection, exclusive handheld calibration module for tuning on the fly without the use of a laptop cpu, pre-defined calibrations and wideband O2 sensor compatibility. If laptop tuning is desired, the user can tune via laptop through the Pro-Flo XT software (included). Pro-Flo XT also receives a new modern intake manifold design packaged with a 90mm front-mount throttle body. Complete systems include ecu, wiring harness, handheld tuning module, coil driver for factory coil-on-plug ignition, all electronic sensors, fuel system components, intake manifold, injectors, fuel rails, throttle body and software.
Installation Notes:
Manifold Dimensions: (A) 10.20", (B) 10.00", (C) 16.90', (D) 3.20'
Manifold not equipped with EGR.
Recommended intake gasket: Fel-Pro p/n 375-MS92438
Satin Finish

The Most Complete Fuel Injection System Available

Pro-Flo XT EFI Intake Manifold

Pro-Flo XT: The Most Complete EFI System Available
Ready-to-run bolt-on performance packages that include:

Intake manifold with fuel injectors, fuel rails, and throttle body
Preterminated 2-piece EFI harness
Engine control unit (ECU)
Narrowband O2 sensor
Handheld calibration module
Mallory distributor
Fuel pump, filter, and hose
Installation hardware

Pro-Flo XT software

Complete Wiring Harness
Unique 2-piece design offers quick connection of the engine and chassis harness at the bulkhead on the firewall for easy removal if needed.

Flash-Programmable ECU
Engineered by EFI Technology, a world leader in advanced electronic engine management, this control unit features flash-programmable memory and full-sequential injection (individual injector firing). Flash memory allows multiple tuning options, including Map-N (Speed Density) and Alpha-N (Speed Throttle). Map-N references RPM (engine speed) against MAP (manifold absolute pressure) to determine fuel and spark requirements; Alpha-N references RPM against throttle position. A base calibration is preloaded, and base calibrations for common performance engines are on the included CD (additional calibrations available at www.edelbrock.com). Create custom calibrations using Pro-Flo XT software. Closed loop fuel targets with included narrowband or optional wideband O2 controller are also supported.

Handheld Calibration Module
Edelbrock pioneered tuning on-the-fly fuel injection in 1995 with the original Pro-Flo that featured an exclusive handheld calibration module. Also included with the Pro-Flo XT, this unique module plugs into the ECU for fast access anytime. Save up to three calibrations. An easy-to-read display allows real-time adjustment of fuel, ignition, and RPM without a computer. Initial calibration, however, must be loaded with Pro-Flo XT software on a laptop or PC.

Pro-Flo XT Software
If laptop tuning is preferred, use Pro-Flo XT software for unlimited custom tuning and enhanced tuning resolution of fuel and spark maps. Tune, save, and restore as many custom calibrations as you want on your PC/laptop.

Pro-Flo XT EFI System At-a-Glance

New intake manifold design with late model LS-type 90mm throttle body

2-piece EFI harness

Flash-programmable ECU (no chip) has base calibration

Requires use of PC and included AC adapter for first-time base calibration selection

Full-sequential injection (individual injector firing)

Map-N/Speed Density & Alpha-N/Speed Throttle tuning strategies for fuel & spark requirements

Closed loop fuel control

Accepts one narrowband or wideband O2 sensor

Tune with handheld calibration module and store up to three base maps

4x6 fuel and 3x6 spark tables on calibration module

Real-time adjustments with module (or software once program has been saved/cycled for ECU)

Tune with laptop and store unlimited calibrations

11x16 load and RPM tables on laptop/PC

4-wire stepper idle motor

Adjustable rev limiter

Click Here for Intake Manifold Dimensions

Part TypeFuel Injection Kit

Product LineEdelbrock Pro-Flo XT EFI Systems

BrandEDELBROCK

Package Height10.13

Package Width11.5

Package Length30.75

Weight51.0 PG

Part CategoryPerformance Parts

Wiring Harness IncludedYes

Iat Sensor IncludedYes

Venturi Quantity1

Intake MaterialAluminum

Intake FinishNatural

Intake Manifold IncludedYes

Calibration Module IncludedYes

Distributor IncludedYes

Injection StyleMulti-port

Iac Motor IncludedYes

Fuel Pump IncludedYes

Engine Block StyleStock/OEM standard deck

Throttle Body FinishNatural

Venturi Diameter (Mm)90

Throttle Body IncludedYes

Metering StyleSpeed density (Map-N) and speed throttle (Alpha-N)

Fuel Pressure Regulator IncludedYes

QuantitySold as a kit

Injectors IncludedYes

Tps Sensor IncludedYes

Fuel Rails IncludedYes

Intake Section IncludedComplete

EgrWithout EGR

Ecm IncludedYes

Oxygen Sensor IncludedYes

Throttle Body MaterialCast Aluminum

Map Sensor IncludedYes

Vendor Part Number3529

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
