The Edelbrock Pro-Flo 4 EFI System is a direct bolt-on plug-and-play unit with advanced Android wireless Bluetooth ECU tuning that features a throttle body with advanced sequential port injecting for peak performance. This system is rated for up to 550 HP.

Features:

• Designed for 1970-1991 AMC 304, 360, 390 & 401 V8 engines
• Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control
• The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance
• The E-Tuner Software provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more.
• FREE E-tuner 4 app can be downloaded from the google play store
• Manifold height 5.74 in. with a carb angle of 0 degrees
• Self-learn is compatible with boost from turbochargers, positive displacement and centrifugal superchargers
• Rated for engines up to 550 horsepower

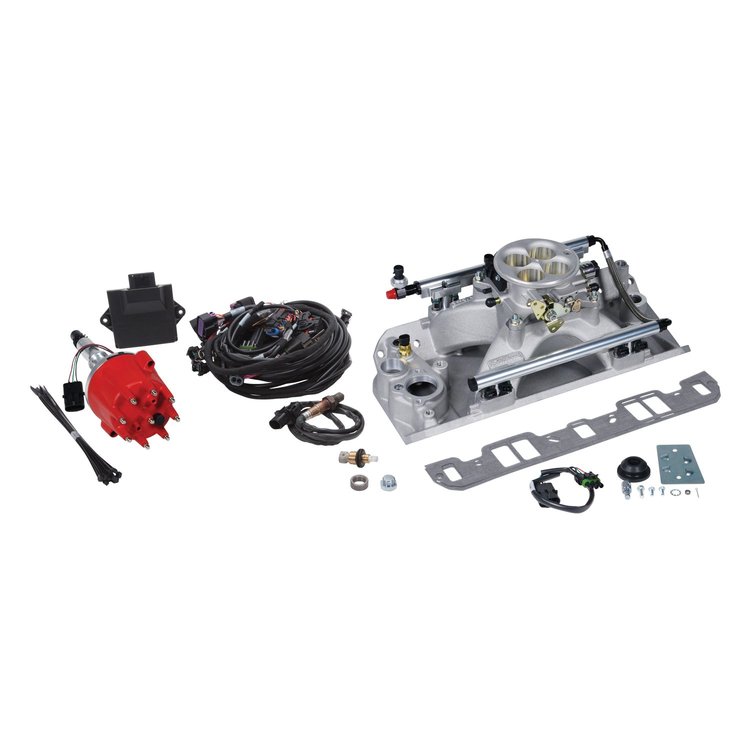

Includes:

• Direct bolt-on Victor Jr. style intake manifold
• 4150 Style throttle body with 4-1.750 in. Bore throttle plates
• 35 lb/hr injectors and fuel rails
• Distributor assembly designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events
• Intake manifold gaskets
• ECU with advanced processor technology and Bluetooth connectivity*
• Sensors & ECU, wire harness
• Standard oil fill location
• Raised PCV and baffle included in the kit

Note:

• Will require a high-pressure EFI fuel delivery system (sold separately)
• Can support up to 1,000 HP or 15 psi in boosted applications but may require the following components
  • 80 lb. Fuel Injectors 350-3522
  • 60 lb. Fuel Injectors 350-3697
  • 2-Bar Map Sensor 350-3542
  • TMap Sensor and Harness 350-3547
• Controlled via Bluetooth connectivity and app installed on iPhone or Android compatible device*

*E-Tuner 4 App: A key component to the Pro-Flo 4 EFI System is the E-Tuner 4 app. This app features dyno-developed base calibration which makes each system ready to run right out of the box. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance and multiple dash displays that monitor engine vitals. The E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing the use of most personal Android-based smartphones or tablets.

*E-Tuner 4 App Link:
