Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

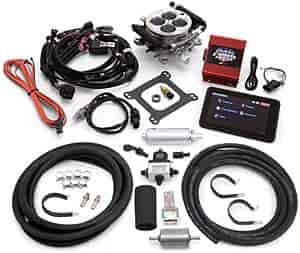

E-Street Electronic Fuel Injection Systems
- E-Street EFI System
- Base System with Return-Style Fuel Kit
- Includes 350-3604 High Pressure EFI Fuel System
- See Details For Kit Contents
Kit Includes: - 7" Tablet PC with tuning software pre-installed
- Throttle body with 60lb. injectors
- ECU
- Wide Band O2 Sensor
- Complete wiring harness
- Gaskets & all necessary hardware
- Return-Style Fuel Kit - 350-3604
Installation Notes:
This E-Street EFI system includes the Return-Style Fuel Kit that includes everything needed to upgrade a carbureted fuel system to a high pressure EFI system, excluding the fuel tank. This kit is a return-style and will complete the fuel system loop by returning unused fuel to the tank. Kit includes a 57 GPH (215 liter/hr) fuel pump, adjustable regulator, filter, Russell Twist-Lok hose, hose ends, mounting brackets and hardware. A baffled fuel tank is recommend to prevent fuel starvation. This system is rated for engines up to 600 HP, when used with an E-Street EFI system.
This system is supplied with the same GM style throttle linkage as all Edelbrock Performer and Thunder AVS carburetors. Chrysler applications will require the use of Edelbrock throttle linkage adapter p/n 350-1481 or p/n 350-1843 and Ford applications will require the use of throttle linkage adapter p/n 350-1483 or p/n 350-1844. Throttle body height: 3.25' (measured from the base to the air cleaner ring).
Part TypeFuel Injection System
BrandEDELBROCK
Package Height14.0
Package Width15.3
Package Length17.9
Weight26.08 PG
Part CategoryPerformance Parts
Cylinder Head TypeStandard
Engine Make/SizeUniversal V8
Vendor Part Number3602
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
