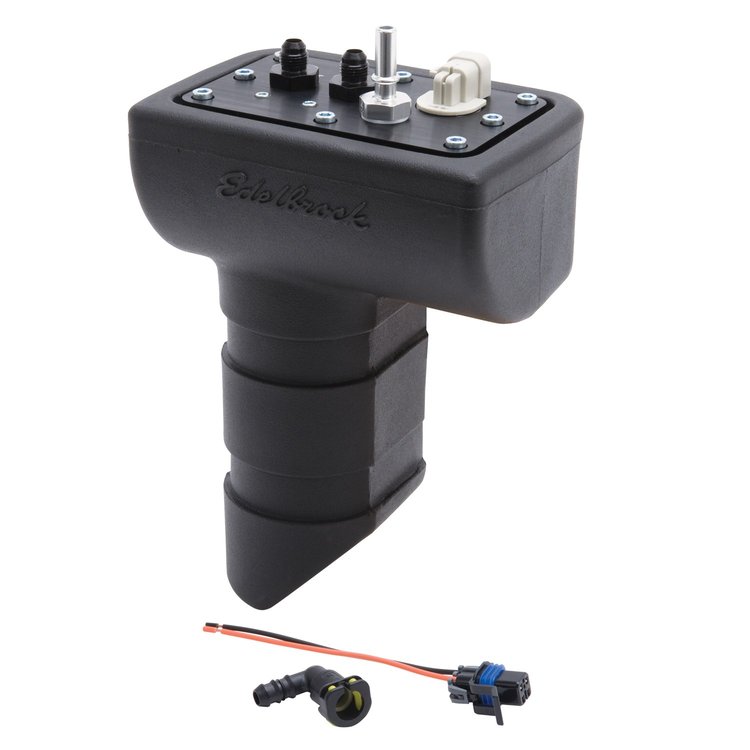

Replacement High Pressure EFI Sump Fuel Tank

Name: Replacement High Pressure EFI Sump Fuel Tank
Brand: EDELBROCK
SKU: 350-36052
Price: 521.99 USD
Availability: InStock

^$521⁹⁹

Ships Today

Lowest Price Guarantee

Sump Style

Replacement Universal EFI Sump Fuel Tank Only (58 psi)
Includes Sump Tank, Harness Pigtail & 90 Degree Quick Connect Fitting

Details:
Includes the fuel Sump Tank, Harness Pigtail & 90 Degree Quick Connect Fitting.
Can be used with any EFI system requiring a constant 58 psi fuel pressure.
Who should use this system?
Any vehicle with an existing low pressure fuel system. Any user desiring any easy installation that delivers reliable fuel pressure performance and no potential for starvation at low fuel levels. Performs well in all weather conditions.
Features & Benefits:
Supports up to 750 HP
Easy to install
No issue with fuel starvation, due to sloshing
No fuel tank modifications required
Maintains pressure at low fuel levels
Limitations:
Will not work for 750+ HP engines
Requires an existing mechanical or electric, low pressure pump in vehicle
Requires sufficient space to mount the sump in engine compartment
Requires Harness 350-36054 when installing with E-Street EFI system #3600
Only rated up to 600 hp when used with E-Street 1 or other aftermartket systems.
Fuel Sump dimensions: 13" H x 7.75" W x 5" D
Installation Diagrams:

Ready to Run Universal Throttle Body Electronic Fuel Injection!

Upgrade your carburetor to a more modern Electronic Fuel Injection system that allows complete control and adjustability without the time and hassle necessary for a complete multi-point engine management system. Edelbrock's E-Street EFI system provides excellent fuel economy and performance potential while keeping the installation process very simple.

What Is The E-Street EFI System?
The Edelbrock E-Street EFI is an all new universal throttle body style fuel injection system that supports up to 600 horsepower!. It's ideal for any V8 engine originally equipped with a carburetor and intake manifold with a square-bore 4150 style flange. E-Street EFI System features an easy to use software pre-installed on the supplied touch screen tablet. This software allows the user to fine tune, make adjustments and monitor system performance without the need of a laptop PC. E-Street EFI offers you the most value for your dollar along with out-of-the-box performance from a name you can trust... Edelbrock!

Throttle Body fits any square bore 4150-style intake manifold. Includes an easy-to-use 7'' touch screen tablet for quick tuning.

Features Include:

Ready to run right out of the box with a pre-loaded tune in the ECU to get you up and running quickly.
Wide Band O2 Sensor Included - Offers highly accurate monitoring in the 10 - 20 AFR range.
Dynamic Fuel Control - No tuning experience required. System provides self-mapping fuel curve to correct and dial in your tune.
Fully assembled and pressure tested throttle body with injectors, fuel rails, linkage and sensors that readily accepts round air cleaners for a traditional look.
Features progressive throttle linkage for great drivability and increased mileage potential.
Includes a fully assembled OEM quality wiring harness with pre-terminated connectors for an easy installation
Easy to use software pre-installed on the supplied 7'' touch screen tablet which also features - Wireless Bluetooth Connectivity between the ECU and the tablet. The tablet includes an Android operating system for added functionality with downloadable applications and future upgrades.
Create, modify and save unlimited tunes.
Installation instructions are included on the tablet.
Capable of controlling electric radiator fan(s) and A/C relays.
Includes pre-programmed dashboards for monitoring system performance.
Full feature software is simple to use for novice users, but also capable of complete control of all parameters for experienced EFI tuners.
System will automatically adjust for future engine upgrades.
Designed to perform under any and all weather and altitude conditions.
Designed, Cast, Machined and Assembled In The USA
