Vehicle Info NeededEDELBROCKPART NUMBER: 350-3686

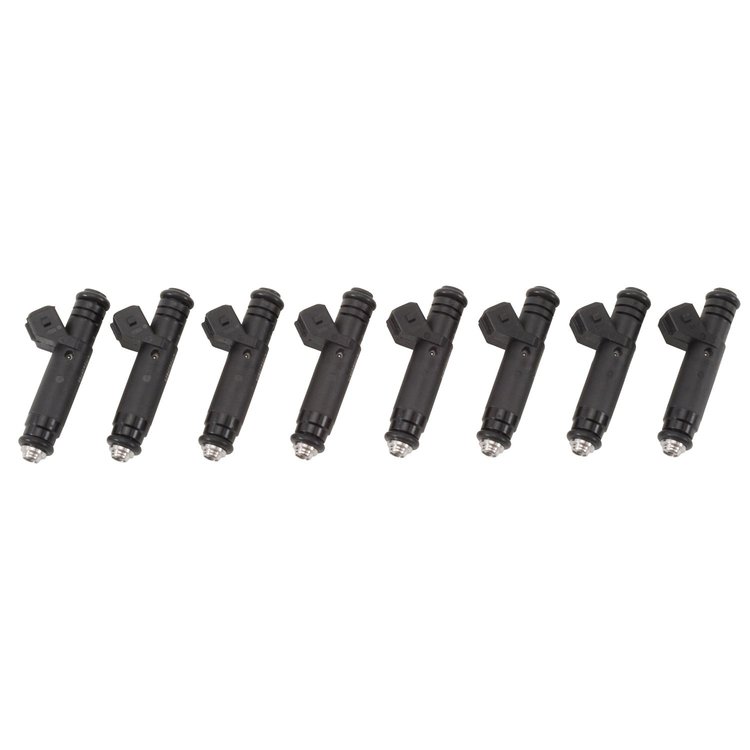

E-Force Fuel Injectors 60 lb/hr Minitimer Connector
$73895
Ships on 09/09/2026
Lowest Price GuaranteeFuel Injectors
- E-Force Fuel Injectors
- 60 lb/hr @ 43 psi , 85 lb/hr @ 87 psi
- High Impedance
- Minitimer Connector (EV1)
- Long Body (60mm)
- Set of 8
- Cone Spray
60 LB/HR - These 60 lb/hr fuel injectors are the perfect accessory for our Competition Supercharger systems. They are capable of supporting over 800 HP and feature Bosch style connectors. This fuel injector set is for use with Mustang E-Force Competition systems 350-1585, 350-1587 and 350-1589.Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeFuel Injector
BrandEDELBROCK
Package Height3.1
Package Width3.9
Package Length4.7
Weight0.87 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Overall Height1.865 in (47.4 mm)
Fuel Rate60 lbs./hr
Injector Plug StyleBosch/Amp-style
QuantitySold as a set of 8
Manifold O-Ring Outside Diameter0.574 in (14.58 mm)
Fuel Rail O-Ring Outside Diameter0.574 in (14.58 mm)
O-Rings IncludedYes
Injector Impedance14.9 ohms
Driver Type12V saturated circuit
Seat To Seat Height1.155 in (29.3 mm)
Injector Advertised Flow Rate (Lbs./Hr.)60
Part FitmentSemi Universal
Outside Diameter0.602 in (15.3 mm)
Vendor Part Number3686
Package Qty1
Package TypeEA
