Vehicle Info NeededEDELBROCKPART NUMBER: 350-3702

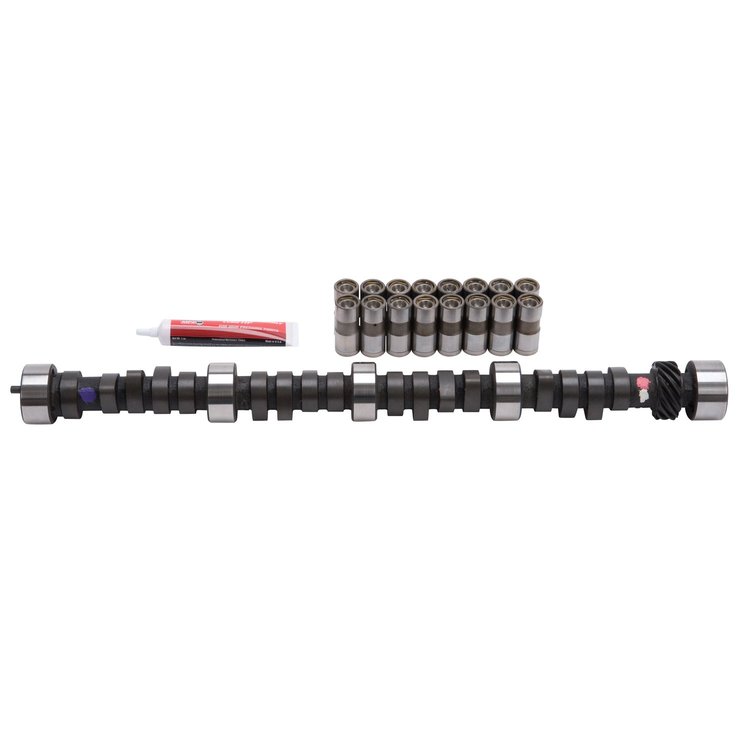

Performer-Plus Camshaft Kit Small Block Chevy 305-350 (TBI/LG4)
$38295
1 left in stock
Ships Today
Lowest Price GuaranteeChevy
- Performer-Plus Camshaft Kit
- 1976-1995 Small Block Chevy 305-350 (TBI/LG4)
- Lift: .398''/.442''
- Duration @ .050: 194°/214°
- Advertised Duration: 244°/264°
- Idle-5500 RPM Range
INSTALLATION NOTES:Duration Advertised 268° Intake/288° Exhaust Duration @ .050' 194° Intake/214° Exhaust Lift @ Valve .398' Intake/.442' Exhaust Lift @ Cam .265' Intake/.294' Exhaust Lobe Separation Angle 112° Intake Centerline 107° Intake Timing @ .050" Open 10° ATDC
Close 24° ABDCExhaust Timing @ .050" Open 44° BBDC
Close 10° BTDCVacuum @ 1000RPM Idle 16" - Do not use late model timing sets. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7802 or similar set.
- Use only stock or Edelbrock Springs 350-5802 or 350-5902 (for rotators).
- Use only with stock 1.5 rocker arm ratio
- For non-roller applications
- 50-State Legal E.O #D-215-19
Emissions Note:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-215-19
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft and Lifter Kit
BrandEDELBROCK
Package Height3.6
Package Width7.6
Package Length26.4
Weight13.25 PG
Part CategoryPerformance Parts
Carb Eo NumberD-215-19 (pdf)
Exh. Duration @ .050 In. (Deg)214
Cam StyleHydraulic flat tappet
Exh. Duration Advertised (Deg)264
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.398
Int. Duration @ .050 In. (Deg)194
Assembly Lubricant IncludedYes
Basic Operating Rpm RangeIdle-5,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.398 in (10.109 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)244
Lobe Separation (Deg)112
Rpm Range0-6750
Lifter StyleHydraulic flat tappet
Advertised Duration244 int./264 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.442
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.398 int./0.442 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.442 in (11.227 mm)
Advertised Intake Duration244
Intake Duration At 050 Inch Lift194
Exhaust Duration At 050 Inch Lift214
Timing Chain And Gears IncludedNo
Advertised Exhaust Duration264
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift194 int./214 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part Number3702
Package Qty1
Package TypeEA
