EDELBROCKPART NUMBER: 350-3970
Victor Series 90mm Billet Aluminum Throttle Body for Cable-Driven LS Gen III and IV [Satin]
$32695

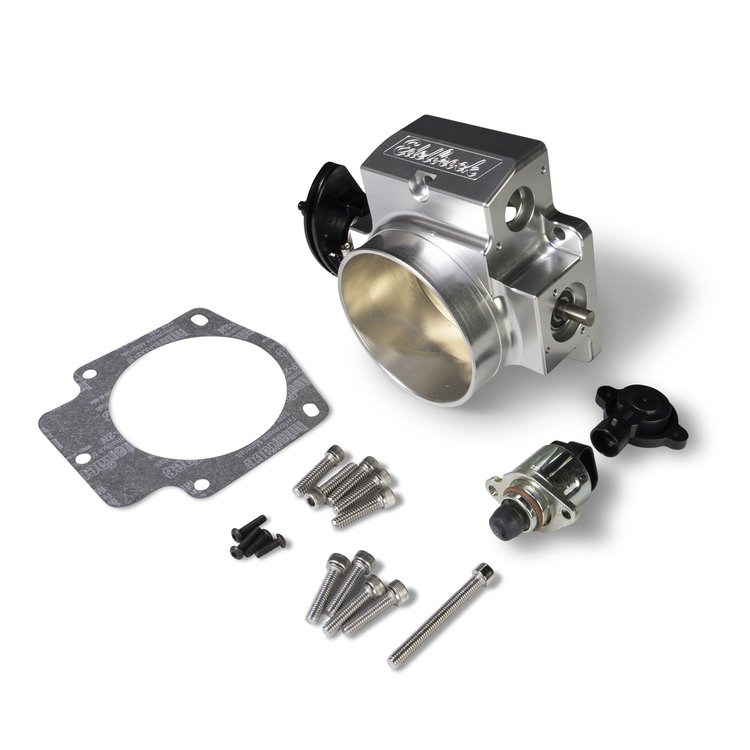

Victor Series 90mm Billet Throttle BodyFor Cable-Driven Gen III and IV LS Applications 1000 CFM Airflow Rating Billet Aluminum, Clear Anodized Satin Finish Idle Air Control Motor Included Gasket and Hardware Included
Mechanically identical to the black anodized version, finished clear instead, which suits a satin or polished engine bay. Cable-driven only, so confirm your car is not drive-by-wire before ordering. At 90 mm and 1000 CFM it is sized for an engine that already flows well, and billet construction means the throttle shaft bores are machined rather than cast.
Edelbrock 3970 Victor Throttle Body Specifications:
- 90 mm bore, 1000 CFM airflow rating.
- Billet aluminum construction, clear anodized satin finish.
- For cable-driven Gen III and IV LS applications.
- Idle air control motor, gasket and hardware included.
- Fuel injectors are not included. Not for drive-by-wire throttle systems.
Part TypeThrottle Body
BrandEDELBROCK
Package Height0.005
Package Width0.008
Package Length0.008
Weight6.0 PG
Part CategoryPerformance Parts
Venturi QuantitySingle
Throttle Body FinishClear Anodized
Hardware IncludedYes
Throttle Position Sensor IncludedYes
Airflow Rate1000cfm
Gasket Or Seal IncludedYes
Fuel Injectors IncludedNo
Idle Air Control Motor IncludedYes
Part FitmentSemi Universal
Throttle Body MaterialBillet Aluminum
Bore Diameter90mm
Throttle Body TypeMulti Port Injection
Vendor Part Number3970
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
