Made in USA

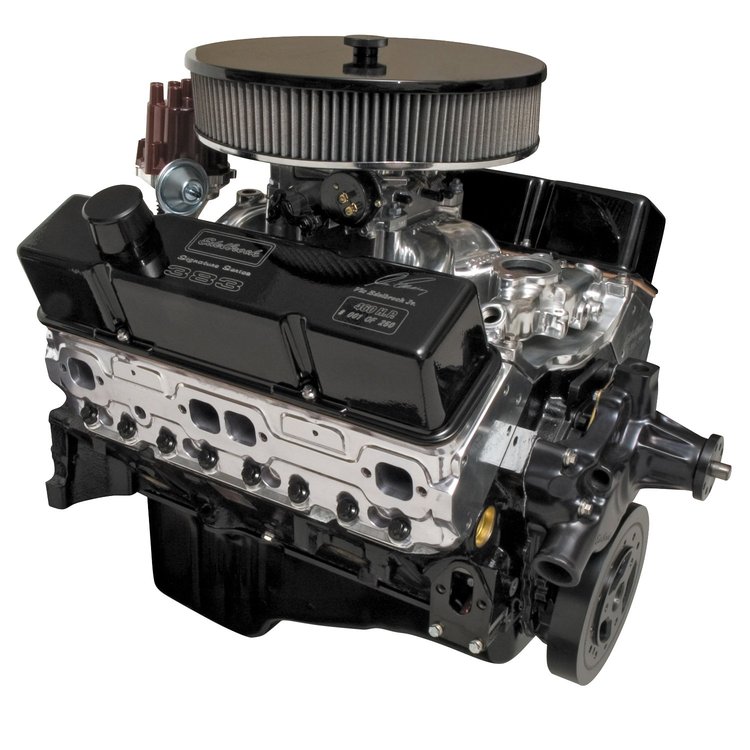

Signature Series 383 Small Block Chevy 460hp Crate Engine
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-46213

Signature Series 383 Small Block Chevy 460hp Crate Engine

$15,28395
Truck Freight
ShippingShips Tomorrow
ShippingFree shippingLowest PriceLowest Price Guarantee

    Signature Series 383 Small Block Chevy
  • Small Block Chevy 383ci
  • 460hp / 460tq
  • Polished E-Tec 200 Cylinder Heads

  • 460 HP And 460 ft./lbs. Torque
  • Limited To 250 Serialized Total Production
  • Certificate Of Authenticity From Edelbrock Corp.
  • Laser-Etched Valve Covers/Air Cleaner
  • Custom Assembled By Edelbrock Technicians
  • High Quality Edelbrock Aluminum Heads
  • New GM ZZ383 Short Block
  • 24 Month/Unlimited Mileage Warranty

    ENGINE OIL: The engine is supplied with Edelbrock Break-In Oil in the crate. Before starting the engine, you will need to prime the oil system. Do not turn the engine over with starter motor for priming. Mark the distributor, as it comes preset on #1 cylinder. Then, remove and use a priming tool to turn the pump shaft.

    Change the engine oil no more than 300 miles after break-in.  Use of oil with zinc or a zinc additive for the life of your engine is recommended.



    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Limited Edition, Only 250 Produced

This special GM ZZ383 short block offers umatched performance and collectibility. Edelbrock technicians assembled the Signature Series 383 by hand with polished E-Tec aluminum heads, polished RPM Air-Gap intake manifold, custom spec cam, specially-anodized Edelbrock water pump, and custom powdercoated air cleaner and valve covers. The valve covers feature each motor's serial number and Vic Edelbrock Jr's laser-etched signature. 2 year/unlimited mileage warranty and certificate of authenticity from Edelbrock included.

Show More

Specifications
Block: GM ZZ383
Horsepower: 460
Torque: 460
Bore/Stroke: 4.000" x 3.800"
Compression Ratio: 9.5:1
Max Recommended RPM: 6500
Crankshaft: Forged steel
Pistons: Hypereutectic
Rods: Powdered metal
Camshaft: Hydraulic roller
Rocker Arms: 1.5:1 aluminum roller
E-Tec 200 Cylinder Heads:
  • 200cc Int/80cc Exh runner
  • Stainless 2.02" Int/1.60" Exh valves
Carburetor: Thunder Series AVS 800 cfm
Distributor: MSD Pro Billet w/Blaster 2 coil
Valve Covers: Edelbrock Laser etched
Air Cleaner: Edelbrock Laser etched
2 Year/Unlimited Mileage Warranty:
  • $0 deductible
  • Rental reimbursement
  • Towing benefit
Part TypeCrate Engine
Product LineEdelbrock Performer RPM E-Tec Signature Series Crate Engine
BrandEDELBROCK
Package Height27.5
Package Width30.0
Package Length40.0
Weight449.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedNo
Cylinder Head MaterialAluminum
Air Cleaner IncludedNo
Carburetor IncludedYes
Carb Eo NumberN/A
Water Pump IncludedYes
EmissionNot Legal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedYes
Engine Make/SizeChevy Small Block
Flywheel IncludedNo
Engine TypeCrate Engine
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower460
Distributor IncludedYes
FinishPolished
Camshaft StyleHydraulic roller tappet
Engine Block MaterialCast iron
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedNo
Harmonic Balancer IncludedYes
QuantitySold individually
Rpm Power Range1500-6500
Engine BalanceInternal
Oil Pan IncludedYes
Part FitmentSemi Universal
Engine Displacement383 ci.
Timing Cover IncludedYes
Spark Plugs IncludedNo
Vendor Part Number46213
Package Qty1
Package TypeEA
