Made in USA
5072 E-Street Cylinder Heads for Small Block Chevy Bare
Product Discontinued
EDELBROCKPART NUMBER: 350-5072

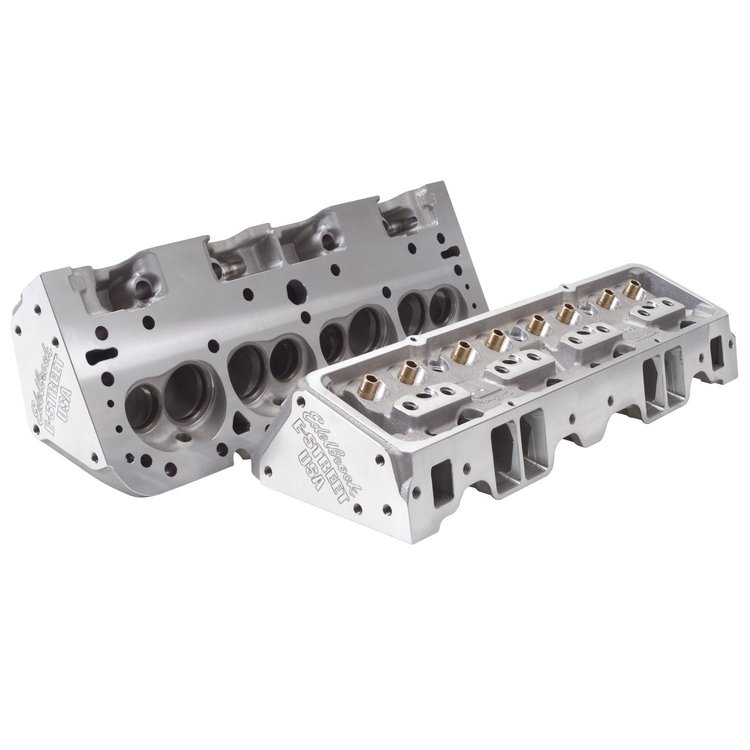

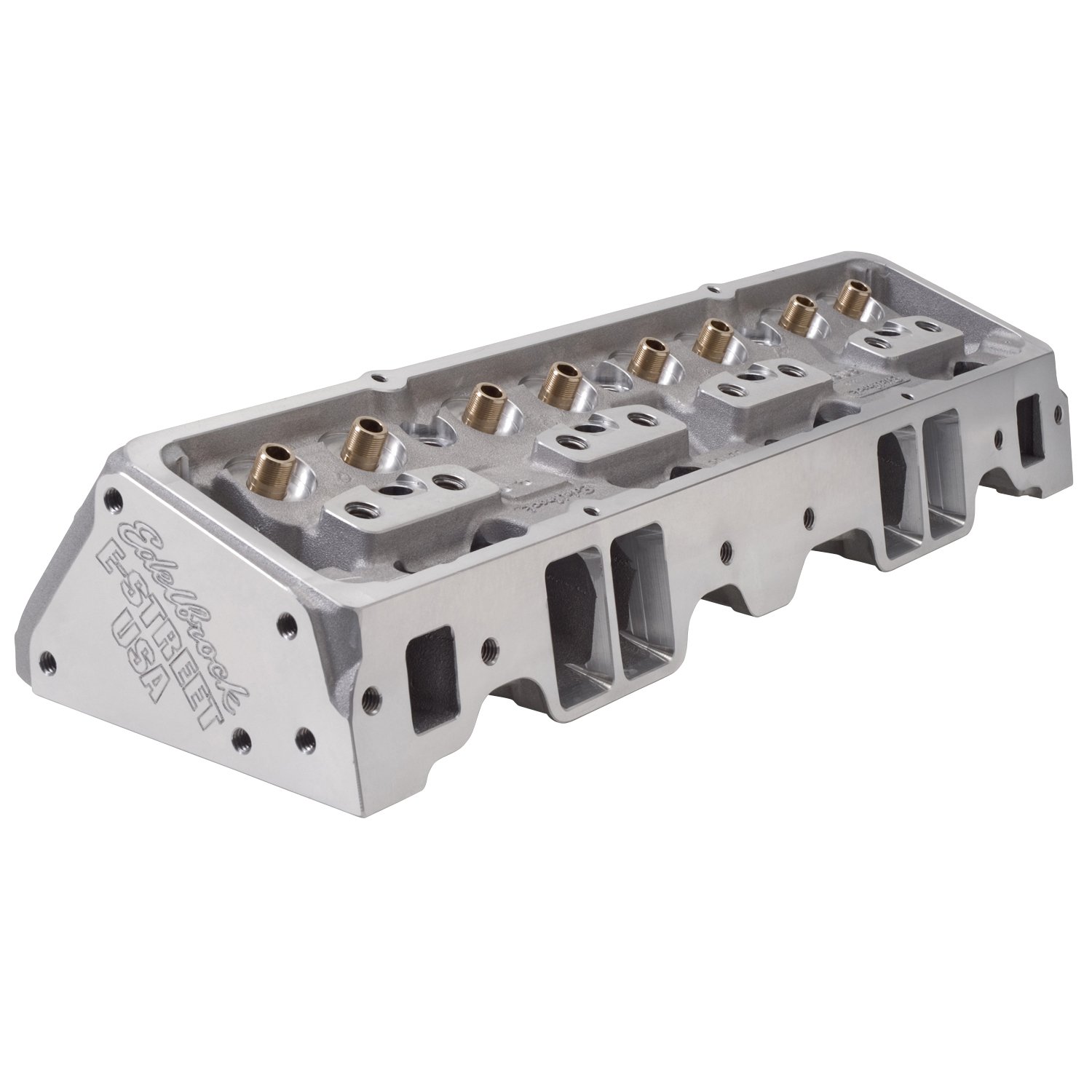

5072 E-Street Cylinder Heads for Small Block Chevy Bare

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Small Block
  • 1986 & Earlier Small Block Chevy
  • Port Volumes: 185cc/60cc
  • 70cc Combustion Chambers
  • Bare, Sold In Pairs

    Specifications:

  • Chamber Volume: 64cc
  • Deck Thickness: 9/16"
  • Valve Spring Diameter: 1.25"
  • Max Lift: .550"
  • Valve Spring Installed Height: 1.750"
  • Rocker Studs: 3/8" with Guide Plate
  • Pushrod Diameter: 5/16"
  • Intake Port Volume: 185cc
  • Intake Valve Diameter: 2.02"
  • Exhaust Port Volume: 60cc
  • Exhaust Valve Diameter: 1.60"

    Technical Notes:
    Recommended spark plugs are Champion RC12YC or equivalent 14mm x ¾" reach with flat gasket seat. Requires hardened pushrods. Staight plug heads.


    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2O
    Valve Lift .100" .200" .300" .400" .500" .600" .700"
    Intake 63 125 182 225 248 249 -
    Exhaust 51 99 131 153 163 168 -

    Affordable Aluminum Performance Built for the Street

    Edelbrock E-Street cylinder heads deliver proven aluminum performance for street-driven muscle cars, hot rods, and performance trucks. Manufactured in the USA from A356 T-6 heat-treated aluminum, E-Street heads are engineered to provide improved airflow, efficient combustion chamber design, and reliable durability for entry-level to moderate-performance engine combinations. Larger-than-stock intake and exhaust runners help increase horsepower, broaden torque curves, and improve throttle response while maintaining excellent street manners in idle-to-5,500 RPM operating ranges. Fully assembled with premium components including stainless steel valves, manganese bronze valve guides, hardened spring cups, and screw-in rocker studs, Edelbrock E-Street cylinder heads offer enthusiasts an affordable upgrade with the quality, fitment, and engineering expected from one of the most trusted names in performance engine components.

Part TypeCylinder Head
Product LineEdelbrock E-Street Cylinder Heads
BrandEDELBROCK
Package Height9.0
Package Width12.0
Package Length24.5
Weight58.4 PG
Part CategoryPerformance Parts
Vendor Part Number5072
Package Qty1
Package TypeEA
