Vehicle Info NeededEDELBROCKPART NUMBER: 350-5085

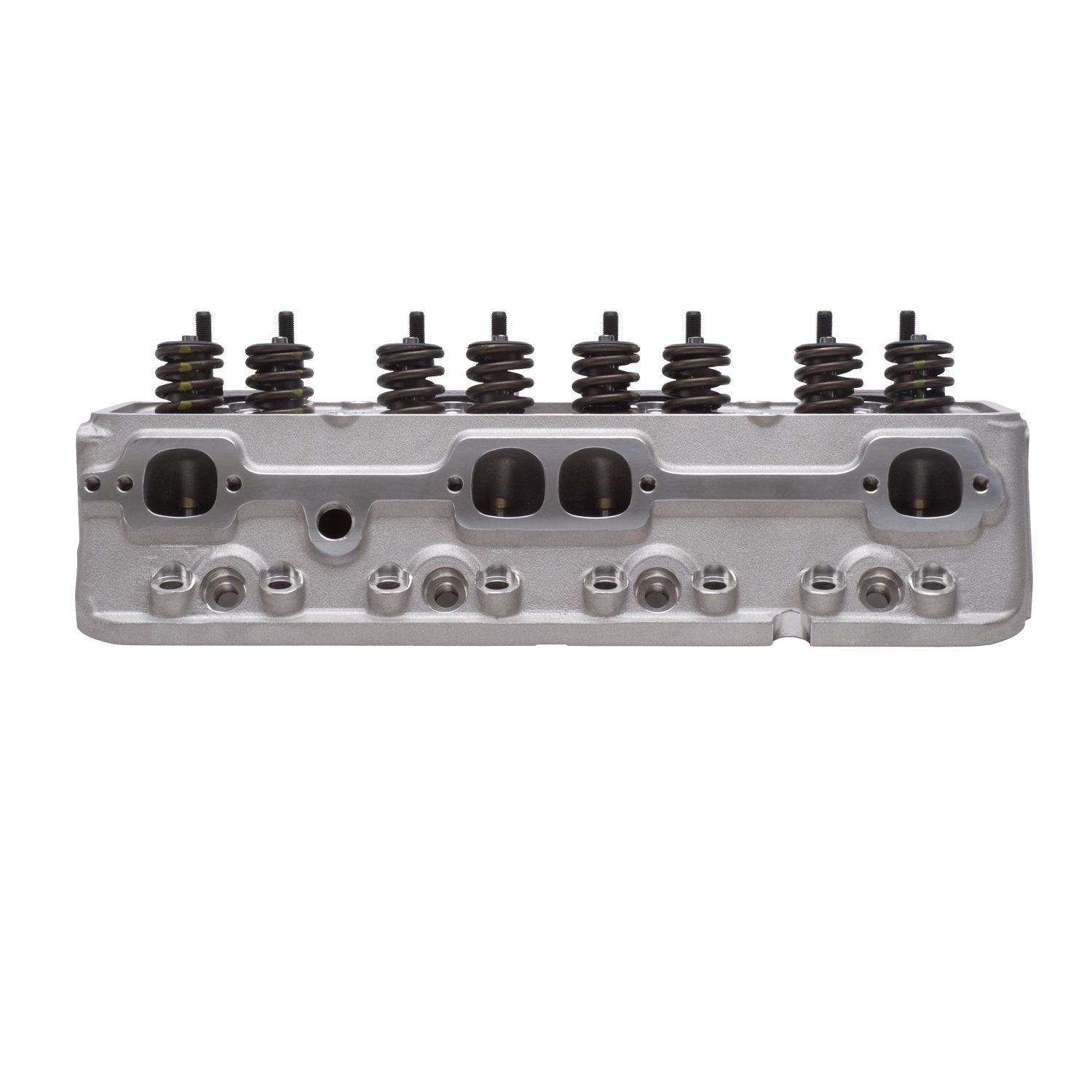

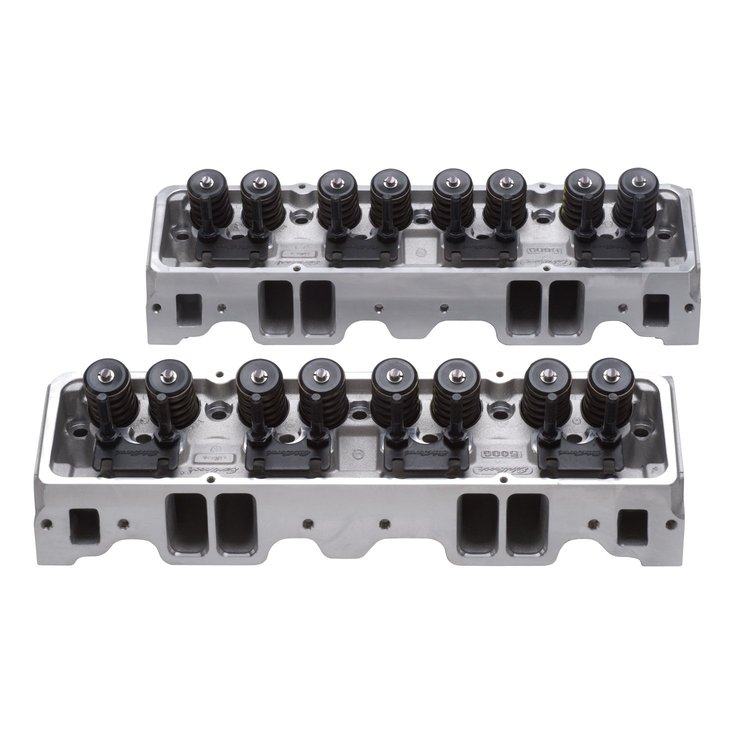

E-210 Series Aluminum Cylinder Heads for Small Block Chevy
$2,16895
Ships Tomorrow
Lowest Price GuaranteeE-210 Series Aluminum Cylinder Heads
- Small Block Chevy 302-400ci
- Equipped With Springs For Hydraulic Flat Tappet
- Port Volume: 210cc/75cc
- Valve Size: 2.08"/1.60"
- Chamber Size: 64cc
- Complete Heads, Sold in pairs
Technical Notes: - Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
- Requires hardened pushrods. Recommend Edelbrock 350-9629 for flat tappet cams only
- If using stock rockers, use .100" longer than stock pushrods.
- Can not be used on engines with less than a 4" bore except with cams having less than .450" lift.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height9.2
Package Width12.3
Package Length25.2
Weight59.38 PG
Retainers IncludedYes
Guideplates IncludedYes
Oiling StyleThrough pushrod
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Spark Plug StyleStraight
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.08 in (52.832 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeChevy Small Block (262-400)
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle23
Maximum Valve Lift0.575 in (14.605 mm)
Valve Seat MaterialPowdered metal
FinishPolished
Valve Springs IncludedYes
UsageCompetition
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold as a pair
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)62
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)64
Machined For O-RingNo
PreparationBolt On (Not Required)
Exhaust Valve Angle23
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StyleUmbrella
Intake Runner Volume (Cc)210
Cnc-Machined Exhaust RunnerNo
Vendor Part Number5085
Package Qty1
Package TypeEA
No Questions
No Reviews
