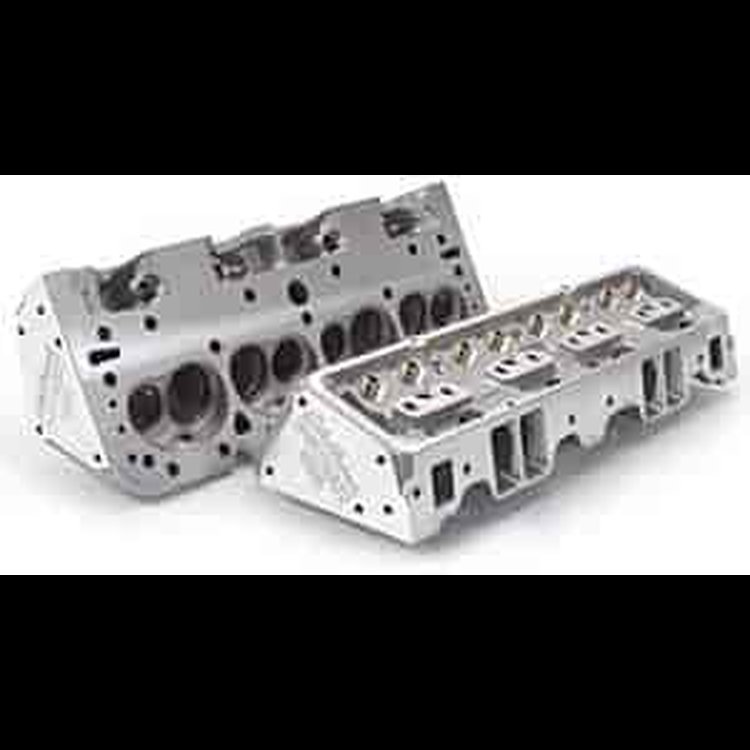

5088 E-Street Cylinder Heads 1986 & Earlier Small Block Chevy 185cc Intake Ports 64cc Combustion Chambers
Product Discontinued
EDELBROCKPART NUMBER: 350-5088

5088 E-Street Cylinder Heads 1986 & Earlier Small Block Chevy 185cc Intake Ports 64cc Combustion Chambers

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Small Block
    E-Street Cylinder Heads
  • 1986 & Earlier Small Block Chevy
  • 185cc Intake Ports
  • 64cc Combustion Chambers
  • 2.02"/1.60" Valves
  • 1.46" Valve Springs
  • Max Lift: .550"
  • 3/8" Rocker Stud
  • Straight Plug
  • Bare, Sold In Pairs


    Specifications:

  • Chamber Volume: 70cc
  • Deck Thickness: 9/16"
  • Valve Spring Diameter: 1.25"
  • Max Lift: .550"
  • Valve Spring Installed Height: 1.750"
  • Rocker Studs: 3/8" with Guide Plate
  • Pushrod Diameter: 5/16"
  • Intake Port Volume: 185cc
  • Intake Valve Diameter: 2.02"
  • Exhaust Port Volume: 60cc
  • Exhaust Valve Diameter: 1.60"

    Technical Notes:
    Use with hydraulic camshafts less than .550" max lift. Not Compatible with hydraulic roller camshafts. Recommended spark plugs are Champion RC12YC or equivalent 14mm x ¾" reach with flat gasket seat. Requires hardened pushrods. Straight plug heads.


    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2O
    Valve Lift .100" .200" .300" .400" .500" .600" .700"
    Intake 63 125 182 225 248 249 -
    Exhaust 51 99 131 153 163 168 -
Part TypeCylinder Head
BrandEDELBROCK
Package Height9.0
Package Width12.0
Package Length24.5
Weight58.7 PG
Part CategoryPerformance Parts
Vendor Part Number5088
Package Qty1
Package TypeEA
