EDELBROCKPART NUMBER: 350-5089U

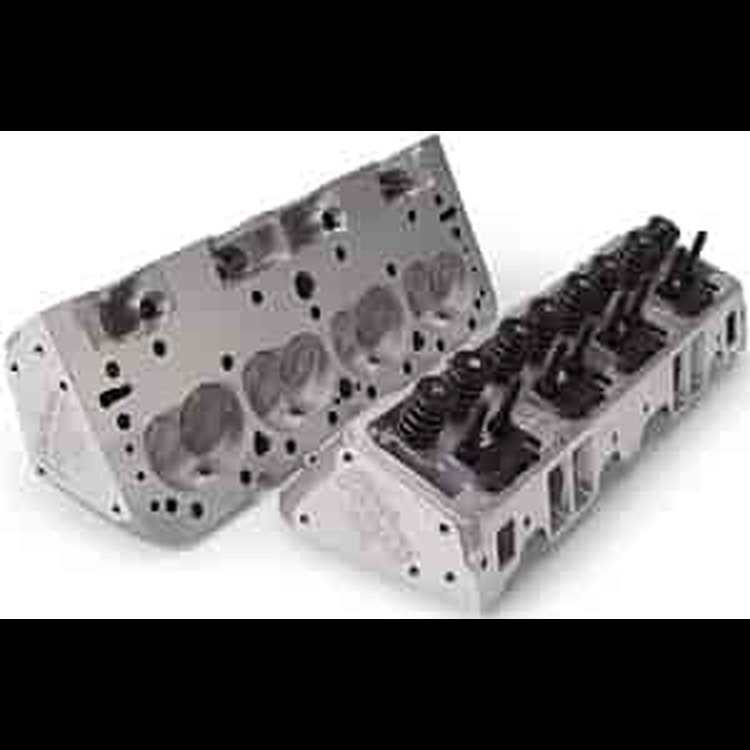

5089 *USED - E-Street Cylinder Heads 1986 & Earlier Small Block Chevy 185cc Intake Ports 64cc Combustion Chambers
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Small Block
- *USED - E-Street Cylinder Heads
- 1986 & Earlier Small Block Chevy
- 185cc Intake Ports
- 64cc Combustion Chambers
- 2.02"/1.60" Valves
- 1.46" Valve Springs
- Max Lift: .550" Hydra Flat Tappet
- 3/8" Rocker Stud
- USED
Specifications:
- Chamber Volume: 64cc
- Deck Thickness: 9/16"
- Valve Spring Diameter: 1.46"
- Max Lift: .550"
- Valve Spring Installed Height: 1.750"
- Rocker Studs: 3/8" with Guide Plate
- Pushrod Diameter: 5/16"
- Intake Port Volume: 185cc
- Intake Valve Diameter: 2.02"
- Exhaust Port Volume: 60cc
- Exhaust Valve Diameter: 1.60"
Technical Notes:
Use with hydraulic camshafts less than .550" max lift. Not compatible with hydraulic roller camshafts. Recommended spark plugs are Champion RC12YC or equivalent 14mm x ¾" reach with flat gasket seat. Requires hardened pushrods. Staight plug heads.
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2OValve Lift .100" .200" .300" .400" .500" .600" .700" Intake 63 125 182 225 248 249 - Exhaust 51 99 131 153 163 168 -
BrandEDELBROCK
Package Height15.0
Package Width24.0
Package Length36.0
Weight40.0 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
