Product Discontinued
EDELBROCKPART NUMBER: 350-5806

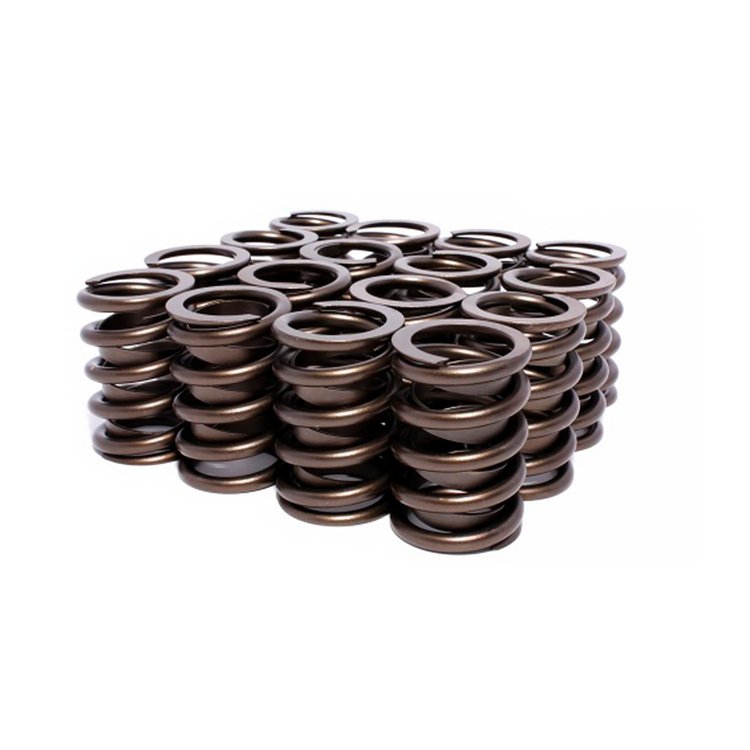

Sure Seat Valve Springs for 1961-1976 Ford FE 390-428 OE Cast Iron Head Non-Rotator
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Big Block Ford
- Sure Seat Valve Springs
- 1961-1976 Ford FE 390-428
- Outside Diameter: 1.458"
- Inside Diameter: 1.620"
- Seat Pressure: 90 lbs
- Installed Height: 1.820"
- Coil Bind: 1.320"
- Cast Iron OE Heads
- Non-Rotator
- For Use With Original Equipment Cast Iron Heads Only
- Designed for use with 350-2106 Performer cams
- Open Pressure: 220 lbs @ .440"
Part TypeValve Spring
BrandEDELBROCK
Package Height2.4
Package Width3.6
Package Length12.6
Weight4.44 PG
Part CategoryPerformance Parts
CoatedNo
Coil Bind HeightOEM
Damper Spring IncludedNo
PositionExhaust Or Intake
Open Height1.82 in (46.2 mm)
Open Pressure (Lbs.)220
Installed Pressure (Lbs.)90
QuantitySold as a set of 16
Installed Height1.82 in (46.228 mm)
Inside Diameter Of Inner Spring1.062 in (26.975 mm)
Valve Spring StyleStandard
Outside Diameter Of Outer Spring1.458 in (37 mm)
Inside Diameter Of Outer Spring1.062 in (26.975 mm)
Inside Diameter1.062 in (26.975 mm)
Spring TypeSingle
Spring Rate (Lbs./In.)N/A
Part FitmentSemi Universal
Outside Diameter1.458 in (37 mm)
Number Of Springs Per ValveSingle
Camshaft TypeMechanical
Vendor Part Number5806
Package Qty1
Package TypeEA
