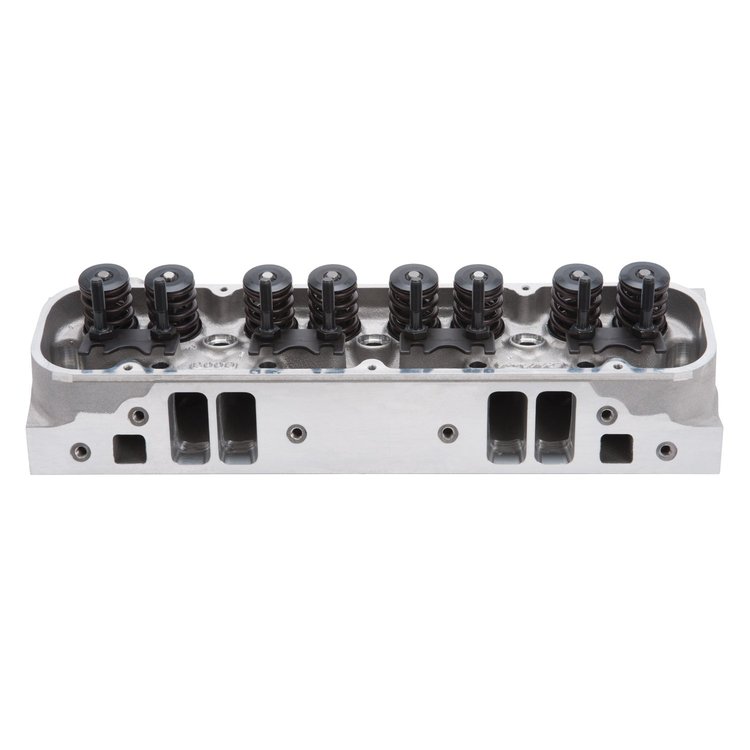

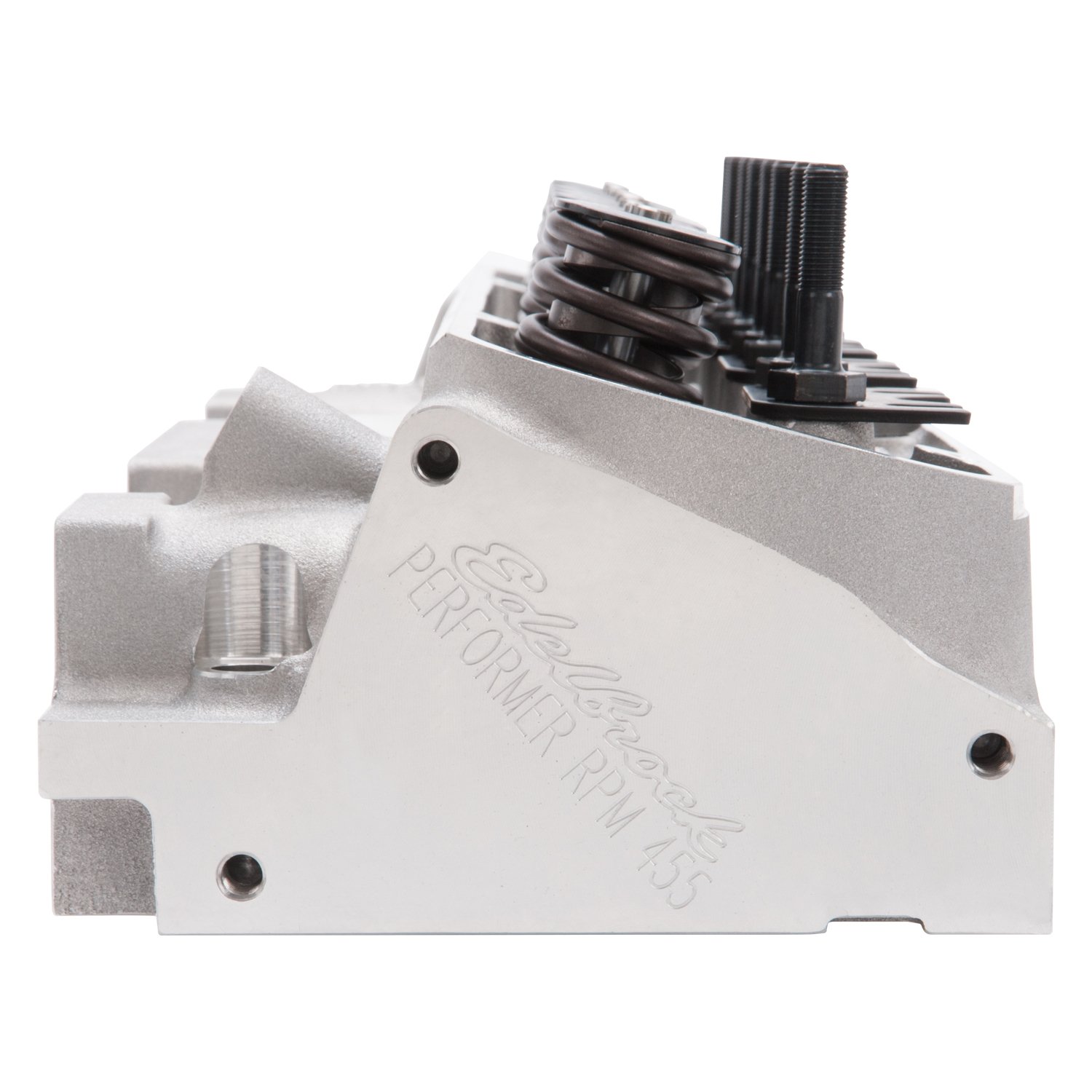

60049 Performer RPM Cylinder Head for Buick Big Block 400,430, 455ci
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-60049

60049 Performer RPM Cylinder Head for Buick Big Block 400,430, 455ci

$1,74295
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Buick Performer RPM Aluminum Cylinder Heads
    Buick Performer RPM Cylinder Head
  • 400-455ci
  • 215cc Intake Ports
  • 68cc Combustion Chambers
  • 2.125"/1.75" Valves
  • 1.55" Valve Springs
  • Max Lift: .600"
  • 3/8" Rocker Stud
  • No Exhaust Crossover Port
  • Assembled
  • Sold Individually

    The Edelbrock 60049 Performer RPM Super Stock cylinder head is designed for 400, 430, and 455 c.i.d. Buick engines. This cylinder head includes an adjustable rocker stud and guide plate set-up for use with small-block Chevy-style adjustable 1.6:1 ratio rockers. The large 68cc combustion chambers produce a 9.2:1 compression ratio with stock pistons. Performer RPM head is perfect for street performance, daily drivers, street rods, and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution-controlled vehicles only.


    Technical Notes: Sold individually. Requires the use of hardened pushrods. Bare heads will have valve guides and seats installed but will require final sizing and valve job to match the valves you will be using. Match with Edelbrock head gasket sets.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCylinder Head
BrandEDELBROCK
Package Height8.9
Package Width11.1
Package Length26.0
Weight35.81 PG
Retainers IncludedYes
Guideplates IncludedYes
Oiling StyleThrough pushrod
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.125 in (53.975 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.75 in (44.45 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeBuick 400-455
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle15
Maximum Valve Lift0.6 in (15.24 mm)
Valve Seat MaterialDuctile iron
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)130
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)68
Machined For O-RingNo
PreparationBolt On (Not Required)
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)215
Cnc-Machined Exhaust RunnerNo
Vendor Part Number60049
Package Qty1
Package TypeEA
