Vehicle Info NeededEDELBROCKPART NUMBER: 350-60079

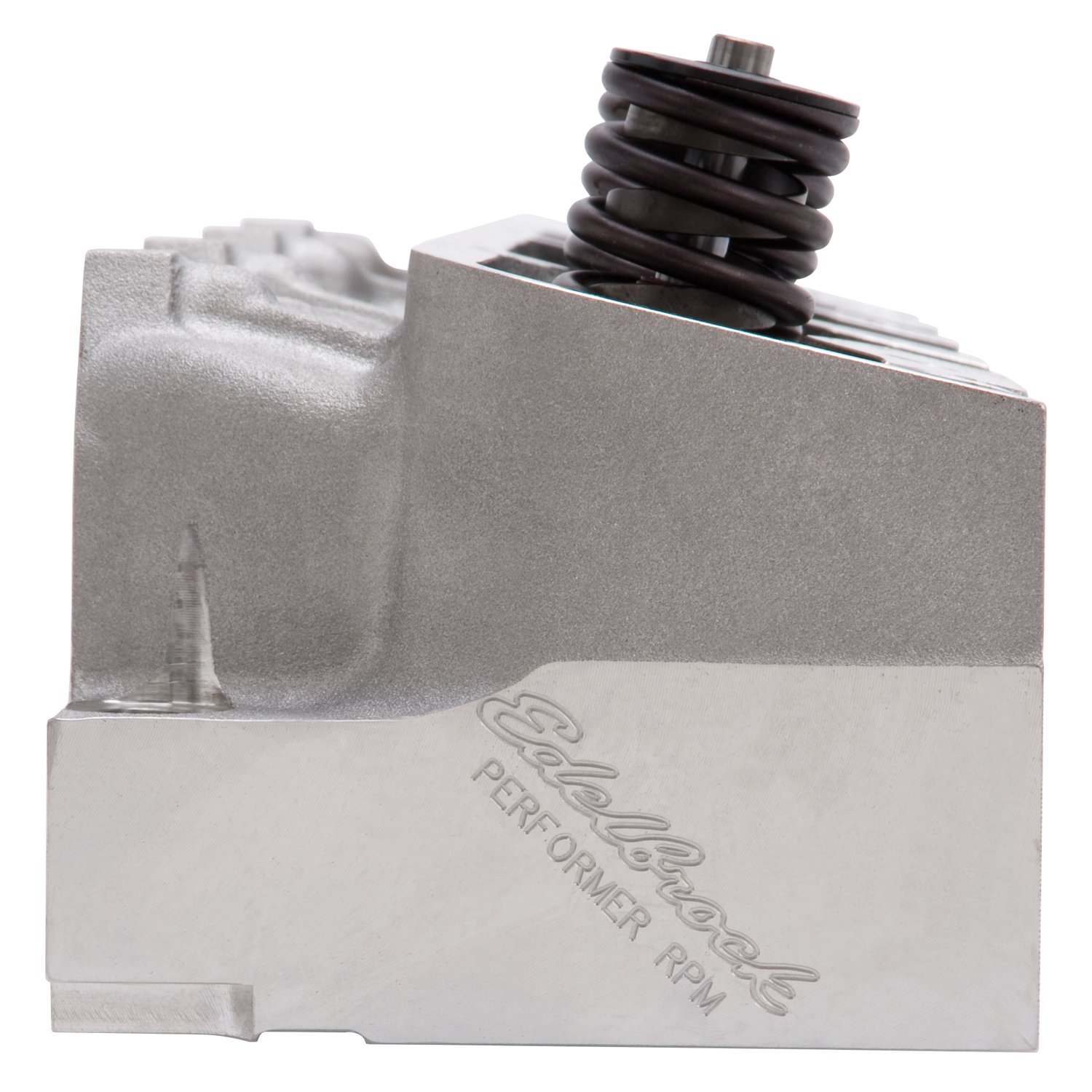

Performer RPM FE 390-428 Cobra Jet Aluminum Cylinder Head for Ford FE
$1,17595
2 left in stock
Ships Today
Lowest Price GuaranteePerformer RPM FE Aluminum Heads
- Performer RPM FE Head
- 1961-1976 Ford 427 Low/Medium Riser
- Valve Springs for Hydraulic Flat Tappet
- Valve Size: 2.09"/1.66"
- Port Volume: 170cc/125cc
- 76cc Combustion Chambers
- Max Lift: .600"
- Assembled, Sold Individually
Note: 72cc chamber heads have both vertical and diagonal exhaust bolt patterns. 76cc heads have vertical exhaust bolt pattern only.
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Combustion Chamber Volume: 72cc Intake Runner Volume: 170cc Exhaust Runner Volume: 125cc Intake Valve Diameter: 2.09' Exhaust Valve Diameter: 1.66' Valve Stem Diameter: 3/8" Valve Guides: Manganese bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.55" Valve Spring Maximum Lift: .600" Rocker Stud: N/A Guideplate: N/A Pushrod Diameter: 3/8 Valve Angle: 13° Exhaust Port Location: Stock Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .100' 88 64 .200' 153 113 .300' 195 148 .400' 233 171 .500' 265 183 .600' 270 200 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.6
Package Width11.1
Package Length26.1
Weight31.45 PG
Retainers IncludedYes
Guideplates IncludedNo
Oiling StyleThrough head
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.09 in (53.086 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Retainer MaterialSteel
Cnc-Machined Combustion ChamberYes
Exhaust Valve Diameter1.66 in (42.164 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeFord 390-428
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle13
Maximum Valve Lift0.6 in (15.24 mm)
Valve Seat MaterialDuctile iron
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)125
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)76
Machined For O-RingNo
PreparationBolt On (Not Required)
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Vendor Part Number60079
Package Qty1
Package TypeEA
