Made in USA

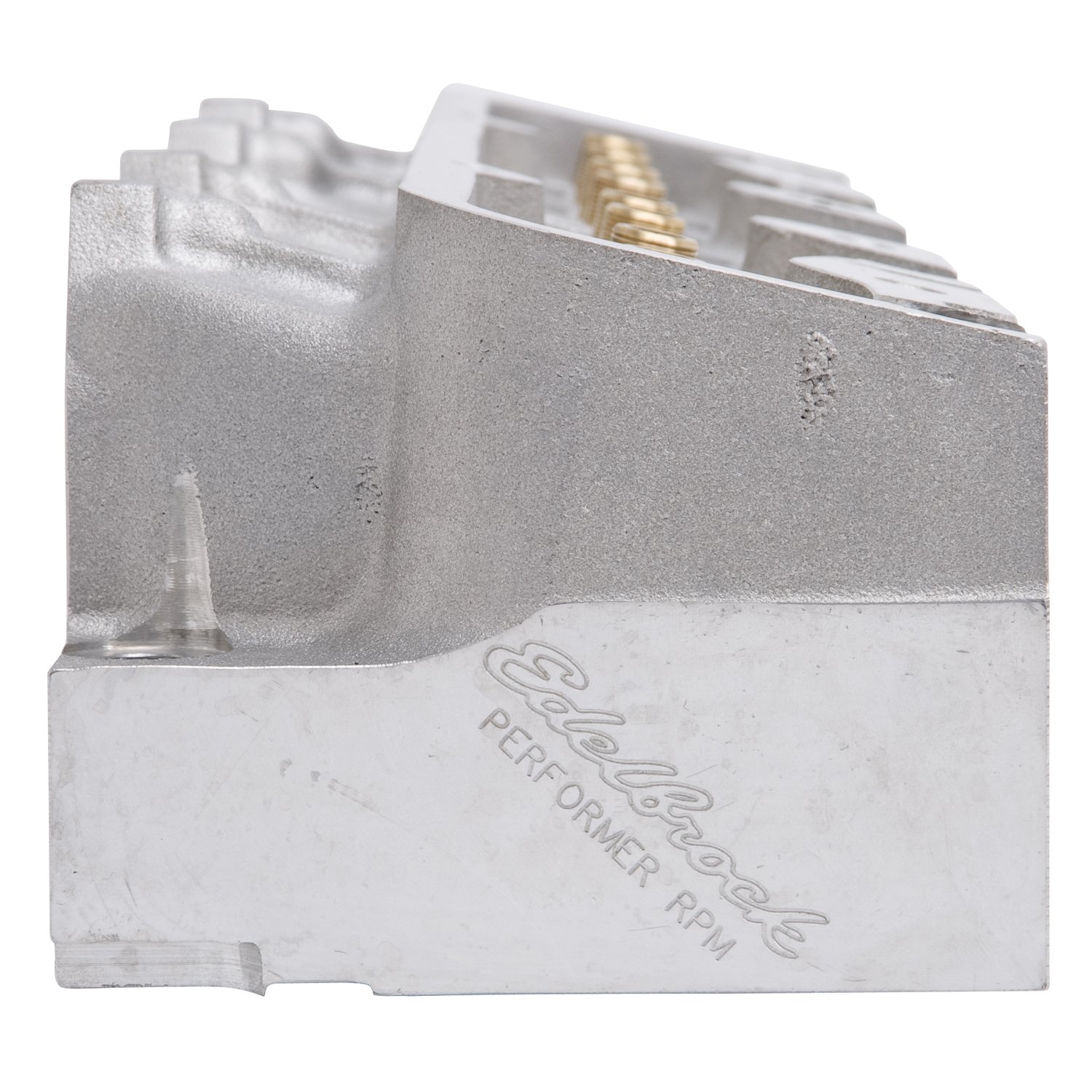

Performer RPM FE 390-428 Cobra Jet Aluminum Cylinder Head for Ford FE
Product Discontinued
EDELBROCKPART NUMBER: 350-60089

Performer RPM FE 390-428 Cobra Jet Aluminum Cylinder Head for Ford FE

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Performer RPM FE Aluminum Heads
    Performer RPM FE Head
  • 1961-1976 Ford 427 Low/Medium Riser
  • Port Volume: 170cc/125cc
  • 76cc Combustion Chambers
  • Bare Head, Sold Individually

    Note: 72cc chamber heads have both vertical and diagonal exhaust bolt patterns. 76cc heads have vertical exhaust bolt pattern only.

    Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.

    Combustion Chamber Volume:72cc
    Intake Runner Volume:170cc
    Exhaust Runner Volume:125cc
    Intake Valve Diameter:2.09'
    Exhaust Valve Diameter:1.66'
    Valve Stem Diameter:3/8"
    Valve Guides:Manganese bronze
    Deck Thickness:5/8'
    Valve Spring Diameter:1.55"
    Valve Spring Maximum Lift:.600"
    Rocker Stud:N/A
    Guideplate:N/A
    Pushrod Diameter:3/8
    Valve Angle:13°
    Exhaust Port Location:Stock
    Spark Plug Fitment:14mm x 3/4' Reach,
    Gasket Seat


    Valve LiftIntakeExhaust
    .100'8864
    .200'153113
    .300'195148
    .400'233171
    .500'265183
    .600'270200
    .700'N/AN/A
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Direct bolt-on for 1961-76 Ford 390-427-428 V8. Complete heads include stainless steel 2.09'' intake and 1.66'' exhaust valves to clear the 4.050'' bores on a 390ci engines. These 428 Cobra Jet-sized valves promote excellent flow for streetable power. #350-60089 can be machined to accept 2.19'' intake and 1.73'' exhaust valves if desired. Rocker shaft mounting holes and exhaust bolt holes are heli-coiled for strength. Rocker shaft stud kit 350-6009 is highly recommended, it eliminates wearing of the threads and possibility of bottoming the rocker shaft bolts in the head. Use head bolt kit #350-8557. 390 GT exhaust will not fit.

    Show More

Part TypeCylinder Head
Product LineEdelbrock Performer RPM Heads for Ford Big Block FE
BrandEDELBROCK
Package Height8.7
Package Width11.0
Package Length26.0
Weight26.4 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 390-428
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough head
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle13
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.09 in (53.086 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)125
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)76
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.66 in (42.164 mm)
Vendor Part Number60089
Package Qty1
Package TypeEA
