AMC
- NHRA Stock/Super Stock Legal Cylinder Head
- 1967-1991 AMC 343-401ci
- Port Volumes: 185cc/70cc
- 54cc Combustion Chambers
- No Exhaust Crossover Port
- Bare, Sold Individually
Chamber Volume: 54cc
Deck Height: 5/8"
Intake Volume: 185cc
Exhaust Port Volume: 70cc
Valve Sizes Int./Exh.: 2.02 / 1.60
Valve Guide Included: Yes
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

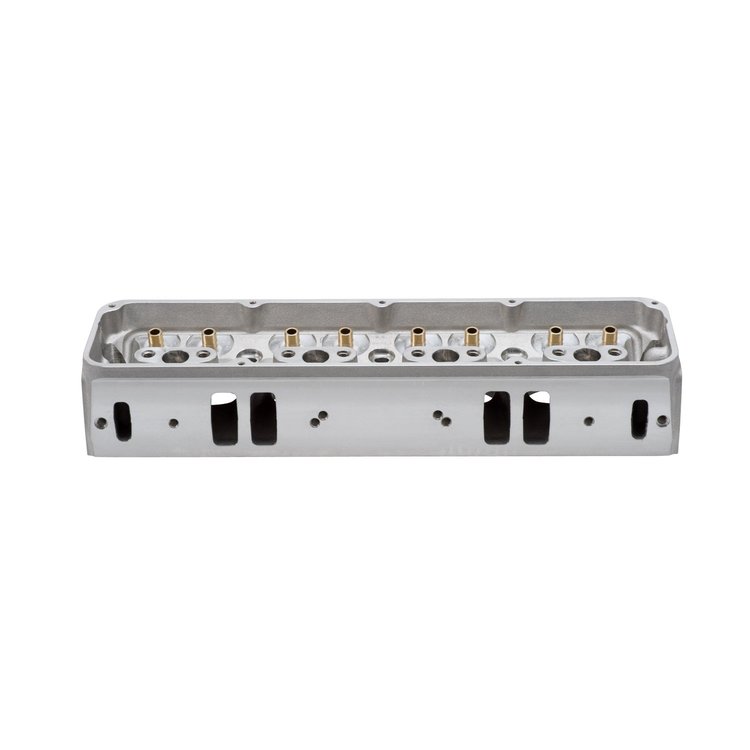

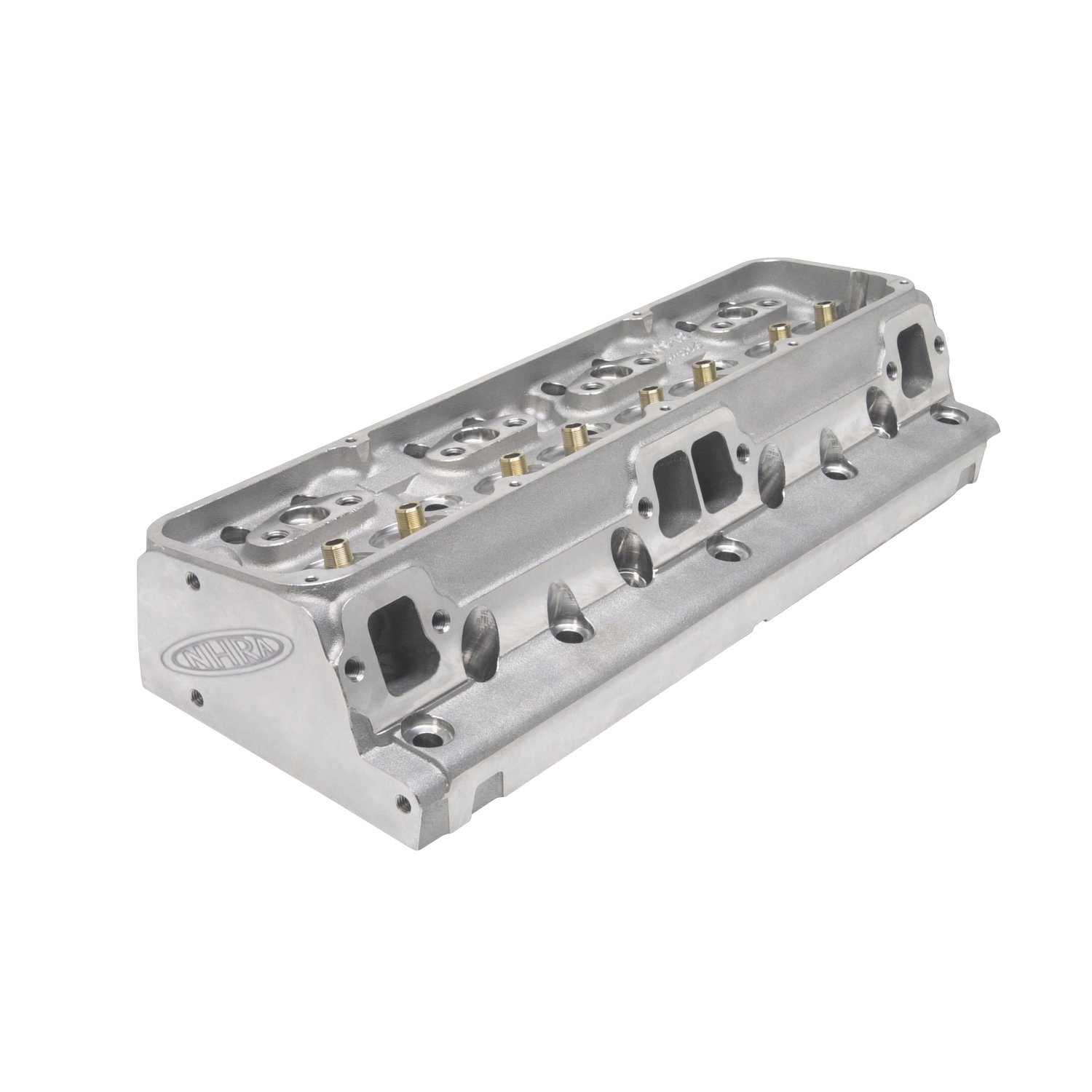

NHRA legal Performer RPM aluminum cylinder heads for Stock and Super Stock racing classes. These heads are similar to Edelbrock RPM cylinder heads, however the NHRA Legal heads do not have any machining or hand grinding done on the ports & chambers, except for the seat guide bores. Heads feature the NHRA logo on the ends for easy identification. Heads are sold individually. Made In The USA!Part TypeCylinder Head
Product LineEdelbrock Performer RPM NHRA Legal Heads
BrandEDELBROCK
Package Height8.5
Package Width11.0
Package Length11.0
Weight27.3 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionN/A
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeAMC 290-401
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough head
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle18
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageRacing
Valve Seat Machine Style3-angle
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)70
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)54
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)185
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number60107
Package Qty1
Package TypeEA
