Vehicle Info NeededEDELBROCKPART NUMBER: 350-60119

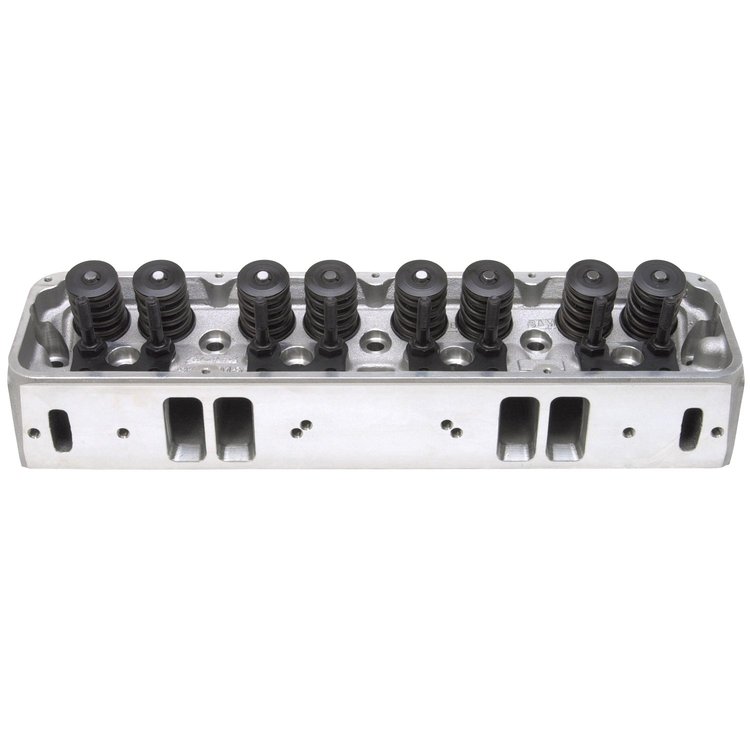

Performer RPM Cylinder Head AMC/Jeep
$1,50595
5 left in stock
Ships Today
Lowest Price GuaranteeAMC/Jeep Performer RPM Aluminum Cylinder Heads
- Performer RPM Cylinder Head
- 1967-91 AMC 343-401ci
- Hydraulic Flat Tappet Valve Springs
- Port Volumes: 185cc/70cc
- Valve Size: 2.02"/1.60"
- 54cc Combustion Chambers
- No Exhaust Crossover Port
- Max Lift: .580"
- Assembled, Sold Individually
- Out-of-the-Box Bolt-On Performance
- Hand-Blended Intake and Exhaust Bowls
- CNC-Matched Intake/Exhaust Ports in Std Location
- Thicker Deck Surfaces than Other Brands
- 54cc Dual-Quench Combustion Chamber
- Offers Improved Mid To High Lift Flow
Valve Lift Intake Exhaust .100' 65 52 .200' 130 96 .300' 192 127 .400' 235 163 .500' 258 182 .600' 260 190 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height7.2
Package Width10.3
Package Length22.5
Weight33.29 PG
Retainers IncludedYes
Guideplates IncludedYes
Oiling StyleThrough head
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.02 in (51.308 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedYes
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeAMC 290-401
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle18
Maximum Valve Lift0.58 in (14.732 mm)
Valve Seat MaterialDuctile iron
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)70
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)54
Machined For O-RingNo
PreparationBolt On (Not Required)
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)185
Cnc-Machined Exhaust RunnerNo
Vendor Part Number60119
Package Qty1
Package TypeEA
