Vehicle Info NeededEDELBROCKPART NUMBER: 350-60189

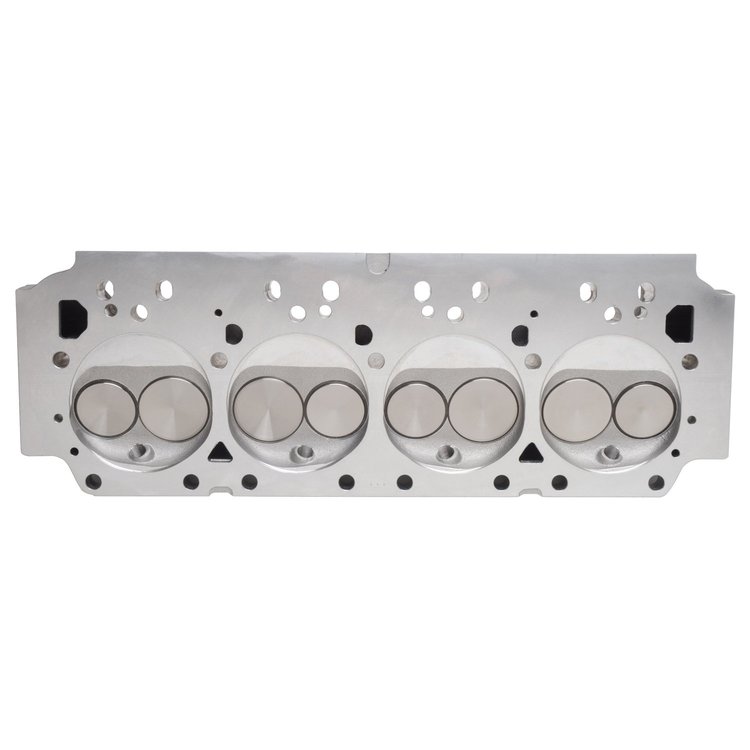

Performer RPM Cylinder Head for Big Block Chrysler
$89436$1117.95You Save$223.59
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeBig Block Chrysler Performer RPM 88cc Aluminum Cylinder Heads
- 1961-1979 Big Block Chrysler 361-440ci
- Valve Springs for Hydraulic Flat Tappet
- Valve Size: 2.14"/1.81"
- Port Volume: 210cc/70cc
- 88cc Combustion Chambers
- Max Lift: .600"
- Assembled, Sold Individually
Designed for 1961-1979 Chrysler 361-440 Wedge engines. Angled spark plugs for superior combustion.
Technical Notes:
Not Compatible with hydraulic roller camshafts. Vacuum advance distributor may not clear cylinder head. 88cc chambers are machined .100" for clearance with quench dome style pistons. Recommended spark plugs are Champion RC12YC or equivalent 14mm x ¾" reach with flat gasket seat.Combustion Chamber Volume: 88cc Intake Runner Volume: 210cc Exhaust Runner Volume: 70cc Intake Valve Diameter: 2.14' Exhaust Valve Diameter: 1.81' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.55' Valve Spring Maximum Lift: 0.600' Rocker Stud: N/A Guideplate: N/A Pushrod Diameter: 3/8' Valve Angle: 15° Exhaust Port Location: Stock Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket Seat
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2OValve Lift .100" .200" .300" .400" .500" .600" .700" Intake 79 143 207 256 278 291 292 Exhaust 70 126 160 188 206 217 223 Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.7
Package Width11.6
Package Length26.0
Weight32.26 PG
Retainers IncludedYes
Guideplates IncludedNo
Oiling StyleThrough head
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Spark Plug StyleAngled
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.14 in (54.356 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.81 in (45.974 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeMopar 440
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle15
Maximum Valve Lift0.6 in (15.24 mm)
Valve Seat MaterialDuctile iron
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)70
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)88
Machined For O-RingNo
PreparationBolt On (Not Required)
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)210
Cnc-Machined Exhaust RunnerNo
Vendor Part Number60189
Package Qty1
Package TypeEA
