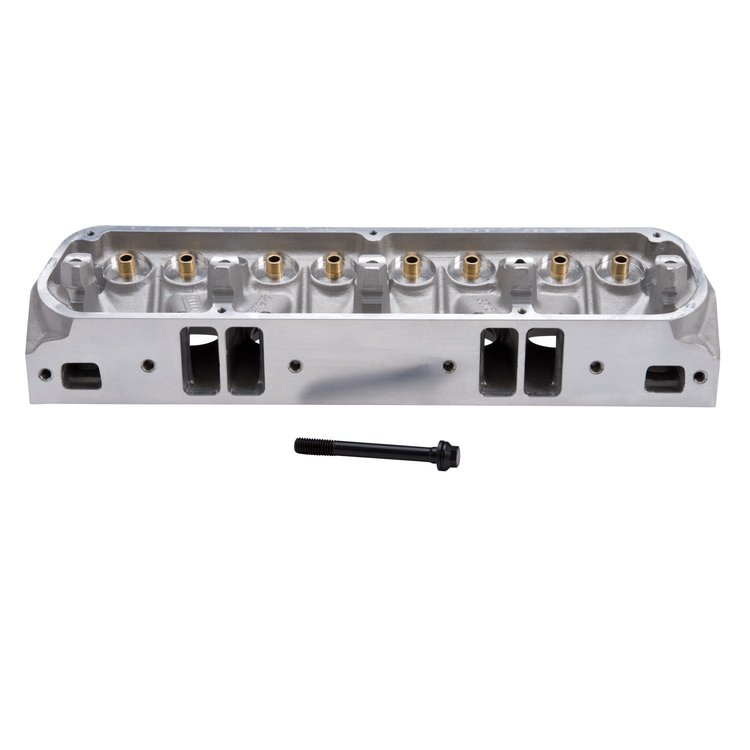

Performer RPM Cylinder Head for Chrysler 340 Small Block

Name: Performer RPM Cylinder Head for Chrysler 340 Small Block
Brand: EDELBROCK
SKU: 350-60199
Price: 571.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

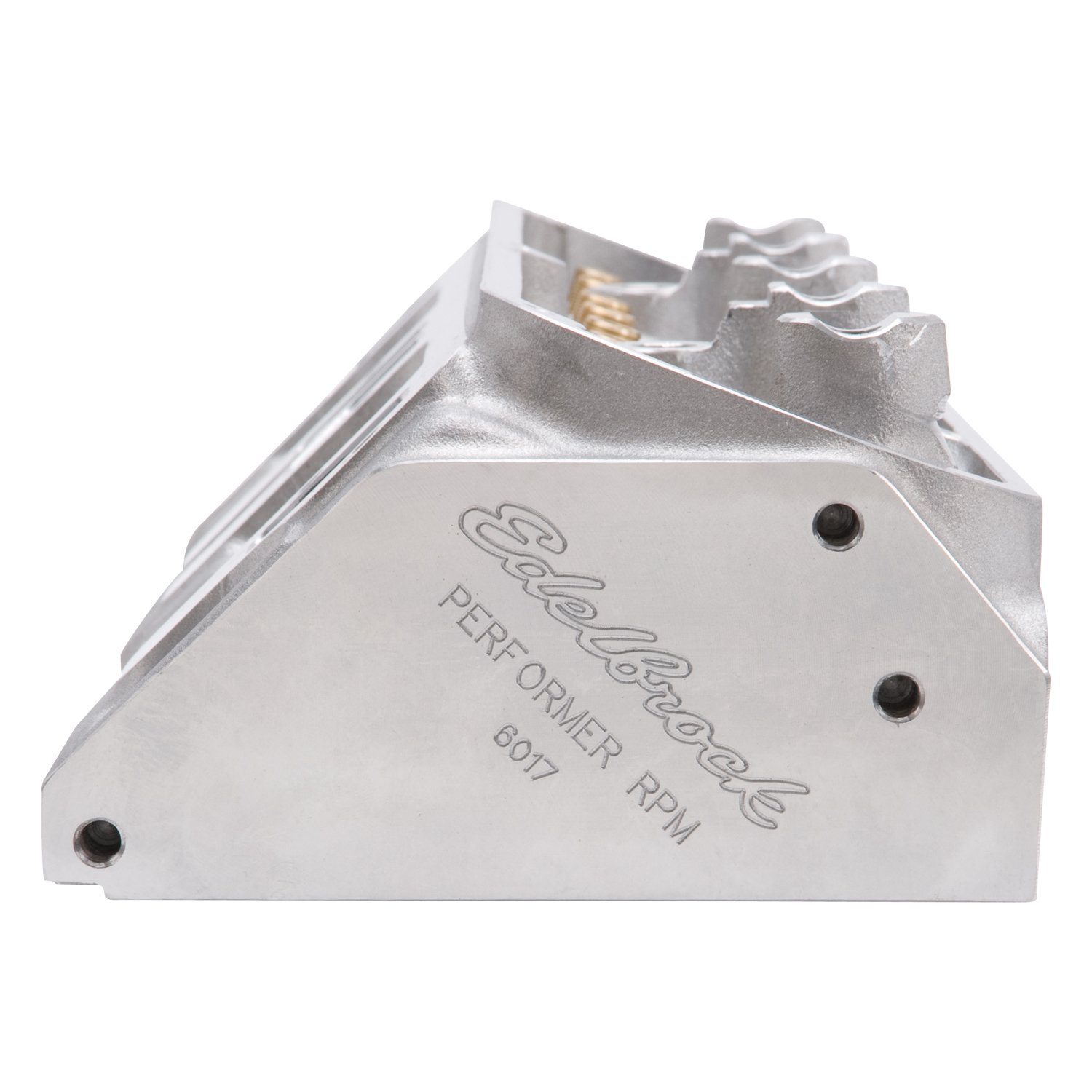

Small Block Chrysler Performer RPM 65cc Aluminum Cylinder Heads

1968-1973 Chrysler Small Block 340ci
Port Volume: 171cc/77cc
65cc Combustion Chambers

Bare, Sold Individually

Designed for high-performance street, strip, and marine, these heads have the same features as #350-6076 and #350-6077 but the chambers have been machined .060" for clearance with early high compression engines. The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads.

Tech Tip
To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs, such as the RC12YC (P/N 192-49776). They are 0.230' shorter than conventional spark plugs and have a 5/8' hex for easier access.

Combustion Chamber Volume:	65cc
Intake Runner Volume:	171cc
Exhaust Runner Volume:	77cc
Intake Valve Diameter:	2.02'
Exhaust Valve Diameter:	1.60'
Valve Stem Diameter:	11/32'
Valve Guides:	Manganese Bronze
Deck Thickness:	5/8'
Valve Spring Diameter:	1.46'
Valve Spring Maximum Lift:	0.575'
Rocker Stud:	N/A
Guideplate:	Hardened Steel
Pushrod Diameter:	5/16'
Valve Angle:	18°
Exhaust Port Location:	Stock
Spark Plug Fitment:	14mm x 3/4' Reach, Gasket Seat

Valve Lift	Intake	Exhaust
.100'	69	64
.200'	129	108
.300'	188	142
.400'	232	171
.500'	249	183
.600'	251	190
.700'	N/A	N/A
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
