Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

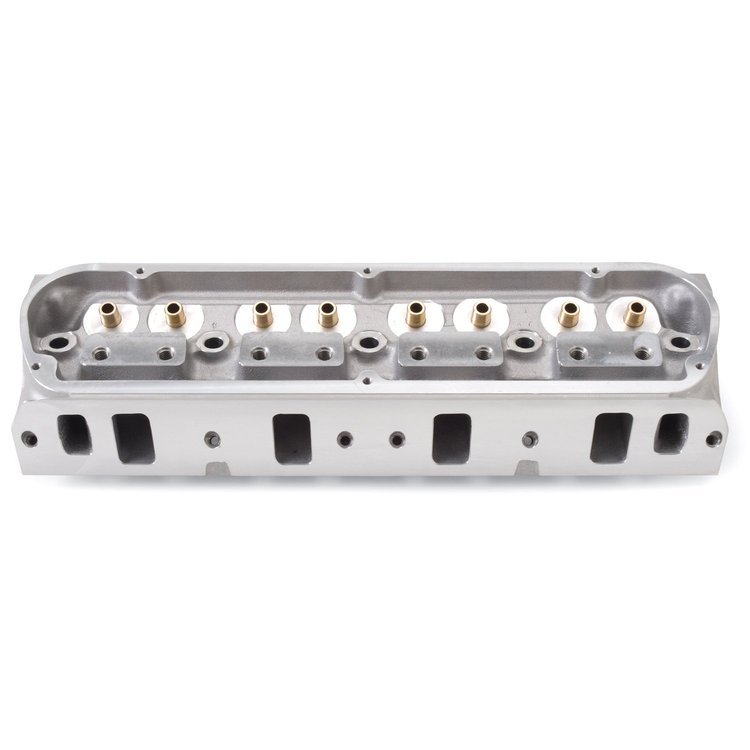

Ford
- Small Block Ford 289-351w
- SCCA Accepted Cylinder Heads
- Port Volumes: 170cc/60cc
- 60cc Combustion Chambers
- 3/8" Rocker Stud
- Bare, Sold Individually
- Designed Exclusively For SCCA
- Manufactured From A356 Aluminum
- Heat Treated To T6 Specs
- Manganese-Bronze Valve Guides
- Chamber Volume: 60cc
- Deck Height: 5/8"
- Intake Volume: 170cc
- Exhaust Port Volume: 60cc
- Valve Guides Included
- Heli-Coil inserts in the intake, exhaust and rocker stud thread holes
- Not machined for heat crossover or air injection
Aftermarket 289/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.8
Package Width11.1
Package Length25.9
Weight26.42 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 289-351W
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle20
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageCompetition
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)60
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)60
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Vendor Part Number602479
Package Qty1
Package TypeEA
