This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

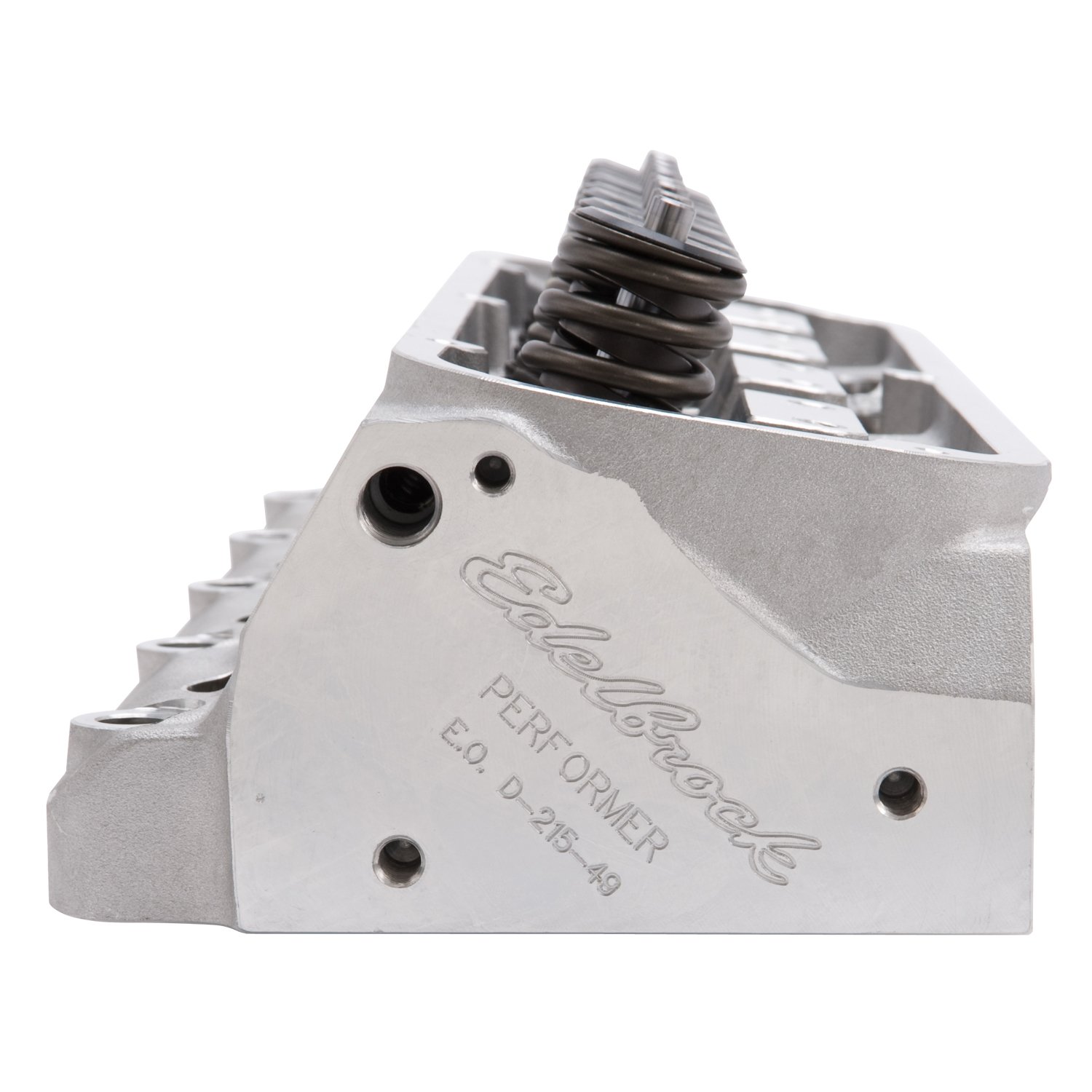

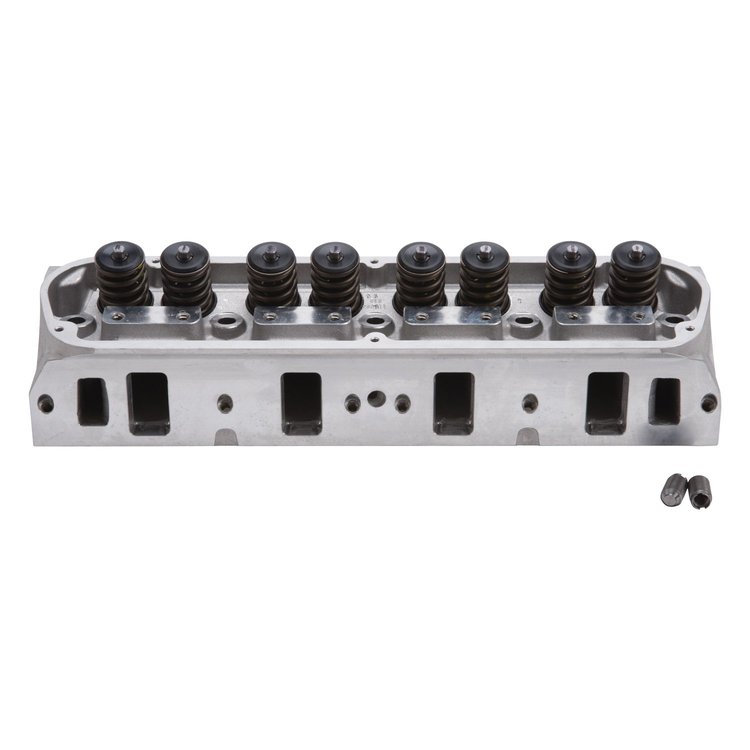

- Performer Aluminum Cylinder Head
- Ford 5.0L/5.8L
- 1.900'' Int/1.600'' Exh Valves
- Machined for Fel-Pro Loc Wire Gasket
- Assembled Head, Sold Individually
Note: Aftermarket 286/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Edelbrock Performer Series aluminum cylinder heads are specifically designed for performance street use. These heads are 50-state legal and provide excellent bolt-on performance for 1982-95 5.0L and 5.8L Ford V8 engines. These heads are designed to accept 1982-95 5.0L V8 pedestal mount rocker arms and valvetrain.
Show More
Note: 1986 5.0L pistons must be notched for valve clearance. These heads will not accept rail rockers. The 5.0L requires Head Bolt Bushings (350-9680).
All bare heads come with valve guides and seats installed, but these heads will require final sizing and a valve job to match the valves being used.
| Combustion Chamber Colume | 60cc |
| Intake Runner Volume | 170cc |
| Exhaust Runner Volume | 60cc |
| Intake Valve Diameter | 1.90" / 2.02" |
| Exhaust Valve Diameter | 1.60" |
| Valve Stem Diameter | 11/32" |
| Valve Guides | Manganese Bronze |
| Deck Thickness | 5/8" |
| Valve Spring Diameter | 1.46" |
| Valve Spring Maximum Lift | .575" |
| Rocker Stud | N/A |
| Guideplate | N/A |
| Pushrod Diameter | 5/16" |
| Valve Angle | 20° |
| Exhaust Port Location | Stock |
| Spark Plug Fitment | 14mm x 3/4 reach, flat gasket seat |
Made In The USA!
