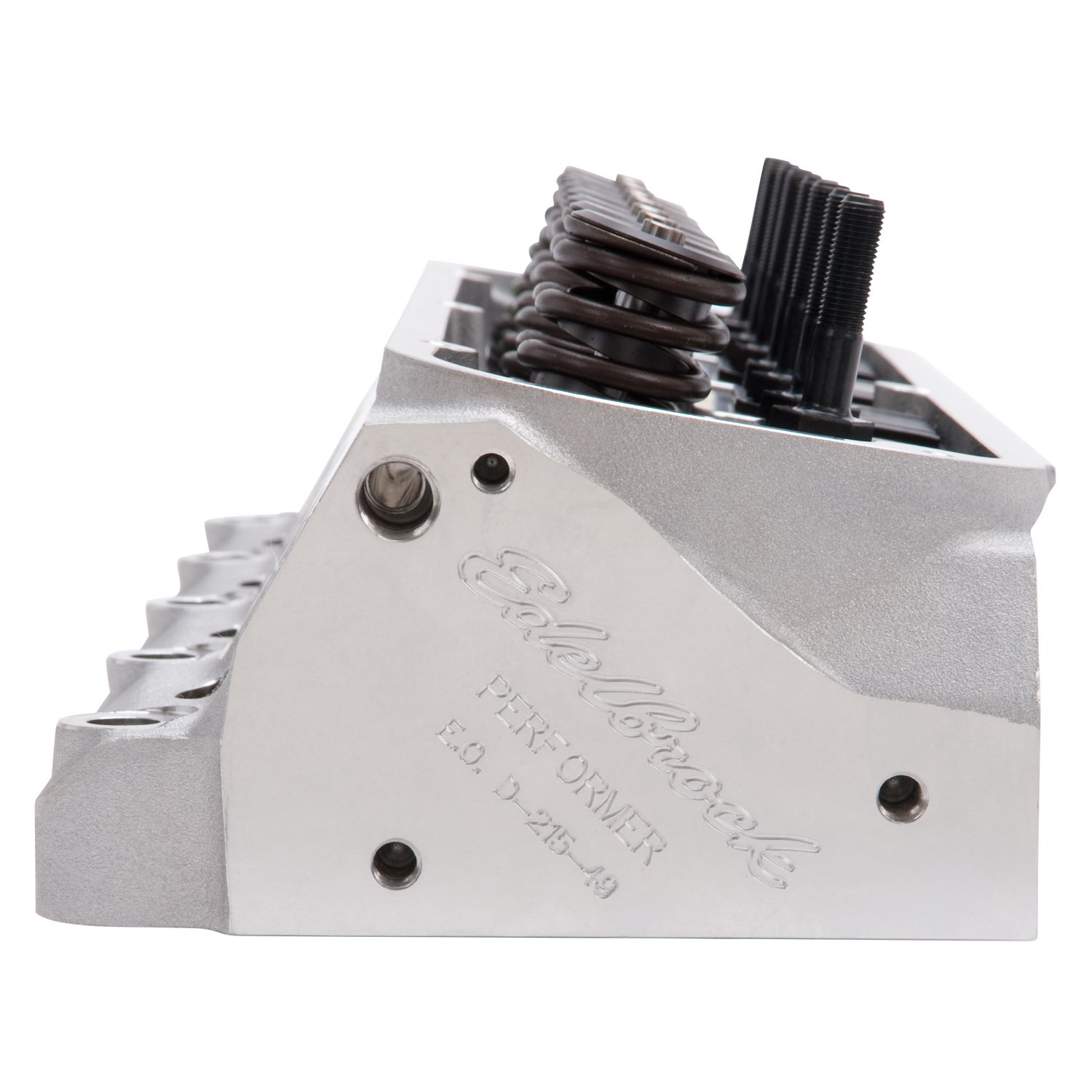

Performer Aluminum Cylinder Head for Small Block Ford
This product is currently not available. Please call customer service for assistance at 1-800-345-4545.
- 50-State Legal for 1965-1995 Ford 289, 302, & 351W
- Valve Springs for Hydraulic Flat Tappet
- Valve Size: 1.90"/1.60"
- Port Volume: 170cc/60cc
- 60cc Combustion Chamber
- Max Lift: .575"
- Assembled, Sold Individually

Edelbrock Performer 50-state street legal heads provide outstanding bolt-on performance for street high-performance 1965-95 289, 302 and 351 Windsor V8s. Capable of 300+ horsepower when matched with the Edelbrock Performer Power Package. Performer heads #350-6032 come with 1.90' intake valves for use with stock pistons. Top-quality 3/8' rocker studs are included on complete heads. Bronze guides and hardened interlocking seats are included on all heads. Will not accept rail rockers. Hardened pushrods required.
Note: Aftermarket 289/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Valve Lift Intake Exhaust .100' 72 57 .200' 132 104 .300' 183 142 .400' 216 159 .500' 245 170 .600' 249 174 .700' 244 175 Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
