Made in USA
Performer Aluminum Cylinder Head for Small Block Ford
Product Discontinued
EDELBROCKPART NUMBER: 350-60349

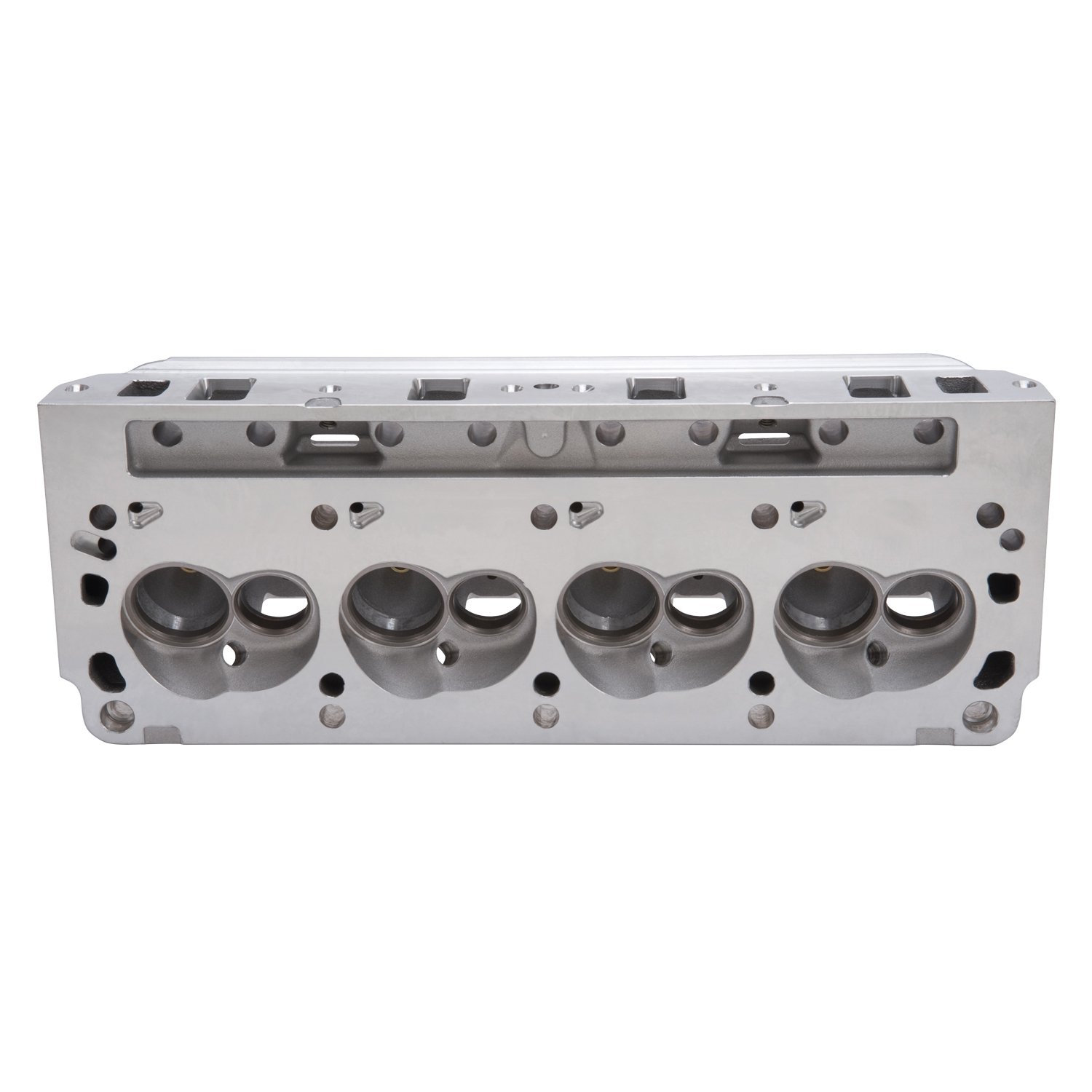

Performer Aluminum Cylinder Head for Small Block Ford

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Performer Aluminum Cylinder Heads - Bare
  • Small Block Ford
  • 50-State Legal for 1965-1995 289,302,351W
  • Valve Size: 2.02"/1.60"
  • Port Volume: 170cc/60cc
  • 60cc Combustion Chamber
  • Bare Head, Sold Individually

    Edelbrock Performer 50-state street legal heads provide outstanding bolt-on performance for street high-performance 1965-95 289, 302 and 351 Windsor V8s. Capable of 300+ horsepower when matched with the Edelbrock Performer Power Package. Performer heads #350-6035 have high-flow 2.02' intake valves for use with aftermarket pistons notched for valve clearance. Top-quality 3/8' rocker studs are included on complete heads. Bronze guides and hardened interlocking seats are included on all heads. Will not accept rail rockers. Hardened pushrods required.

    Note: Aftermarket 289/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).

    Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.

    Valve LiftIntakeExhaust
    .100'7057
    .200'128104
    .300'183142
    .400'216159
    .500'245170
    .600'255174
    .700'246175
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Edelbrock Performer Series aluminum cylinder heads are specifically designed for performance street use. These heads are 50-state legal and provide excellent bolt-on performance for 1965-95 289, 302 & 351-Windsor engines. The performer aluminum heads are available with either 1.90" or 2.02" intake valves. The 1.90" intake valves are for use with Stock Pistons, while the 2.02" intake valves are for use with pistons that are notched for valve clearance. Sold individually, two per engine required. Made In The USA!

    Note: Hardened pushrods are required (350-9632 flat tapped only). These heads will NOT accept rail rockers. Ford 289-302 engines require the use of head bolt bushings (350-9680). All bare heads come with valve guides and seats installed, but these heads will require final sizing and a valve job to match the valves being used.

    Show More
    Cylinder Head Specifications
    Combustion Chamber Colume60cc
    Intake Runner Volume170cc
    Exhaust Runner Volume60cc
    Intake Valve Diameter1.90" / 2.02"
    Exhaust Valve Diameter1.60"
    Valve Stem Diameter11/32"
    Valve GuidesManganese Bronze
    Deck Thickness5/8"
    Valve Spring Diameter1.46"
    Valve Spring Maximum Lift.575"
    Rocker Stud3/8"
    GuideplateHardended Steel
    Pushrod Diameter5/16"
    Valve Angle20°
    Exhaust Port LocationStock
    Spark Plug Fitment14mm x 3/4 reach, gasket seat
Part TypeCylinder Head
Product LineEdelbrock Performer Cylinder Heads for Small Block Ford
BrandEDELBROCK
Package Height7.38
Package Width10.44
Package Length22.25
Weight29.92 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle20
Valve Seat MaterialPowdered metal
Heat CrossoverYes
FinishCast Aluminum
Valve Springs IncludedNo
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedNo
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)60
Exhaust Port LocationStandard
TypeBare
Combustion Chamber Volume (Cc)60
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number60349
Package Qty1
Package TypeEA
